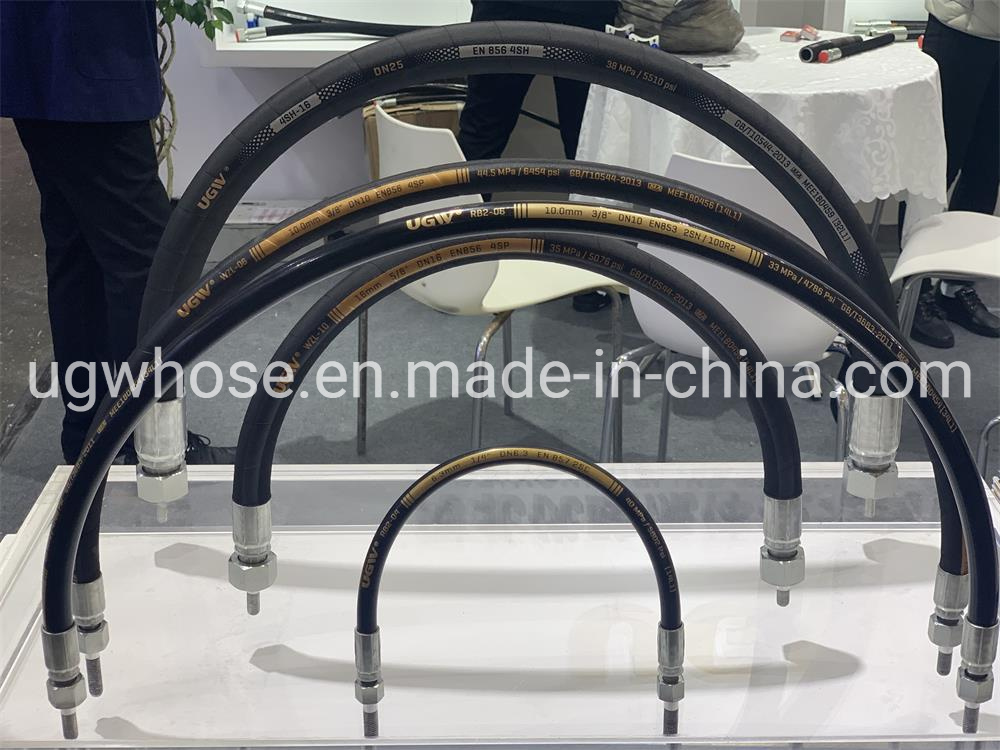

SAE100r2/DIN En 853 2sn American and German Standard Ugw Hydraulic Rubber Hose and Hose Fittings.
SAE100R2 /DIN EN 853 American Standard Hydraulic Rubber Hose Inner tube: NitrileReinforcement: two braid of high-tensile steel wireCover: Black Neoprene BlendTemperature Range: -40°F to 212&de......
Send Inquiry
Product Description
Reinforcement: two braid of high-tensile steel wire
Cover: Black Neoprene Blend
Temperature Range: -40°F to 212°F(-40ºCto 100ºC)
Application standards: EN853 2SN,GB3683.1 2SN,SAE J517 R1S, ISO 1436 2SN
Branding: 2SN-16-25mm 1''GB /T3683.1 SAE J517 EN853 W.P. 8.8Mpa(2390psi)
Application:
High-pressure hydraulic oil lines used in construction, machine tool and agriculture application using petroleum or water -based hydraulic fluids. Hose sizes 3/16-5/8''have a vacuum rating of 28 in Hg. Hose size3/4''-1''have a vacuum rating of 24 in Hg.
SAE 100 R2 technical data
| Items number | Hose I.D. | Hose O.D. | Max W.P. | Min B.P | Min.B.R | Weight | ||
| in | mm | Mpa | psi | Mpa | psi | mm | Kg/m | |
| 2SN-3 | 3/16 | 14.1 | 41.5 | 6019 | 165 | 23930 | 90 | 0.27 |
| 2SN-4 | 1/4 | 15.7 | 40.0 | 5801 | 160 | 23204 | 100 | 0.34 |
| 2SN-5 | 5/16 | 17.3 | 35.0 | 5076 | 140 | 20304 | 115 | 0.39 |
| 2SN-6 | 3/8 | 19.7 | 33.0 | 4786 | 132 | 19144 | 130 | 0.49 |
| 2SN-8 | 1/2 | 23.0 | 27.5 | 3989 | 110 | 15956 | 180 | 0.59 |
| 2SN-10 | 5/8 | 26.2 | 25.0 | 3625 | 100 | 14500 | 200 | 0.71 |
| 2SN-12 | 3/4 | 30.1 | 21.5 | 3118 | 86 | 12472 | 240 | 0.89 |
| 2SN-16 | 1 | 38.9 | 16.5 | 2393 | 65 | 9430 | 300 | 1.37 |
| 2SN-20 | 1 1/4 | 49.5 | 12.5 | 1813 | 50 | 7252 | 420 | 2.27 |
| 2SN-24 | 1 1/2 | 55.9 | 9.0 | 1305 | 36 | 5220 | 500 | 2.44 |
| 2SN-32 | 2 | 68.6 | 8.0 | 1160 | 32 | 4640 | 630 | 3.00 |

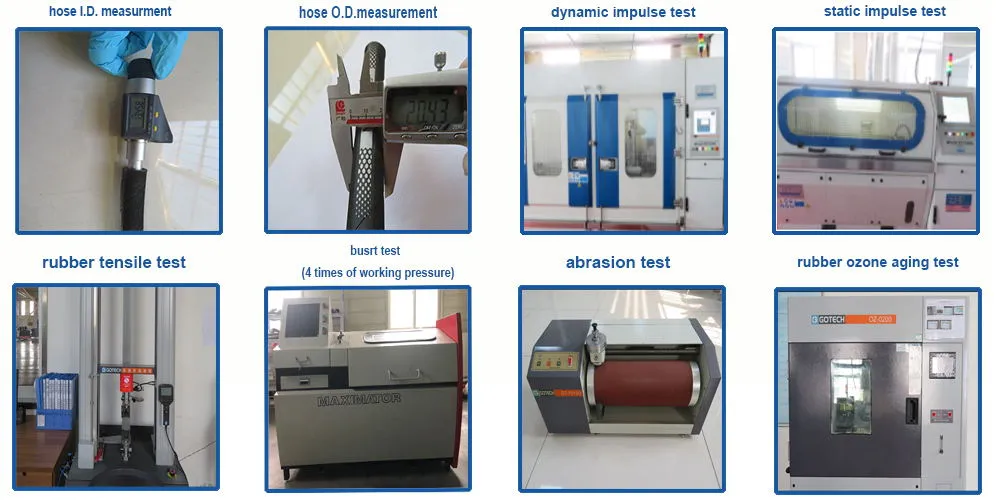

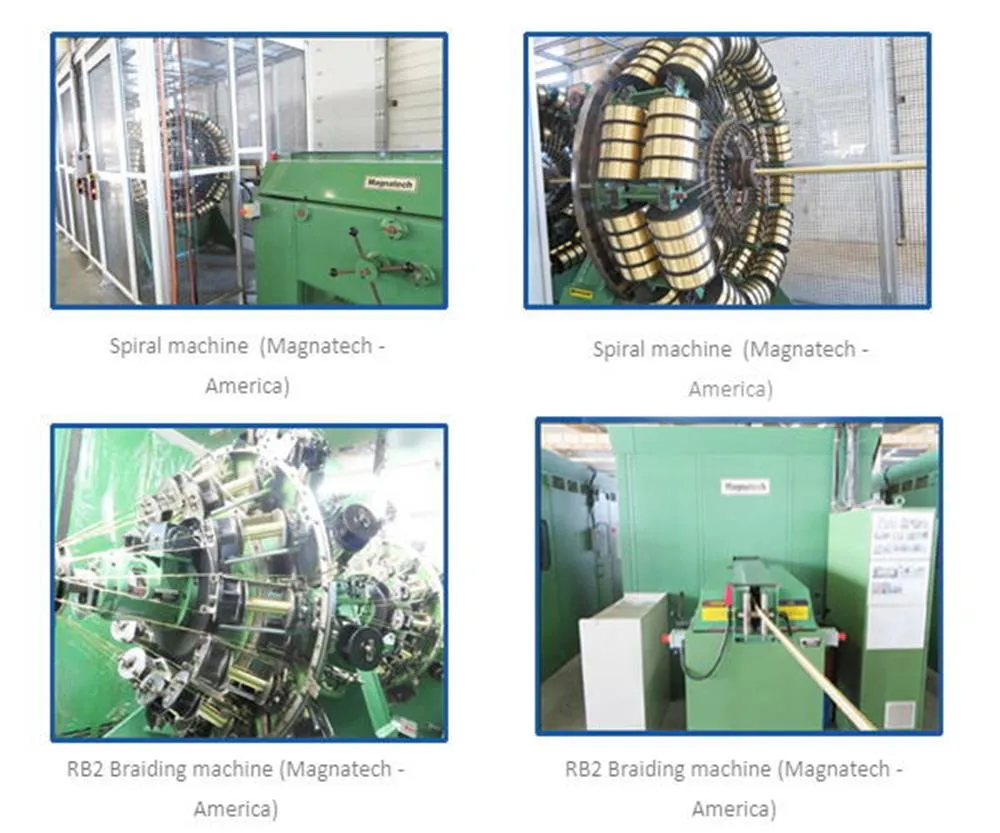

Quality control:
Our Lab:

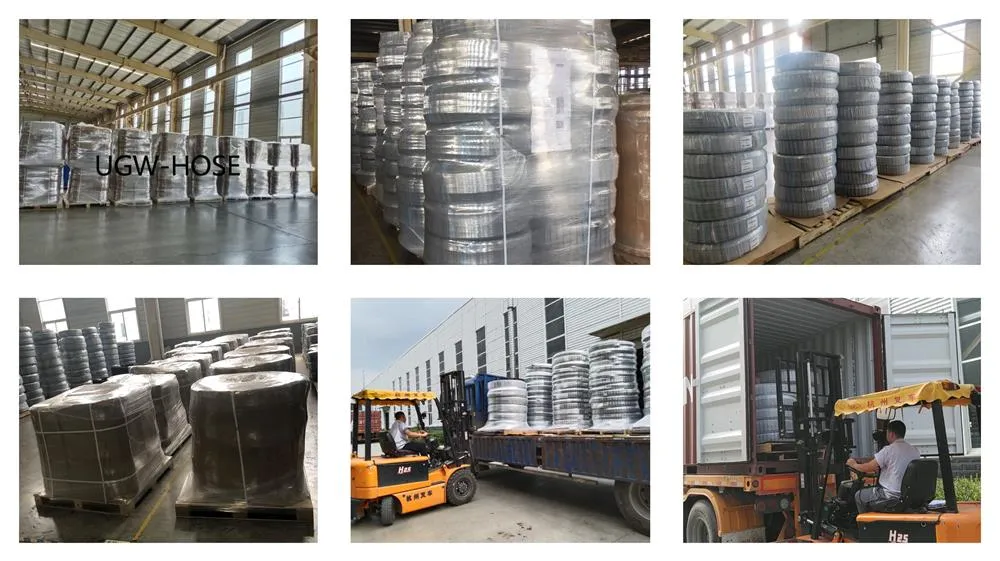

Packaging & Shipment:
Application:
Our Services
1.We can offer OEM Services
2.We can provide FREE SAMPPLE for our customers
3.We can crimp hose assembly for our customers.
4.We welcome clients to visit our factory leading to better understanding of our production.
