Product Description

Our main products: High pressure hydraulic hose, steel wire braid hose, steel wire spiral hose, Fabric braid hose, steam hose, sandblasting hose, Industrial and auto hose, special function hose, steel wire frame (suction) hose, metal hoseand assembly, etc. Kind of rubber products. We can customize rubber hoses such as extra long and special shapes, ranging in length from 20 to 200 meters upon customers' request.

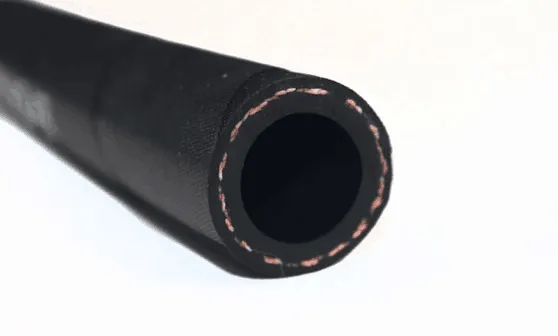

Customized Length PTFE Steam Hose for Iron SAE 100r14

Customized Length PTFE Steam Hose for Iron SAE 100r14

Details:

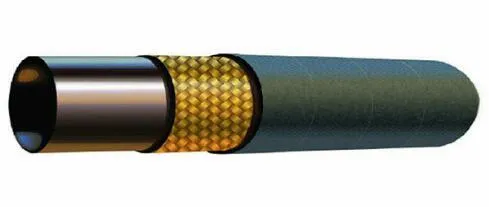

Tube : excellent heat-resistant rubber
Reinforcement : braided with copper facing wire or steel wire braid or
High strength synthetic cord
Cover Compound : excellent heat-resistant rubber
Temperature range : -40ºC to +180ºC

Customized Length PTFE Steam Hose for Iron SAE 100r14

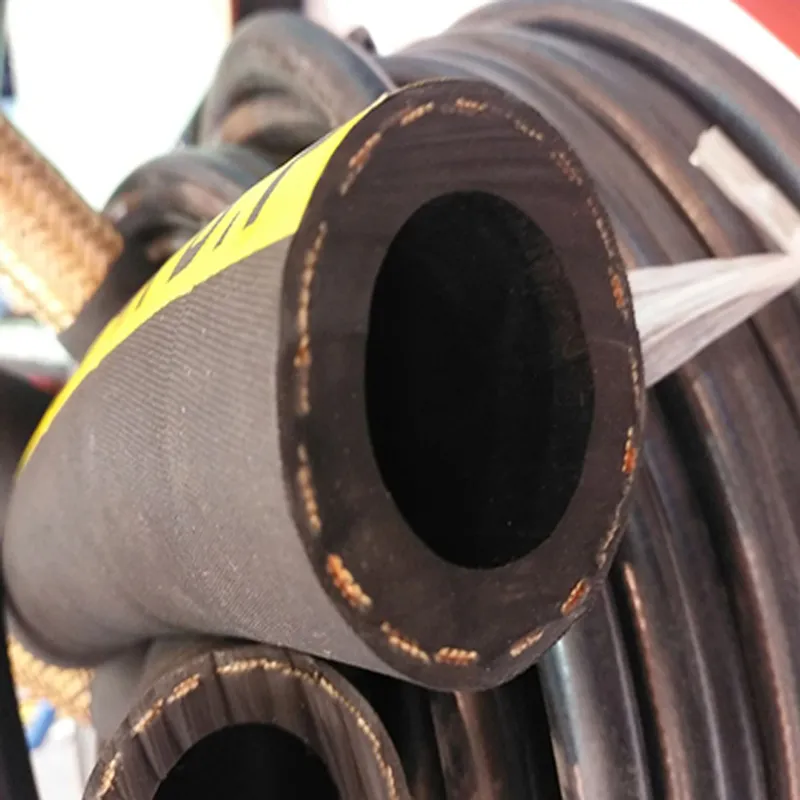

STEAM HOSE
DN	W/B	dash	Hose I.D		O.D	W.P.		B.P.		MINB.R	WEIGHT	LENGTH
			inch	mm	mm	Mpa	Psi	Mpa	Psi	mm	kg/m	m
10	1W	-6	3/8"	9.7±0.4	21.5±1.0	0.6	87	2.4	348	120	0.44	50
13	1W	-8	1/2"	12.9±0.6	24.5±1.0	0.6	87	2.4	348	130	0.53	50
16	1W	-10	5/8"	16.1±0.6	27.5±1.0	0.6	87	2.4	348	160	0.63	50
19	1W	-12	3/4"	19.2±0.6	30.5±1.0	0.6	87	2.4	348	190	0.71	20/40
25	1W	-16	1"	25.7±0.7	37.0±1.0	0.6	87	2.4	348	250	0.94	20/40
32	1W	-20	1-1/4"	32.2±0.8	44.0±1.0	0.6	87	2.4	348	320	1.29	20/40
38	1W	-24	1-1/2"	38.5±0.8	50.5±1.0	0.6	87	2.4	348	380	1.52	20/40
45	1W	-28	1-3/4"	45.5±0.8	57.5±1.0	0.6	87	2.4	348	450	1.65	20/40
51	1W	-32	2"	51.2±0.8	63.5±1.0	0.6	87	2.4	348	500	1.85	20/40
63	1W	-40	2-1/2"	64.1±1.0	77.5±1.0	0.6	87	2.4	348	630	2.43	20
10	2W	-6	3/8"	9.7±0.4	23.0±1.0	1.8	261	7.2	1044	120	0.60	50
13	2W	-8	1/2"	12.9±0.6	26.0±1.0	1.8	261	7.2	1044	130	0.70	50
16	2W	-10	5/8"	16.1±0.6	29.0±1.0	1.8	261	7.2	1044	160	0.86	50
19	2W	-12	3/4"	19.2±0.6	32.0±1.0	1.8	261	7.2	1044	190	0.90	20/40
25	2W	-16	1"	25.7±0.7	38.5±1.0	1.8	261	7.2	1044	250	1.37	20/40
32	2W	-20	1-1/4"	32.2±0.8	45.5±1.0	1.8	261	7.2	1044	320	1.80	20/40
38	2W	-24	1-1/2"	38.5±0.8	52.0±1.0	1.8	261	7.2	1044	380	2.00	20/40
45	2W	-28	1-3/4"	45.5±0.8	59.0±1.0	1.8	261	7.2	1044	450	2.41	20/40
51	2W	-32	2"	51.2±0.8	65.0±1.0	1.8	261	7.2	1044	500	2.55	20/40
63	2W	-40	2-1/2"	64.1±1.0	79.0±1.0	1.8	261	7.2	1044	630	2.95	20

We set up technological quality control system ,strict inspection standard ,and perfect after-sale service ,we passed ISO9001 certification and safety certificate of approval for mine products in Feb 2013.Our products are widely used in engineering machinery, coal mine, chemical ,metallurgy, oil, automobile, shipbuilding, transportation industries and so on. Our products can meet all the international standard: American SAE standard, Germany DIN standard and Japan JIS standard. Our products have been exported to American, Britain, Germany, Korea, Russia, Iran, India and many other countries in the world.

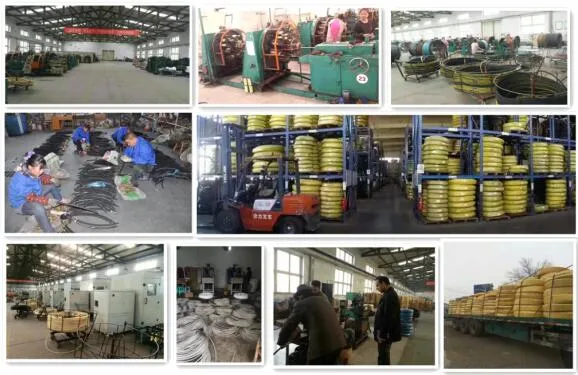

Our factory:

≡ FAQ

Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.

Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.

Q:Could we get free samples?
A: Yes. We can provide the free sample for you

Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.

Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers

Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
