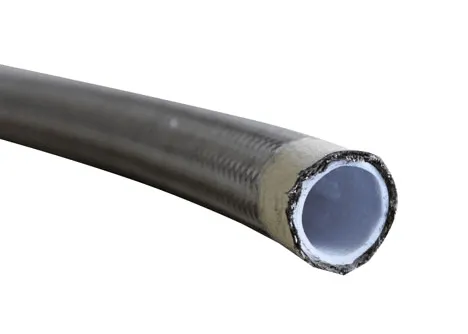

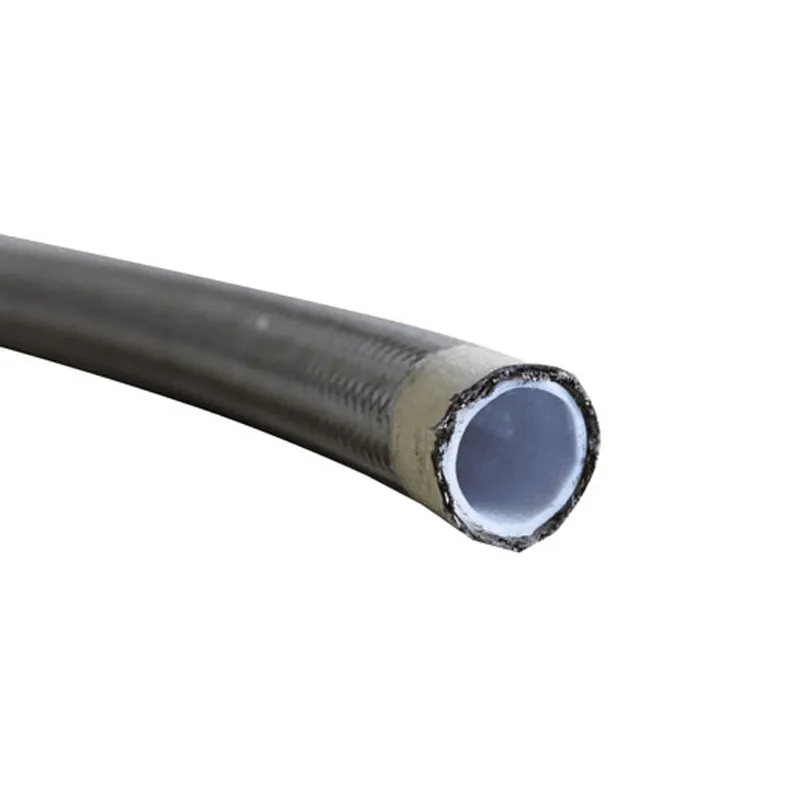

Super Flex Braided PTFE Fuel Oil Hose SAE 100r14
Our main products: High pressure hydraulic hose, steel wire braid hose, steel wire spiral hose, Fabric braid hose, steam hose, sandblasting hose, Industrial and auto hose, special function hose, steel wire frame (suction) hose, metal hoseand assembly, etc. Kind of rubber products. We can customize r......
Send Inquiry
Product Description
Our main products: High pressure hydraulic hose, steel wire braid hose, steel wire spiral hose, Fabric braid hose, steam hose, sandblasting hose, Industrial and auto hose, special function hose, steel wire frame (suction) hose, metal hoseand assembly, etc. Kind of rubber products. We can customize rubber hoses such as extra long and special shapes, ranging in length from 20 to 200 meters upon customers' request.

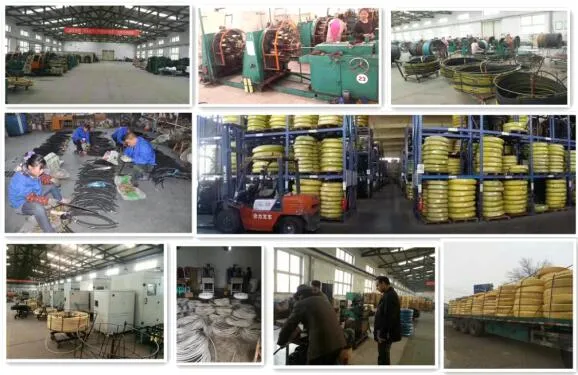

Our factory:
≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
If you are interested in our products or if you have special requirements,
Welcome to Contact Us With Any Enquiries!
KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Continuous service temperature range: -65°f / +400°f; -54°c / +204°c
Insert: Shf type
Tube: Polytetrafluorethylene
Cover: One stainless steel wire braid
APPLICATION
Petroleum base and synthetic base hydraulic fluids.
| Model no. | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| WB R14 3 | 3 | -2 | 1/8" | - | 6.7 | 275 | 4000 | 1100 | 16000 | 25 | 0.06 |
| WB R14 5 | 5 | -3 | 3/16" | - | 8.0 | 200 | 2900 | 800 | 11600 | 35 | 0.07 |
| WB R14 6 | 6 | -4 | 1/4" | - | 9.5 | 175 | 2500 | 700 | 10000 | 45 | 0.09 |
| WB R14 8 | 8 | -5 | 5/16" | - | 11.8 | 150 | 2200 | 600 | 8800 | 50 | 0.13 |
| WB R14 10 | 10 | -6 | 3/8" | - | 14.1 | 135 | 2000 | 540 | 8000 | 55 | 0.15 |
| WB R14 12 | 12 | -8 | 1/2" | - | 17.2 | 120 | 1750 | 480 | 7000 | 70 | 0.21 |
| WB R14 16 | 16 | -10 | 5/8" | - | 20.5 | 100 | 1450 | 400 | 5800 | 130 | 0.26 |
| WB R14 19 | 19 | -12 | 3/4" | - | 23.7 | 90 | 1300 | 360 | 5200 | 190 | 0.32 |
| WB R14 25 | 25 | -16 | 1" | - | 30.0 | 65 | 950 | 260 | 3800 | 270 | 0.45 |
Our factory:
≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
If you are interested in our products or if you have special requirements,
Welcome to Contact Us With Any Enquiries!
