Product Description

R1AT Wire Braided High Pressure Flexible Hydraulic Rubber Oil Hose

1.STRUCTURE

Continuous Service Temperature Range: -40°F / +212°F; -40°C / +100°C
Max Operating Temperature: 250°F 121°C
Tube: Oil Resistant Synthetic Rubber
Reinforcement: One High Tensile Steel Braid
Cover: Environment Resistant Synthetic Rubber
Applicable Specs: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT

2.KEY PERFORMANCE

EN/DIN And New Sae Rated Working Pressures
Appearance: Wrap( ID Less Than 25.4mm Smooth Cover)
Branding: Printing And Indelible Branding With Embossed Technology
Colour: Black, Red, Blue, Yellow, Green, Gray

3.APPLICATIONS

Medium Pressure Lines With Installation Constraints
Mineral Oils, Vegetable And Rape Seed Oils, Glycols And Polyglycol Based Oils, Synthetic Ester Based Oils, Oils In Aqueous Emulsion, Water.

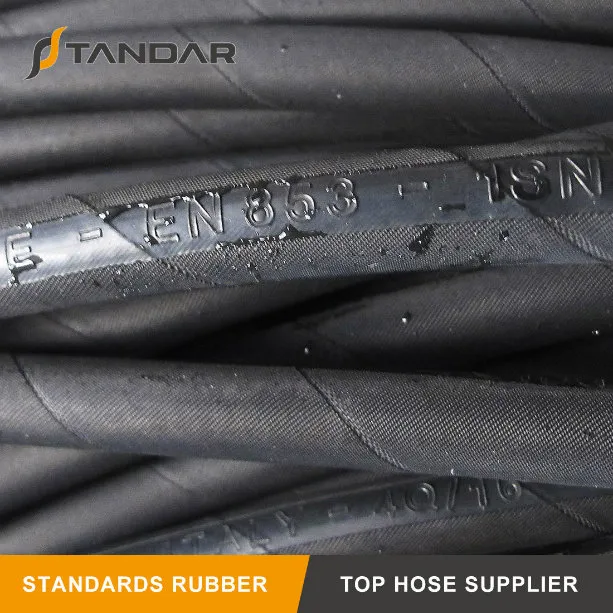

R1AT Wire Braided High Pressure Flexible Hydraulic Rubber Oil Hose

R1AT Wire Braided High Pressure Flexible Hydraulic Rubber Oil Hose

4.TEACHNICAL DATA

PART.REF.	HOSE SIZE I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
PART.REF.	DN	dash	inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
WB 1SN 5	5	-3	3/16"	9.5	11.5	250	3620	1000	14500	89	0.20
WB 1SN 6	6	-4	1/4"	11.2	13.2	225	3260	900	13050	100	0.22
WB 1SN 8	8	-5	5/16"	12.8	14.8	215	3110	850	12320	114	0.27
WB 1SN 10	10	-6	3/8"	15.1	17.1	180	2610	720	10440	127	0.34
WB 1SN 12	12	-8	1/2"	18.1	20.1	160	2320	640	9280	178	0.41
WB 1SN 16	16	-10	5/8"	21.3	23.3	130	1880	520	7540	200	0.51
WB 1SN 19	19	-12	3/4"	25.3	27.3	105	1520	420	6090	240	0.62
WB 1SN 25	25	-16	1"	33.1	35.1	88	1270	350	5070	300	0.93
WB 1SN 31	31	-20	1.1/4"	40.6	43.3	63	910	250	3620	419	1.25
WB 1SN 38	38	-24	1.1/2"	47.0	49.7	50	720	200	2900	500	1.60
WB 1SN 51	51	-32	2"	60.4	63.1	40	580	160	2320	630	2.20

ABOUT US
Shijiazhuang standards rubber products trading co., ltd is a highly professional and experienced manufacturer of rubber hoses in China.We have our own production base in Hengshui City, Hebei Province. We have specialized in this field over 20 years and always dedicated to the producing of rubber hoses in high quality, with a wide range of demands from multiple industries, including Engineering, Ocean, Mining, Chemicals plastics, Transportation, Oil, Metallurgy,ect.

Our products include:
Rubber Hose: hydraulic hose , industrial hose, hose fitting
Silicone hose: food and medical grade silicone hose, auto silicone tube
PVC hose: PVC layflat hose, PVC Helix Suction & Delivery Hose,
PVC Spiral Steel Wire Reinforced Hose,
PVC Fiber Braided Reinforced Hose
Automotive parts: A/C Hose, fuel hose,brake hose system

Standards Rubber' Service Overview
Standards rubber provides a full range of services to companies that need a reliable supply of custom rubber and plastic hose from China.
Our services accommodate all your needs in throughout designing sampling, testing, producing, quality controlling, certifying packaging warehousing, consolidating delivering and after-sales handing

DESIGN
Our team comprises members equipped with experiences in almost all fields related to design and development of custom hydraulic hose, industrial hose ,rubber automotive parts. if have any needs your new products or make further improvements, we are here to offer our support.

SAMPLING
It is often the case that goods bought from a Chinese supplier, especially for the first time, fall short of your expectation for one reason or another. Now, our sampling services save you from these worries!

PRODUCING
Committed ourselves to turning out the finest products, we attach the utmost importance to quality standards in production.

QUALITY CONTROLLING
Standards rubber company work closely with our raw material suppliers and engineers for the betterment quality of products. Our controlling in this regard includes thorough inspections throughout the whole process to manufacturing. Sparing you the extra employment of quality control inspectors.

CERTIFICATION
Should your rubber hose require testing and certification to comply with international standards (ISO,FDA, CCS,SGS etc). we can arrange this with independent, fully recognized testing companies.

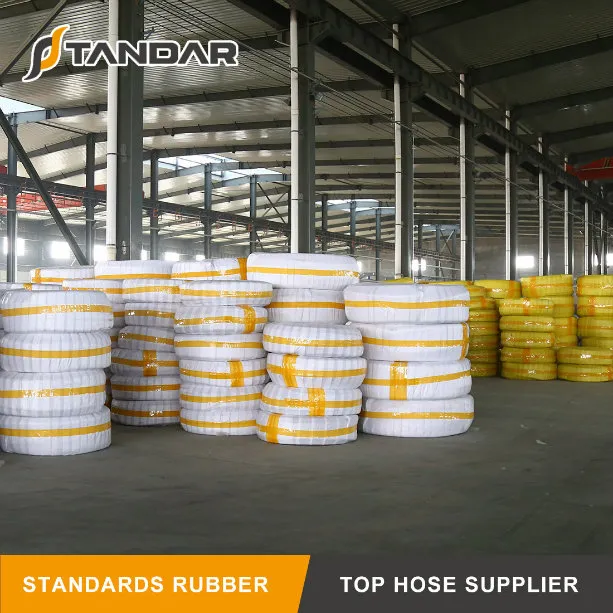

PACKAGING
One of the main concerns of buyers from China is 'will the packing be suitable to my product?' We understand that the packing is as important. And in some cases, even more important than product itself.

DELIVERY
We can offer the complete package from concept to delivery, arranging everything up until the point your product arrives at your own or distribution hub. Expedient and efficient.

We sincerely welcome partners all over the world to visit us for win-win cooperation!
