Product Description

Low Pressure Hydraulic Rubber Hose DIN/En 854 3te
Executive standard:DIN EN 854 3TE

Construction:

Tube: Oil and water resistant synthetic rubber.
Reinforcement: Two Suitable textile yarn.
Cover: Oil and weather resistant synthetic rubber.
Temperature range: -40°C to +100°C.

Application:

Hydraulic fluids in accordance with ISO6743-4 with the exception of HRD R, HFD S AND HFD T.

Specification:

Size		SAE specifications dash	I.D.		O.D.		W.P.		P.P.		B.P.		Min. B.R		Reference W.T.
mm	inch	Dash	Min	Max	Min	Max	Bar	Psi	Bar	Psi	Bar	Psi	Inch	mm	W.T.
5	3/16	-3	4.4	5.2	12.0	13.6	160	2320	320	4640	640	9280	1.57	40	0.129
6	1/4	-4	5.9	6.9	13.6	15.2	145	2103	290	4206	580	8412	1.77	45	0.153
8	5/16	-5	7.4	8.4	16.1	17.7	130	1885	260	3770	520	7540	2.16	55	0.210
10	3/8	-6	9.0	10.0	17.7	19.3	110	1595	220	3190	440	6380	2.75	70	0.241
12	1/2	-8	12.1	13.3	20.7	22.7	93	1349	186	2698	372	5396	3.35	85	0.299
16	5/8	-10	15.3	16.5	24.9	26.9	80	1160	160	2320	320	4640	4.13	105	0.405
19	3/4	-12	18.2	19.8	28.0	30.0	70	1015	140	2030	280	4060	5.12	130	0.470
25	1	-16	24.6	26.2	34.4	37.4	55	798	110	1596	220	3192	5.91	150	0.633
31	1 1/4	-20	30.8	32.8	40.8	43.8	45	653	90	1306	180	2612	7.48	190	0.774
38	1 1/2	-24	37.1	39.1	47.6	51.6	40	580	80	1160	160	2320	9.45	240	0.973
51	2	-32	49.8	51.8	60.3	64.3	33	479	66	958	132	1916	11.81	300	1.246

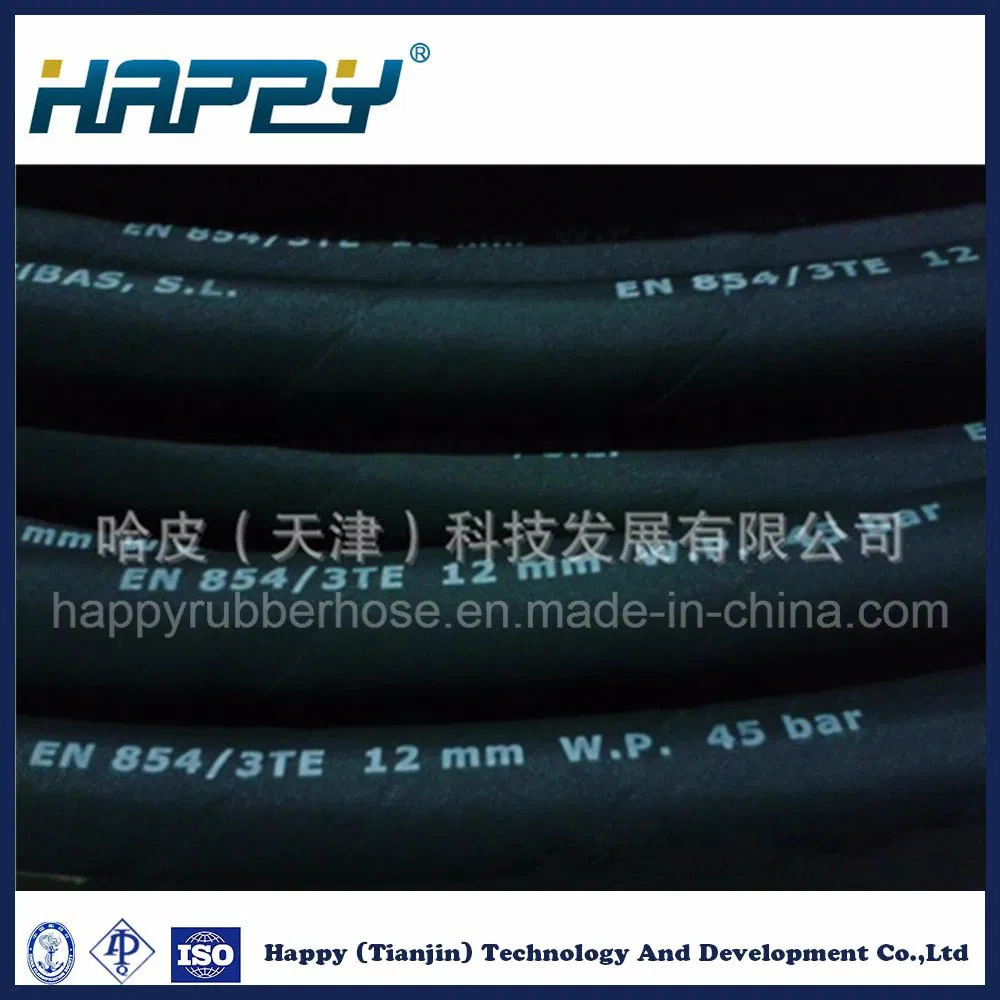

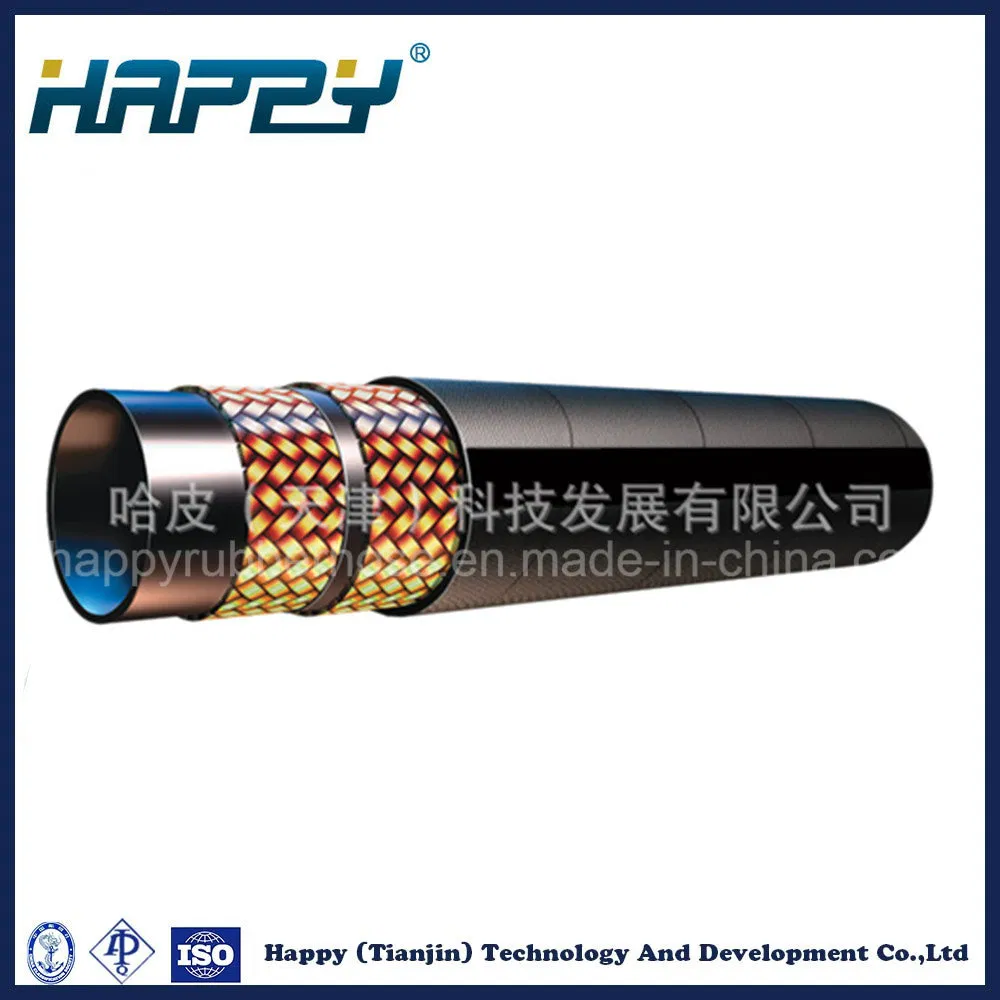

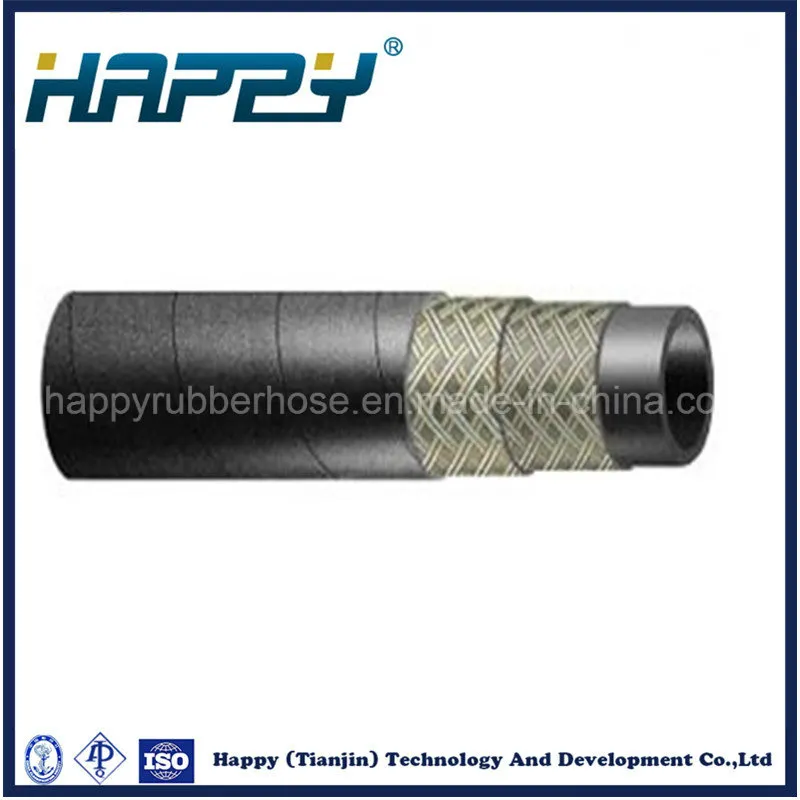

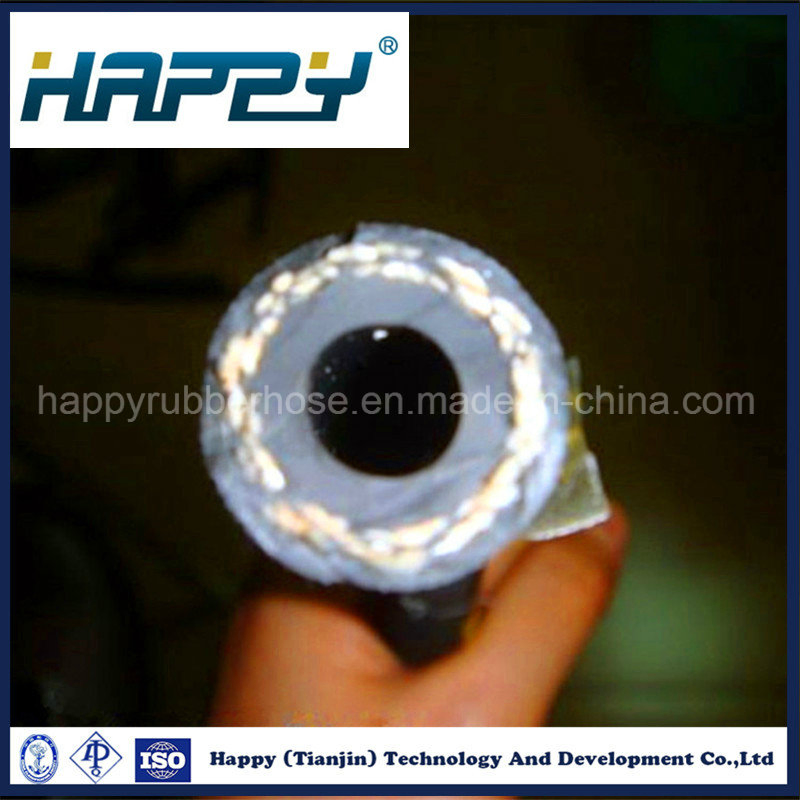

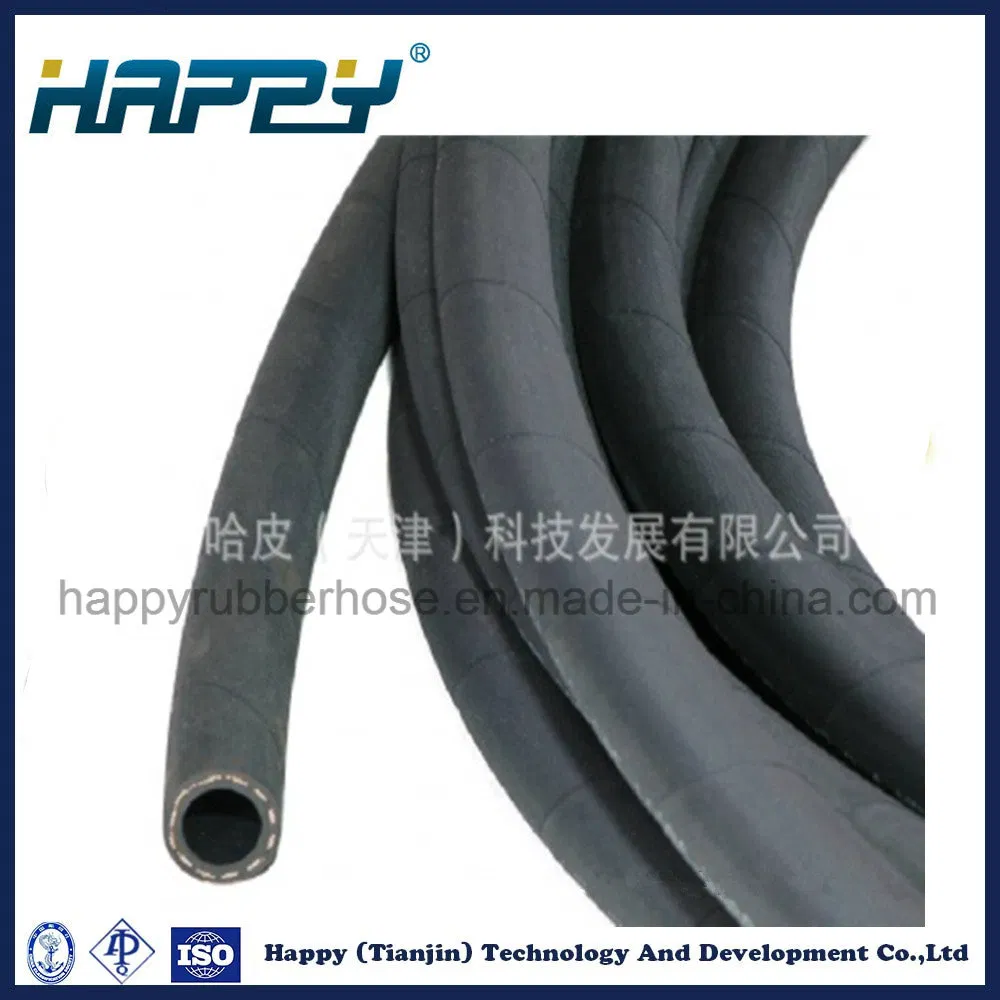

Following are pictures of High Pressure Hydraulic Rubber Hose DIN/En 854 3te:

Low Pressure Hydraulic Rubber Hose DIN/En 854 3te

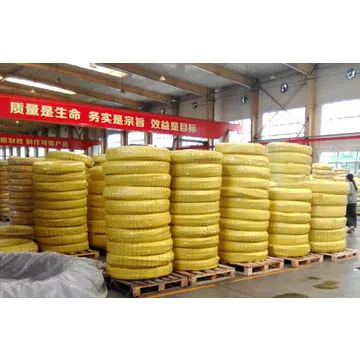

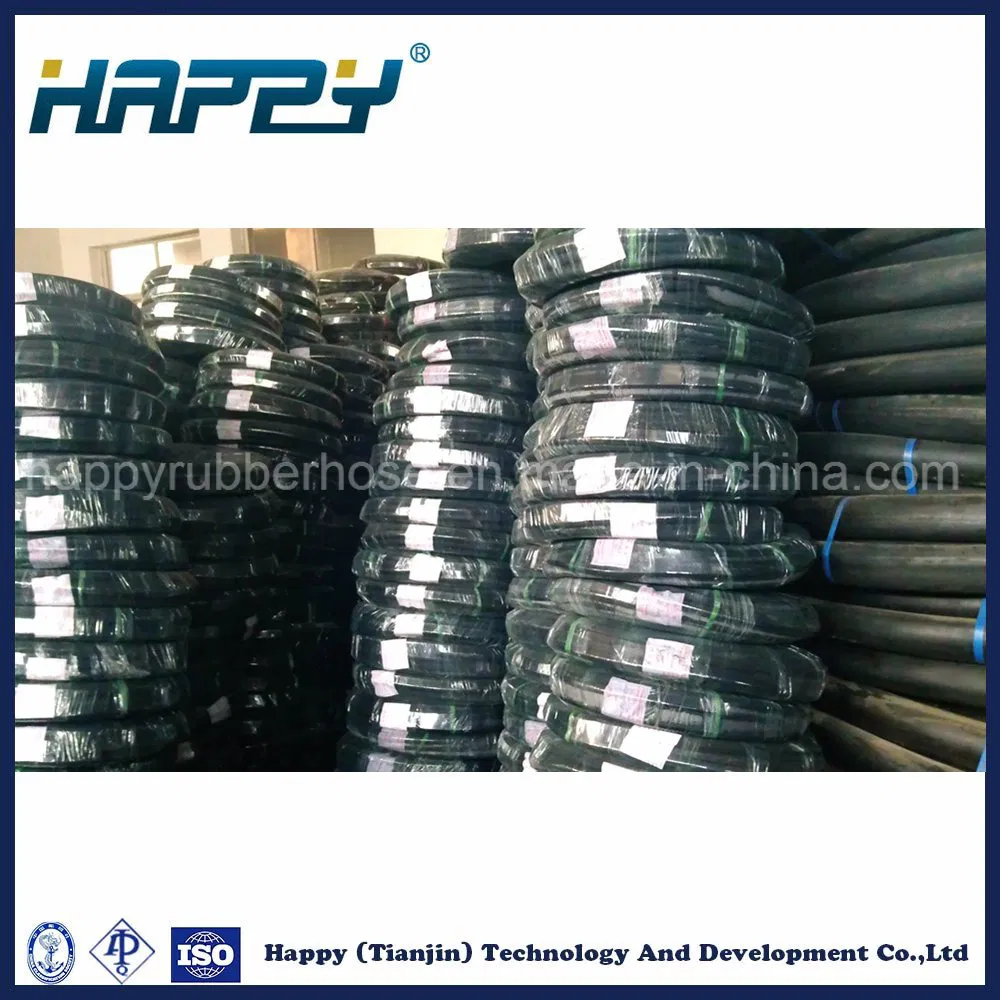

The pictures of package:

Low Pressure Hydraulic Rubber Hose DIN/En 854 3te

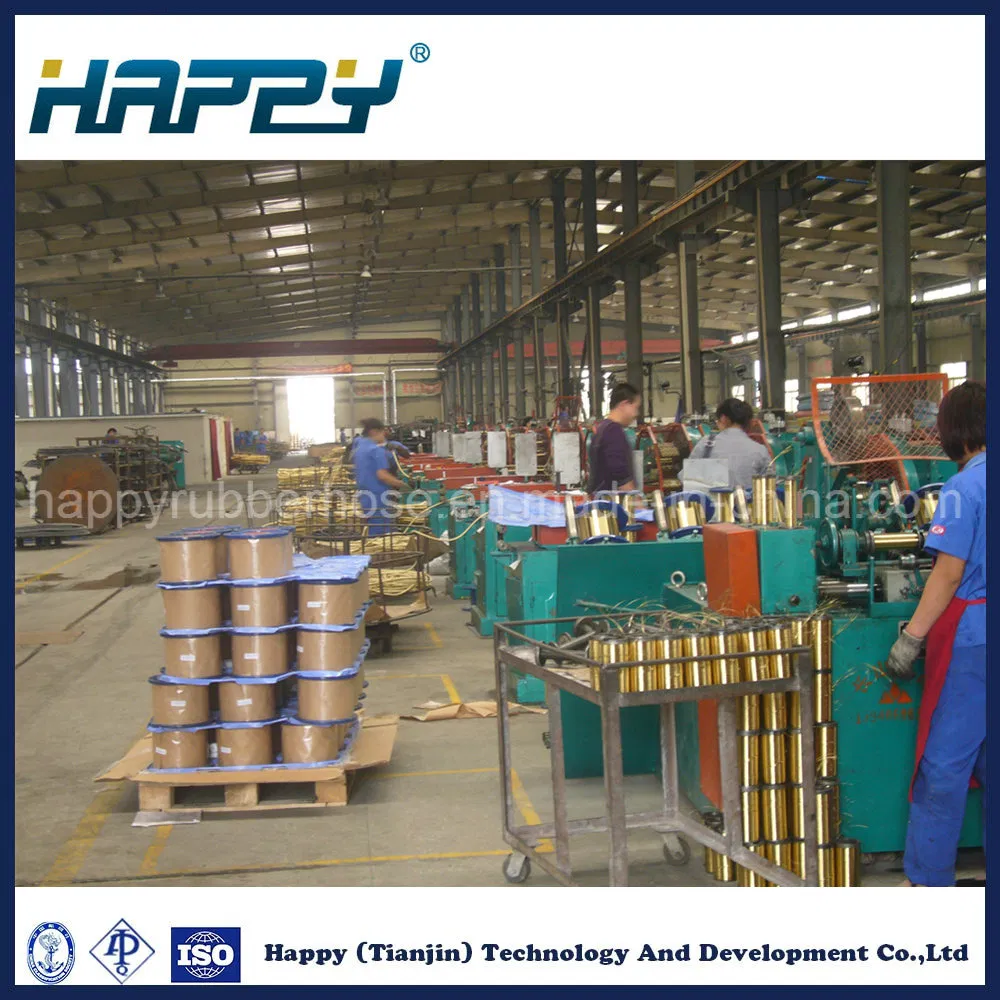

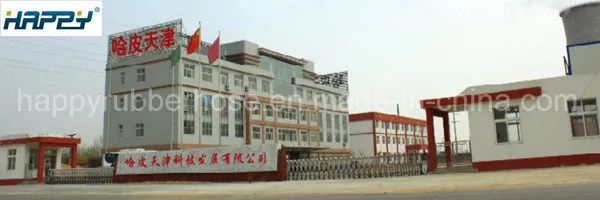

The pictures of our factory:

Low Pressure Hydraulic Rubber Hose DIN/En 854 3te

Our Services
We can offer OEM Services.
We can provide FREE SAMPLE for our customers.
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.

FAQ's

Q1. Do you produce smooth or cloth wrapped cover?
A.   Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
A.   Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A.   Yes, we have been offering OEM services for more than 13 years.
Q4. Does your product have different color hose?
A.   Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A.   It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.

Our principle:
Excellent quality , Fast delivery, Integrity service.
