China High Quality SAE 100r1 at/DIN En853 1sn 1/4′′ -3′′ Wire Braid Reinforced Hydraulic Tube Rubber Oil Hose

Product Description

High Quality SAE 100R1 AT/DIN EN853 1SN 1/4'' -3'' Wire Braid Reinforced Hydraulic Tube Rubber Oil Hose

Name	steel wire braiding hydraulic hose
Standard	SAE 100 R1 Type AT, SAE 100R1 Type S and EN 853 1SN.
Tube	Black, oil resistant, synthetic rubber
Reinforcement	One or Two braids of high-tensile steel wire.
Cover	Black synthetic rubber, oilproof, Anti-abrasion&weather resistant
Working Temperature	-40ºF to +212ºF (-40ºC to +100ºC)

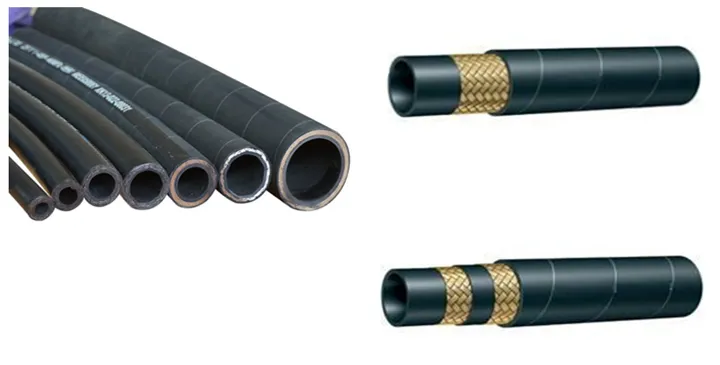

Construction:

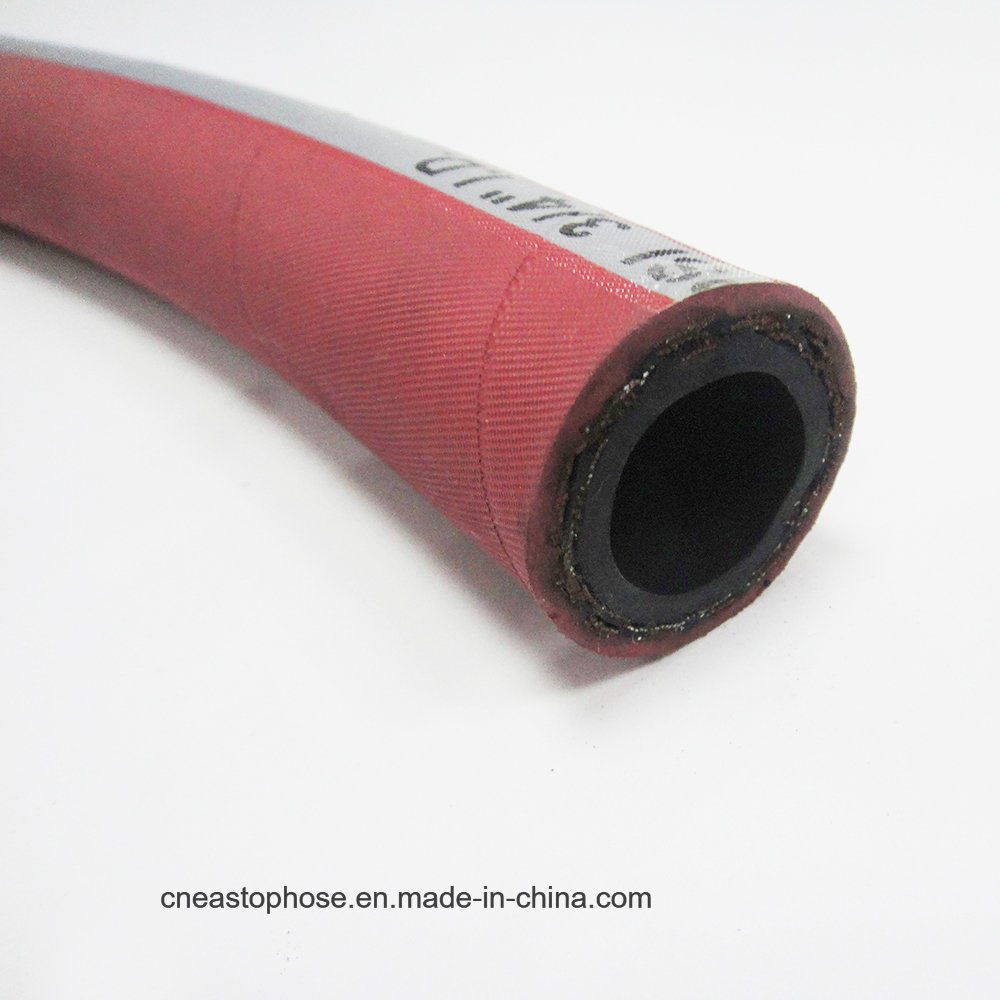

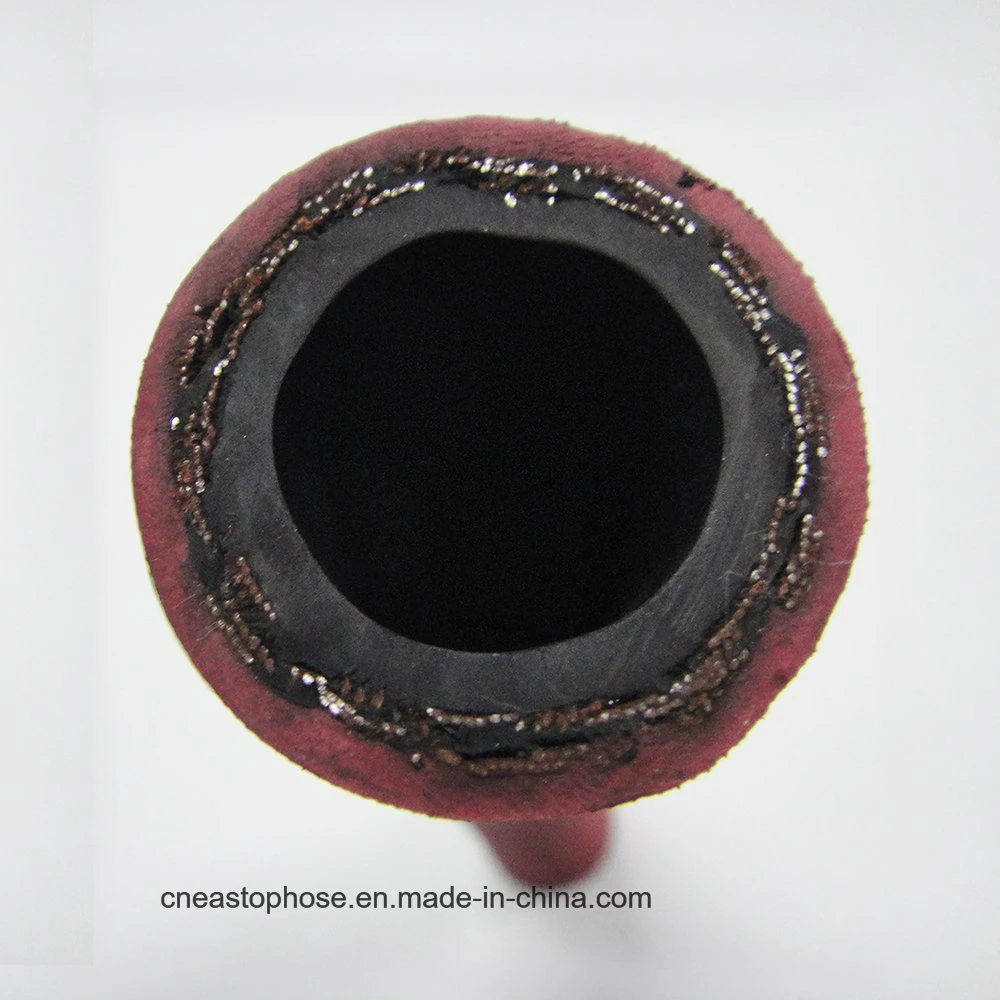

This hose is composed of an inner tube of oil synthetic rubber, a single wire braided reinforcement, and an oil and weather resistant synthetic rubber cover.

High Quality SAE 100r1 at/DIN En853 1sn 1/4′′ -3′′ Wire Braid Reinforced Hydraulic Tube Rubber Oil Hose

Features
1. Rubber hose is made of special synthetic rubber, with good oil resistance, heat resistance and aging resistance.
2. Hose bearing pressure, pulse superior performance.
3. Hose linked closely together, use a soft, small deformation under pressure.
4. Hose with excellent flexibility and fatigue resistance.
5. It is enclosed with a black and oil resistant cover which is also integrated with a synthetic rubber. Its cover also comes with a color-optional line of marking. Its tube is black in color and is built with an oil-resistant tube material which enables high pressure and high temperature functionality.

Specification:

Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
(In.)	(mm)	(In.)	(mm)	(psi)	(MPa)	(psi)	(MPa)	(In.)	(mm)	kg/m	lb/ft
1/4	6.4	0.52	13.1	3275	22.5	13100	90	3.94	100	0.25	0.168
5/16	7.9	0.58	14.7	3125	21.5	12500	85	4.53	115	0.31	0.208
3/8	9.5	0.67	17.1	2600	18	10400	72	4.92	125	0.36	0.242
1/2	12.7	0.8	20.3	2325	16	9300	64	7.09	180	0.45	0.302
5/8	15.9	0.92	23.4	1900	13	7600	52	7.87	200	0.52	0.349
3/4	19.1	1.08	27.4	1525	10.5	6100	42	9.45	240	0.65	0.437
1	25.4	1.4	35.5	1275	8.8	5100	35	11.81	300	0.91	0.611
1 1/4	31.8	1.69	43	925	6.3	3700	25	16.54	420	1.3	0.874
1 1/2	38.1	1.95	49.5	725	5	2900	20	19.69	500	1.7	1.142
2	50.8	2.48	63	600	4	2700	16	24.8	630	2	1.344
2 1/2	63.8	3.03	77	360	2.5	1600	10	29.92	760	2.56	1.72
3	76	3.46	88	290	2	1160	8	34.65	880	2.74	1.841

Certifications:
High Quality SAE 100r1 at/DIN En853 1sn 1/4′′ -3′′ Wire Braid Reinforced Hydraulic Tube Rubber Oil Hose

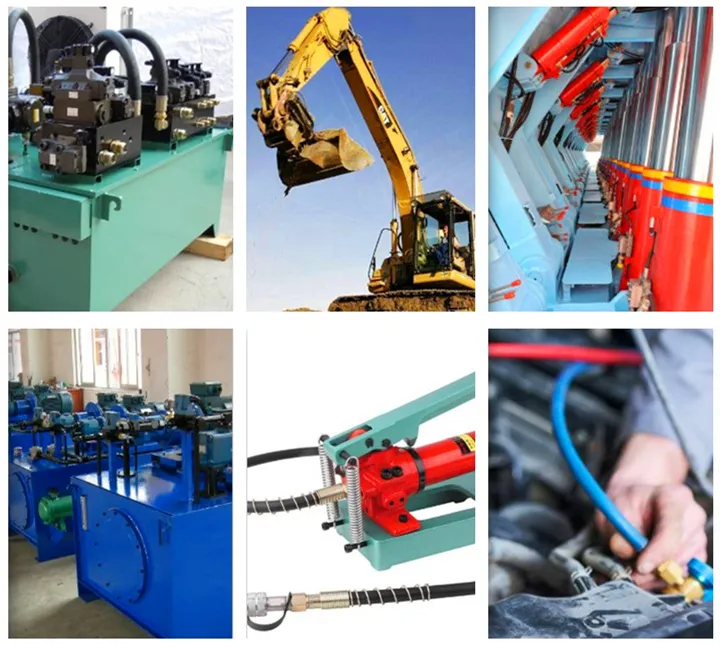

Application:
It is suitable to carry hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water etc. High Quality SAE 100r1 at/DIN En853 1sn 1/4′′ -3′′ Wire Braid Reinforced Hydraulic Tube Rubber Oil Hose
