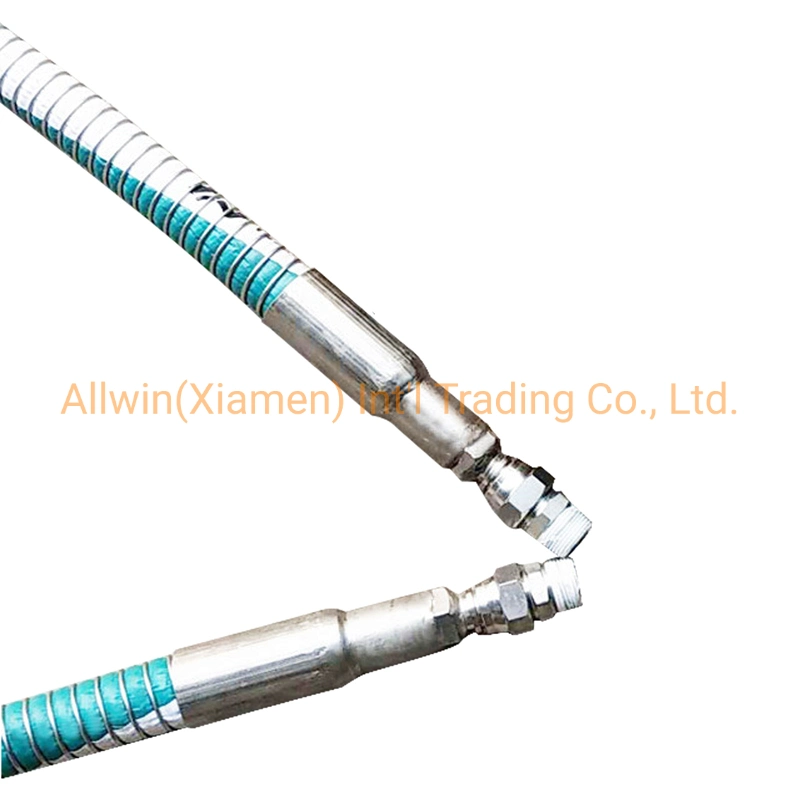

Aggressive Chemical Hose

Applicable Standards:  BS EN 13765
CCS Type Examination

Working Temperature Range: -30ºC to + 80ºC
Maximum Working Pressure: 14kg/cm²
Safety Factor 4 : 1 for heavy duty grades (Burst Pressure: Working Pressure)

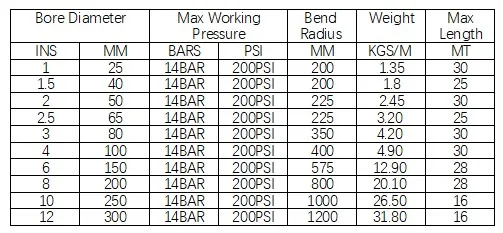

Size 1" to 12"
Used world wide by many leading companies, these quality hose are lined, as standard, which Poly Tetra Fluoro Ethylene( PTFE ), in its broad spectrum chemical resistance but with the advantage of high mechanical strength and low permeability. The inner and outer wire can be galvanized carbon steel or stainless steel 316.
Hose are reinforced with polypropylene or polyester depending on the required maximum working temperature.

PTFE heavy duty hose are widely used for marine cargo hose because of their strong construction and wide chemical resistance.

Inner wire spiral: stainless steel 304 / stainless stell 316
Outer wire spiral: galvanized steel/ stainless steel 304 / stainless steel 316
Inner lining: PTFE
Cover: PVC (PP on request)








Composite Hose safty for oil transportation, gas transportation, water transportaton, chemical liquid transportation etc.
High pressure, middle pressure, low pressure for optioned.
Long life, flexible and safety.
