Product Description

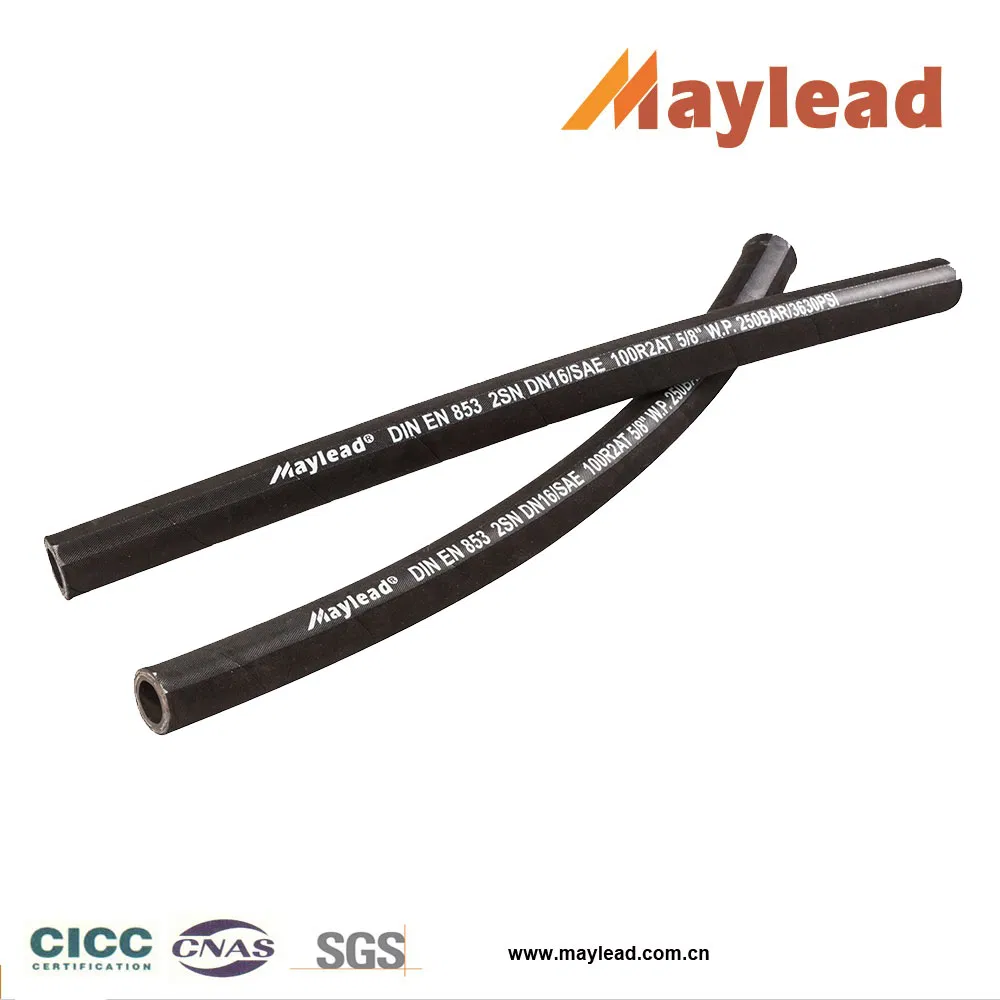

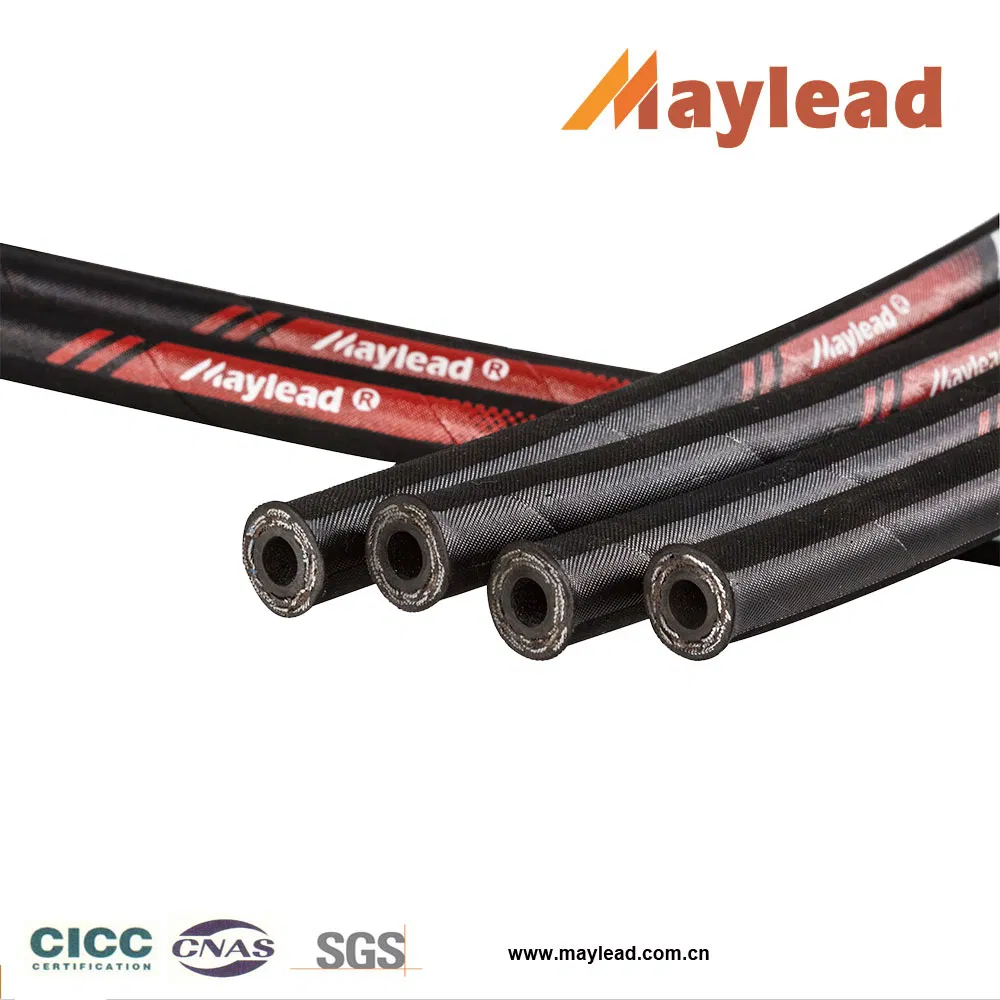

High Pressure Steel Wire Braided Rubber Hose

High pressure Hydraulic Hose GB/T3683 EN853- 2SN SAE100R2AT

Structure: The hose is composed of inner rubber layer made from oil resistant synthetic rubber, one layer of steel wire braided reinforcement layer and outer rubber layer made also from oil resistant and weather resistant synthetic rubber.
Application: Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, oil, lubricating oil, emulsion, hydrocarbon and so on.
Working temperature: -40 ºC - +100ºC

Hose Size
Hose Size		I.D. mm		W.D. mm		O.D mm		W.R Mpa	P.P	B.P. Mpa	B.R.mm	Weight
Mm	inch	min	max	min	max	min	max	max	Mpa	min	min	Kg/m
5.0	3/16	4.6	5.4	10.6	11.6	12.7	14.1	41.5	83	166	90	0.28
6.3	1/4	6.2	7.0	12.1	13.3	14.3	15.7	40	80	160	100	0.36
8.0	5/16	7.7	8.5	13.7	14.9	15.9	17.3	35	70	140	115	0.41
10	3/8	9.3	10.1	16.1	17.3	18.3	19.7	33	66	132	130	0.52
12.5	1/2	12.3	13.5	19	20.6	21.4	23.1	27.5	55	110	180	0.64
16	5/8	15.5	16.7	22.2	23.8	24.6	26.3	25	50	100	200	0.74
19	3/4	18.6	19.8	26.2	27.8	28.5	30.1	21.5	43	86	240	0.92
25	1	25	26.4	34.1	35.7	36.3	38.9	16.5	33	66	300	1.40
31.5	1 1/4	31.4	33	43.3	45.7	46.5	49.5	12.5	25	50	420	1.90
38	1 1/2	37.7	39.3	49.6	52	53.3	55.9	9	18	36	500	2.28
51	2	50.4	52	62.3	64.7	66	68.9	8	16	32	630	2.78

A. Regarding the hose and fittings assembly shall consider the following aspects;

Working environment; environment temperature, weather condition and other external contact objects.
Conveying medium: liquid, gas, paste, powder, or mixture of several media;
Medium transmission mode: positive pressure transmission, negative pressure suction;
Working conditions: pressure, temperature and flow of conveying medium; Pulse or motion frequency; Chemical properties of the medium;

B. Hoses and hose assemblies have limited service life. Factors leading to reduced service life include:

The bending radius of the hose installation is too small, and the hose body is torsional deformation;
Hose installation free length or movement length is not enough, squeezed, rubbed, stretched and twisted by external forces;
The working temperature or pressure of the hose exceeds the designed working temperature or design working pressure;
The hose connection does not meet the standard, and the quality of the buckle is unqualified;
Poor operating conditions, hose outer rubber layer is polluted and corroded (such as spraying paint), mechanical damage, etc.;

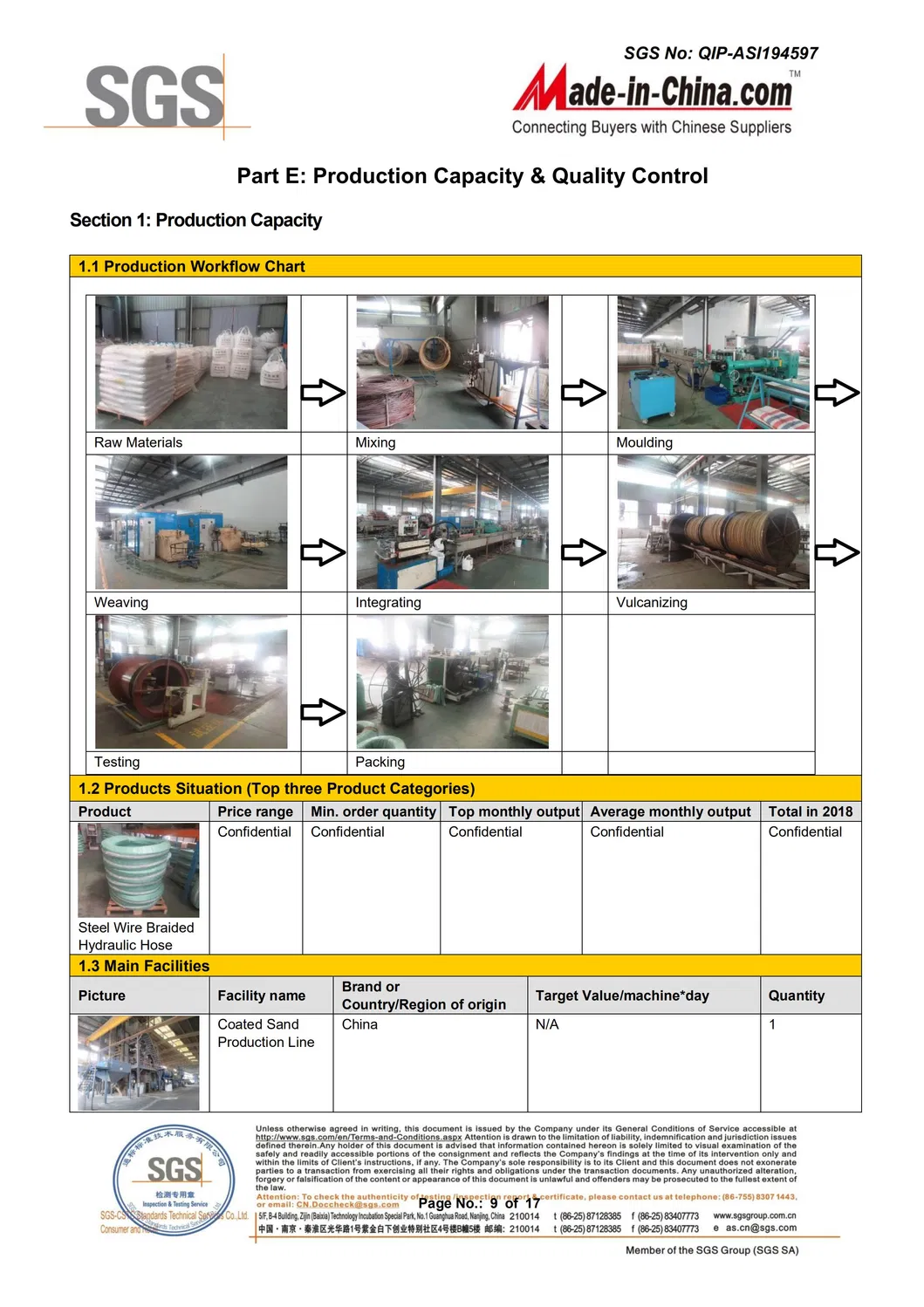

Certification:

Production Process:

Nantong Maylead Technology Co. , Ltd. is located in the beautiful coastal city of Nantong Haimen, east of the East China Sea, south of the Yangtze River, with unique geographical and transportation advantages. In 2014, we completed the new plant covers an area of 56 acres, building area of 25,000 square meters, with beautiful office building and modern plant. In order to stabilize product quality and continuously improve product quality, we have invested in advanced production and testing equipment, and continuously complete production quality management system. After the company's efforts, we have passed ISO9001:2015 certification, certified by CICC, INA and NAS to get the Quality Management, Staff Safety and Production Safety Certificate, and own a number of patents, thus honorarily recognized as Jiangsu high-tech enterprises. Maylead products have been exported abroad widely, and maintain long-term stable cooperation with a number of well-known enterprises at home and abroad, won customers recognition worldwide.
MAYLEAD has consistently adhered to the "Quality and Efficiency, Innovation, Excellence" as the purpose, and has been constantly improving the quality level, technical level, management level. MAYLEAD will supply the economic, practical, stable, best cost-effective rubber hose products. MAYLEAD --May "MAYEAD" lead in the rubber hose industry!

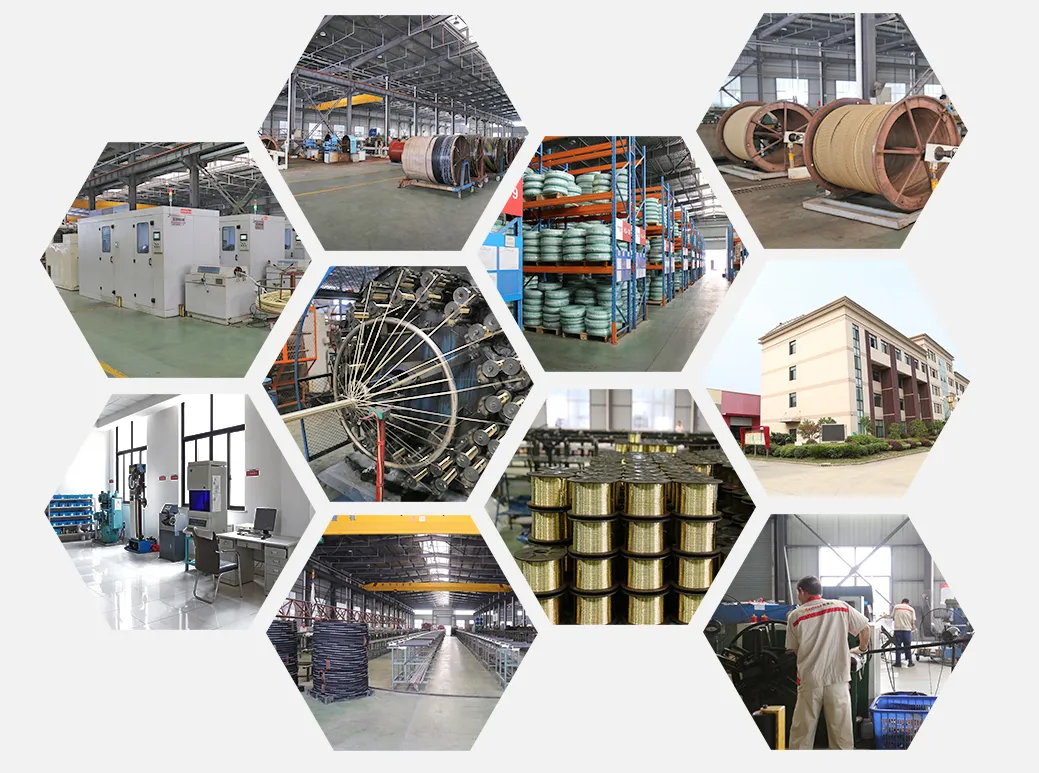

Our Factory
5/8 Inch High Pressure Braided Rubber Hose En853 2sn 100r2at

5/8 Inch High Pressure Braided Rubber Hose En853 2sn 100r2at

FAQ ( Frequently Asked Question)

1. Is sample available? Shall I pay for sample or delivery?

The samples are free. Customers pay for the delivery cost.

2. How long will I get my order?

General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.

3. How will my order be packed?

All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.

4. What should I do if I find quality problem in using?

12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.

5. Is it possible to visit your factory?

We warmly welcome you to visit our factory at any of your convenient time.
