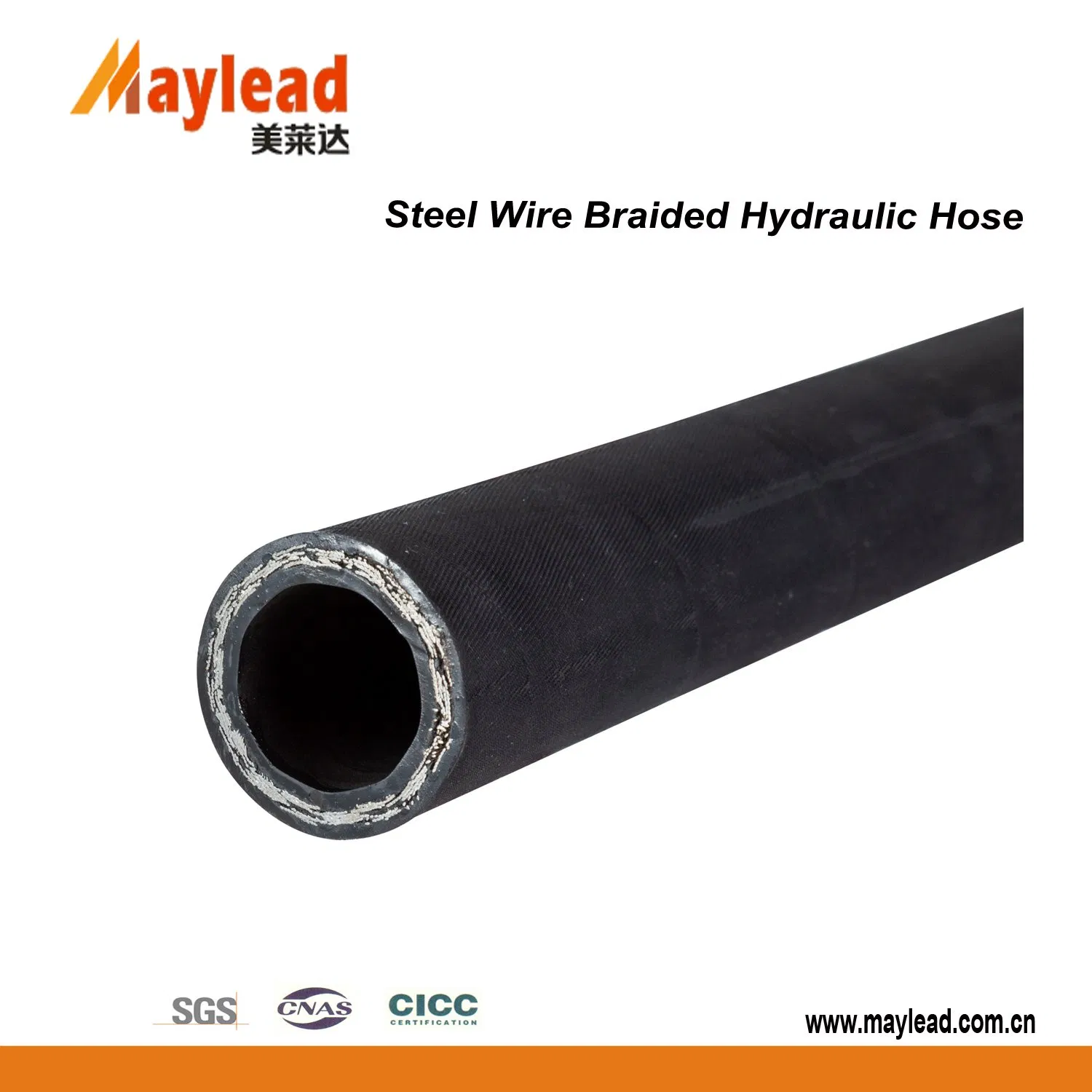

3801 High Pressure Steel Wire Braided Hydraulic Hose GB/T3683 En853-1sn

Single layer of steel wiree braided rubber hose Three layers of steel wire braided hose technology parameters Hose specificationNominal diameterHose diametermmEnhancement layer outer diametermmReference diametermmPressure of workMPaBurst pressureMPaMinimum bending radiusmmHose theoretical weightK......

Send Inquiry

Product Description

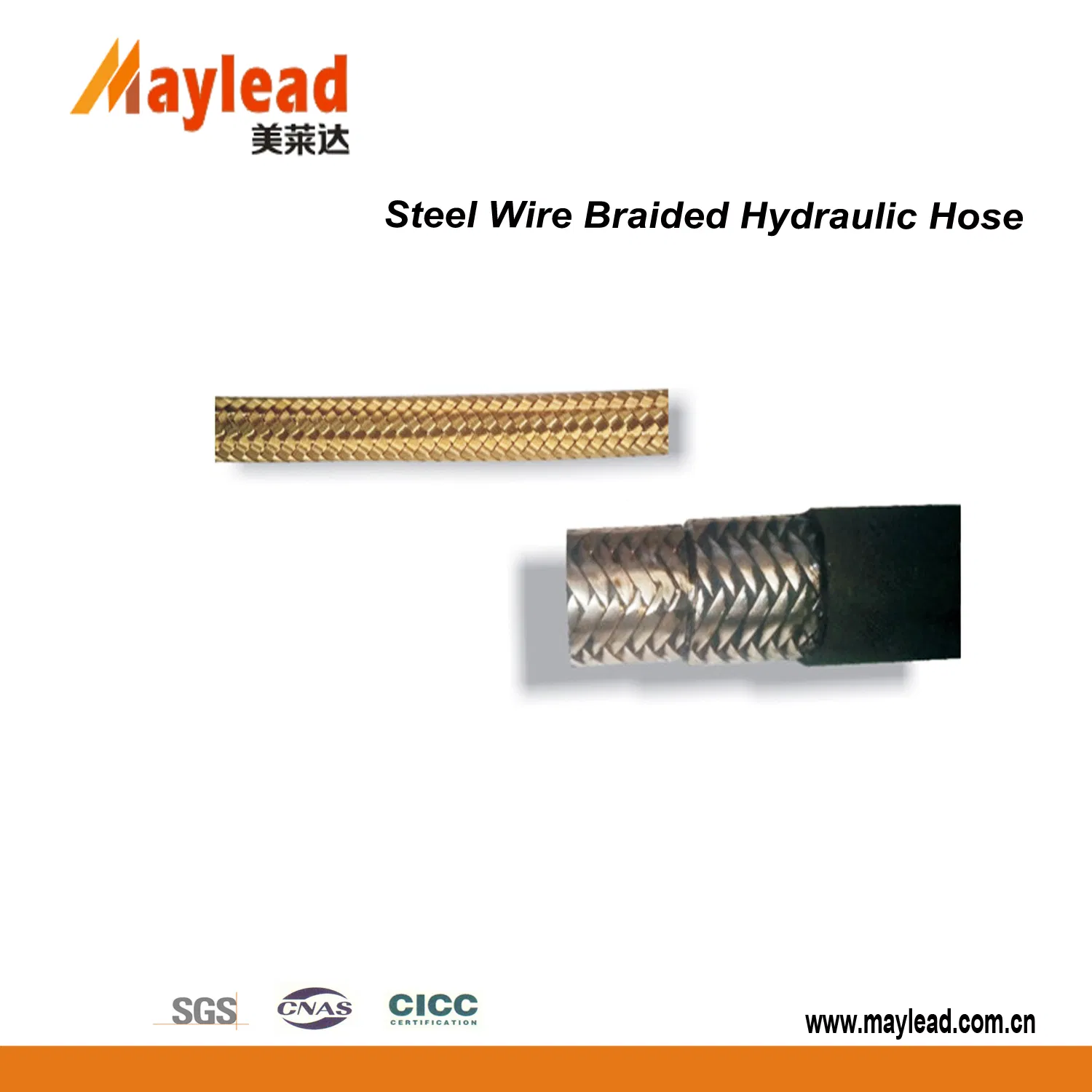

Single layer of steel wiree braided rubber hose

3801 High Pressure Steel Wire Braided Hydraulic Hose GB/T3683 En853-1sn

Three layers of steel wire braided hose technology parameters

Hose specification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
Hose specification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603ZY-0803	8	5/16	8+0.5	16.8±0.2	20±0.3	88	220	115	0.68
603ZY-1003	10	3/8	10+0.1	19±0.2	22.3±0.3	66	165	130	0.87
603ZY-1303	13 1/2		13+0.5	23±0.2	26±0.3	58	145	180	0.96
603ZY-1603	16 5/8		16+0.7	25±0.2	29±0.3	50	125	200	1.2
603ZY-1903	19 3/4		19+0.8	29.2±0.2	32.8±0.3	38.8	97	240	1.4
602ZY-2203	22 7/8		22+0.5	32±0.2	35±0.3	34	85	280	1.6
603ZY-2503	25 1		25+1.4	35.5±0.2	39±0.3	32.5	81	300	1.8
603ZY-3203	32 1-1/4		32+1.0	42.5±0.2	47±0.3	24.5	61	420	2.1
603ZY-3803	38 1-1/2		38+1.3	48.3±0.2	53±0.3	18	45	500	2.63
603ZY-5103	51 2		51+1.0	61.8±0.2	66±0.3	14	35	630	3.03

602 st type steel wire braided hydraulic hose
602 st type steel wire braided hydraulic hose
Reference standard GB/T3683 SN type (thick cover rubber)
Hose from the sub (oil), steel wire braid reinforced layer, a rubber (aging), appearance is black fabric

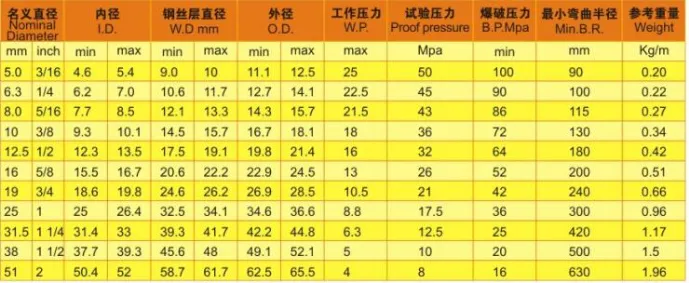

Single steel wire braided hose technology parameters

Hose Pecification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
Hose Pecification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
602ST-0601	6	1/4	6.1~7	10.6~11.7	15.1~16.7	22.5	90	100	0.27
602ST-0801	8	5/16	7.7~8.5	12.1~13.3	16.7~18.3	21.5	86	115	0.33
602ST-1001	10 3/8		9.3~10.1	14.5~15.7	19~20.6	18	72	130	0.36
602ST-1301	13 1/2		12.3~13.5	17.5~19.1	22.2~23.8	16	64	180	0.52
602ST-1601	16 5/8		15.6~16.7	20.6~22.2	25.4~27	13	52	200	0.59
602ST-1901	19 3/4		18.6~19.8	24.6~26.2	29.4~31	10.5	42	240	0.71
602ST-2201	22 7/8		21.6~22.5	27.8~29.2	32.5~34.1	9	36	280	0.8
602ST-2501	25 1		25~26.4	32.5~34.1	36.9~39.3	8.7	36	300	0.91
602ST-3201	32 1-1/4		31.4~33	39.1~41.7	44.4~47.6	6.2	26	420	0.99
602ST-3801	38 1-1/2		37.7~39.3	45.6~48	50.8~54	5	20	500	1.23
602ST-5101	51 2		50.4~52.0	58.7~61.9	65.1~68.3	4	16	630	1.78

Two layers of steel wire braided hose technology parameters

Hose pecification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
Hose pecification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
602ST-0602	6	1/4	6.1~7	12.1~13.3	16.7~18.3	40	160	100	0.41
602ST-0802	8	5/16	7.7~8.5	13.7~14.9	18.3~19.9	35	140	115	0.5
602ST-1002	10 3/8		9.3~10.1	16.1~17.3	20.6~2.2	33	132	130	0.6
602ST-1302	13 1/2		12.3~13.5	19~20.6	23.8~25.4	27.5	110	180	0.71
602ST-1602	16 5/8		15.6~16.7	22.2~23.8	27~28.6	25	100	200	0.88
602ST-1902	19 3/4		18.6~19.8	26.2~27.8	31~32.6	21.5	86	240	1.03
602ST-2202	22 7/8		21.6~22.5	29.4~31	34.1~35.7	18	72	280	1.22
602ST-2502	25 1		25~26.4	34.1~35.7	38.5~40.9	16.5	66	300	1.31
602ST-3202	32 1-1/4		31.4~33	43.2~45.7	49.2~52.4	12.5	50	420	1.46
602ST-3802	38 1-1/2		37.7~39.3	49.6~52	55.6~58.8	9	36	500	2.1
602ST-5102	51 2		50.4~52.0	62.3~64.7	68.2~71.4	8	32	630	2.5

Single steel wire braided hose technology parameters
Single steel wire braided hose technology parameters
Reference standard GB/T3683 SN type (thin overburden rubber hose from the sub (oil), steel wire braid reinforced layer, a rubber (aging), appearance is black fabric

Single steel wire braided hose technology parameters

Hose specification

Nominal diameter

Hose diameter

mm

Enhancement layer outer diameter
mm

Reference diameter

mm

Pressure of work

MPa

Burst pressure

MPa

Minimum bending radius
mm

Hose theoretical weight

Kg/m

602SN-0601

1/4

6.1~7

10.6~11.7

14.1

22.5

100

0.23

602SN-0801

5/16

7.7~8.5

12.1~13.3

15.7

21.5

115

0.28

602SN-1001

10 3/8

9.3~10.1

14.5~15.7

18.1

130

0.32

602SN-1301

13 1/2

12.3~13.5

17.5~19.1

21.5

180

0.41

602SN-1601

16 5/8

15.6~16.7

20.6~22.2

24.7

200

0.52

602SN-1901

19 3/4

18.6~19.8

24.6~22.2

28.6

10.5

240

0.64

602SN-2201

22 7/8

21.6~22.5

27.8~29.2

280

0.7

602SN-2501

25 1

25~26.4

32.5~34.1

36.6

8.7

300

0.87

602SN-3201

32 1-1/4

31.4~33

39.1~41.7

44.8

6.2

420

1.07

602SN-3801

38 1-1/2

37.7~39.3

45.6~48

52.1

500

1.25

602SN-5101

51 2

50.4~52.0

58.7~61.9

65.9

630

1.83

Two layers of steel wire braided hose technology parameters

Hoses Pecification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose Theoretical Weight Kg/m
Hoses Pecification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose Theoretical Weight Kg/m
602SN-0602	6	1/4	6.1~7	12.1~13.3	15.7	40	160	100	0.36
602SN-0802	8	5/16	7.7~8.5	13.7~14.9	17.3	35	140	115	0.45
602SN-1002	10 3/8		9.3~10.1	16.1~17.3	19.7	33	132	130	0.5
602SN-1302	13 1/2		12.3~13.5	19~20.6	23.1	27.5	110	180	0.62
602SN-1602	16 5/8		15.6~16.7	22.2~23.8	26.3	25	100	200	0.81
602SN-1902	19 3/4		18.6~19.8	26.2~27.8	30.2	21.5	86	240	0.95
602SN-2202	22 7/8		21.6~22.5	29.4~31	34	18	72	280	1.05
602SN-2502	25 1		25~26.4	34.1~35.7	38.9	16.5	66	300	1.26
602SN-3202	32 1-1/4		31.4~33	43.2~45.7	49.6	12.5	50	420	1.58
602SN-3802	38 1-1/2		37.7~39.3	49.6~52	56	9	36	500	1.92
602SN-5102	51 2		50.4~52.0	62.3~64.7	68.6	8	32	630	2.57

603 zy type steel wire braided hydraulic hose
603 zy type steel wire braided hydraulic hose
Suitable for hydraulic system of hydraulic support, integrated units such as mineral oil, water-based hydraulic oil or water, can be used in - 40 ºC ~ + 100 ºC.
Reference standard Q/MLD - JG01 medium pressure thick outer cladding Hose from the sub (oil), steel wire braid reinforced layer, a rubber (aging), appearance is black fabric

Single steel wire braided hose technology parameters

Hose Specification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose Theoretical Weight Kg/m
Hose Specification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose Theoretical Weight Kg/m
603ZY-0601	6	1/4	6+1.0	11.6±0.2	14.5±0.3	32	80	100	0.27
603ZY-0801	8	5/16	8+0.5	13.4±0.2	16.5±0.3	28	70	115	0.33
603ZY-1001	10 3/8		10+0.1	15.4±0.2	18±0.3	25.6	64	130	0.36
603ZY-1301	13 1/2		13+0.5	19.6±0.2	23±0.3	22.4	56	180	0.52
603ZY-1601	16 5/8		16+0.7	22.3±0.2	25.5±0.3	16.8	42	200	0.59
603ZY-1901	19 3/4		19+0.8	25.8±0.2	29±0.3	14.4	36	240	0.71
602ZY-2201	22 7/8		22+0.5	28±0.2	31.5±0.3	12.8	32	280	0.8
603ZY-2501	25 1		25+1.4	32.1±0.2	35.5±0.3	11.2	28	300	0.91
603ZY-3201	32 1-1/4		32+1.0	39.1±0.2	42±0.3	9	22.5	420	0.99
603ZY-3801	38 1-1/2		38+1.3	44.9±0.2	47.9±0.3	7	17.5	500	1.23
603ZY-5101	51 2		51+1.0	58.2±0.2	62.8±0.3	3	7.5	630	1.78

Two layers of steel wire braided hose technology parameters

Hoses Pecification	Nominal Diameter mm in		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603ZY-0602	6	1/4	6+1.0	13.4±0.2	16.5±0.3	60	150	100	0.41
603ZY-0802	8	5/16	8+0.5	15.2±0.2	18±0.3	48	120	115	0.5
603ZY-1002	10 3/8		10+0.1	17.2±0.2	20.5±0.3	40	100	130	0.6
603ZY-1302	13 1/2		13+0.5	21.4±0.2	24±0.3	36	90	180	0.71
603ZY-1602	16 5/8		16+0.7	24±0.2	27±0.3	34	85	200	0.88
603ZY-1902	19 3/4		19+0.8	27.5±0.2	30.5±0.3	25	62	240	1.03
602ZY-2202	22 7/8		22+0.5	29.7±0.2	33.5±0.3	22	55	280	1.22
603ZY-2502	25 1		25+1.4	33.8±0.2	37±0.3	21	52.5	300	1.31
603ZY-3202	32 1-1/4		32+1.0	40.8±0.2	44±0.3	17	42.5	420	1.46
603ZY-3802	38 1-1/2		38+1.3	46.6±0.2	50.5±0.3	14	35	500	2.1
603ZY-5102	51 2		51+1.0	60±0.2	64.8±0.3	8	20	630	2.5

Three layers of steel wire braided hose technology parameters

Hose specification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
Hose specification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603ZY-0803	8	5/16	8+0.5	16.8±0.2	20±0.3	88	220	115	0.68
603ZY-1003	10	3/8	10+0.1	19±0.2	22.3±0.3	66	165	130	0.87
603ZY-1303	13 1/2		13+0.5	23±0.2	26±0.3	58	145	180	0.96
603ZY-1603	16 5/8		16+0.7	25±0.2	29±0.3	50	125	200	1.2
603ZY-1903	19 3/4		19+0.8	29.2±0.2	32.8±0.3	38.8	97	240	1.4
602ZY-2203	22 7/8		22+0.5	32±0.2	35±0.3	34	85	280	1.6
603ZY-2503	25 1		25+1.4	35.5±0.2	39±0.3	32.5	81	300	1.8
603ZY-3203	32 1-1/4		32+1.0	42.5±0.2	47±0.3	24.5	61	420	2.1
603ZY-3803	38 1-1/2		38+1.3	48.3±0.2	53±0.3	18	45	500	2.63
603ZY-5103	51 2		51+1.0	61.8±0.2	66±0.3	14	35	630	3.03

603 zyb type steel wire braided hydraulic hose
603 zyb type steel wire braided hydraulic hose
Suitable for hydraulic system of hydraulic support, integrated units such as mineral oil, water-based hydraulic oil or water, can be used in - 40 ºC ~ + 100 ºC.
Reference standard Q/MLD - JG01 medium-pressure thin outer cladding Hose from the sub (oil), steel wire braid reinforced layer, a rubber (aging), appearance is black fabric

Single steel wire braided hose technology parameters

Hose specification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
Hose specification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603ZYB-0601	6	1/4	6+1.0	11.1±0.2	13.6±0.3	32	80	100	0.23
603ZYB-0801	8	5/16	8+0.5	12.8±0.2	15.2±0.3	28	70	115	0.28
603ZYB-1001	10 3/8		10+0.1	15.4±0.2	17.6±0.3	25.5	64	130	0.32
603ZYB-1301	13 1/2		13+0.5	18.4±0.2	20.8±0.3	22	56	180	0.41
603ZYB-1601	16 5/8		16+0.7	21.7±0.2	24.2±0.3	16.5	42	200	0.52
603ZYB-1901	19 3/4		19+0.8	25.3±0.2	27.9±0.3	14.5	36	240	0.64
602ZYB-2201	22 7/8		22+0.5	27.4±0.2	30.3±0.3	12.5	32	280	0.7
603ZYB-2501	25 1		25+1.4	31.2±0.2	34.4±0.3	11	28	300	0.87
603ZYB-3201	32 1-1/4		32+1.0	39.1±0.2	42±0.3	9	22.5	420	1.07
603ZYB-3801	38 1-1/2		38+1.3	44.9±0.2	47.9±0.3	7	17.5	500	1.25
603ZYB-5101	51 2		51+1.0	58.1±0.2	62.8±0.3	3	7.5	630	1.83

Two layers of steel wire braided hose technology parameters

Hose Specification	Nominal diameter		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
Hose Specification	mm	In	Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603ZYB-0602	6	1/4	6+1.0	12.9±0.2	15.2±0.3	60	150	100	0.36
603ZYB-0802	8	5/16	8+0.5	14.5±0.2	16.8±0.3	48	120	115	0.45
603ZYB-1002	10 3/8		10+0.1	17.0±0.2	19.2±0.3	40	100	130	0.5
603ZYB-1302	13 1/2		13+0.5	20.2±0.2	22.4±0.3	36	90	180	0.62
603ZYB-1602	16 5/8		16+0.7	23.4±0.2	25.8±0.3	34	85	200	0.81
603ZYB-1902	19 3/4		19+0.8	27±0.2	29.5±0.3	25	62	240	0.95
602ZYB-2202	22 7/8		22+0.5	29.2±0.2	32±0.3	22	55	280	1.05
603ZYB-2502	25 1		25+1.4	33±0.2	36±0.3	21	52.5	300	1.26
603ZYB-3202	32 1-1/4		32+1.0	40.8±0.2	44±0.3	17	42.5	420	1.58
603ZYB-3802	38 1-1/2		38+1.3	46.6±0.2	50.5±0.3	14	35	500	1.92
603ZYB-5102	51 2		51+1.0	59.8±0.2	64.8±0.3	8	20	630	2.57

Three layers of steel wire braided hose technology parameters

Hose Specification	Nominal diameter mm in		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603ZYB-0803	8	5/16	8+0.5	16.8±0.2		50	125	115	0.59
603ZYB-1003	10	3/8	10+0.1	19±0.2	20.5±0.3	45	112	130	0.72
603ZYB-1303	13 1/2		13+0.5	22.2±0.2	24.1±0.3	40	100	180	0.83
603ZYB-1603	16 5/8		16+0.7	25.2±0.2	27.6±0.3	35	85	200	1.1
603ZYB-1903	19 3/4		19+0.8	28.6±0.2	31.5±0.3	28	70	240	1.31
602ZYB-2203	22 7/8		22+0.5	31±0.2	34±0.3	25	62.5	280	1.43
603ZYB-2503	25 1		25+1.4	34.8±0.2	37.8±0.3	24	60	300	1.67
603ZYB-3203	32 1-1/4		32+1.0	42.5±0.2	45.5±0.3	19	47.5	420	2.04
603ZYB-3803	38 1-1/2		38+1.3	48.3±0.2	53±0.3	15	37.5	500	2.58
603ZYB-5103	51 2		51+1.0	61.5±0.2	66±0.3	10	25	630	3.2

The 603 h steel wire braided hydraulic hose
The 603 h steel wire braided hydraulic hose
Suitable for hydraulic system of hydraulic support, integrated units such as mineral oil, water-based hydraulic oil or water, can be used in - 40 ºC ~ + 100 ºC.
Reference standard Q/MLD - JG01 high pressure thick outer cladding Hose from the sub (oil), steel wire braid reinforced layer, a rubber (aging), appearance is black fabric

Single steel wire braided hose technology parameters

Hose Specification	Nominal diameter mm in		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603H-0601	6	1/4	6+1.0	11.6±0.2	14.5±0.3	40	100	100	0.27
603H-0801	8	5/16	8+0.5	13.4±0.2	16.5±0.3	34	85	115	0.33
603H-1001	10 3/8		10+0.1	15.4±0.2	18±0.3	32	80	130	0.36
603H-1301	13 1/2		13+0. -0.7	19.6±0.2	23±0.3	26	65	180	0.52
603H-1601	16 5/8		16+0.7	22.3±0.2	25.5±0.3	21	52	200	0.59
603H-1901	19 3/4		19+0.8	25.8±0.2	29±0.3	19	47.5	240	0.71
602H-2201	22 7/8		22+0.5	28±0.2	31.5±0.3	17	42.5	280	0.8
603H-2501	25 1		25+1.4	32.1±0.2	35.5±0.3	14	35	300	0.91
603H-3201	32 1-1/4		32+1.0	39.1±0.2	42±0.3	12	30	420	0.99
603H-3801	38 1-1/2		38+1.3	44.9±0.2	47.9±0.3	10	25	500	1.23
603H-5101	51 2		51+1.0-0.6	58.2±0.2	62.8±0.3	7	17.5	630	1.78

Two layers of steel wire braided hose technology parameters

Hose Specification	Nominal diameter mm in		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603H-0602	6	1/4	6+1.0+0.1	13.4±0.2	16.5±0.3	60	150	100	0.41
603H-0802	8	5/16	8+0.5-0.3	15.2±0.2	18±0.3	54	135	115	0.5
603H-1002	10 3/8		10+0.1-0.7	17.2±0.2	20.5±0.3	50	125	130	0.6
603H-1302	13 1/2		13+0.5-0.7	21.4±0.2	24±0.3	45	112.5	180	0.71
603H-1602	16 5/8		16+0.7-0.5	24±0.2	27±0.3	40	100	200	0.88
603H-1902	19 3/4		19+0.8-0.4	27.5±0.2	30.5±0.3	35	87.5	240	1.03
602H-2202	22 7/8		22+0.5-0.4	29.7±0.2	33.5±0.3	32	80	280	1.22
603H-2502	25 1		25+1.4-0	33.8±0.2	37±0.3	30	75	300	1.31
603H-3202	32 1-1/4		32+1.0-0.6	40.8±0.2	44±0.3	23	57.5	420	1.46
603H-3802	38 1-1/2		38+1.3-0.3	46.6±0.2	50.5±0.3	18	45	500	2.1
603H-5102	51 2		51+1.0-0.6	60±0.2	64.8±0.3	11	27.5	630	2.5

Three layers of steel wire braided hose technology parameters

Hose Specification	Nominal diameter mm in		Hose diameter mm	Enhancement layer outer diameter mm	Reference diameter mm	Pressure of work MPa	Burst pressure MPa	Minimum bending radius mm	Hose theoretical weight Kg/m
603H-0803	8	5/16	8+0.5-0.3	16.8±0.2	20±0.3	88	220	115	0.68
603H-1003	10	3/8	10+0.1-0.7	19±0.2	22.3±0.3	72	180	130	0.87
603H-1303	13 1/2		13+0.5-0.7	23±0.2	26±0.3	64	160	180	0.96
603H-1603	16 5/8		16+0.7-0.5	25±0.2	29±0.3	56	140	200	1.2
603H-1903	19 3/4		19+0.8-0.4	29.2±0.2	32.8±0.3	44.8	112	240	1.4
602H-2203	22 7/8		22+0.5-0.4	32±0.2	35±0.3	40	100	280	1.6
603H-2503	25 1		25+1.4-0	35.5±0.2	39±0.3	38	96	300	1.8
603H-3203	32 1-1/4		32+1.0-0.6	42.5±0.2	47±0.3	30.4	76	420	2.1
603H-3803	38 1-1/2		38+1.3-0.3	48.3±0.2	53±0.3	24	60	500	2.63
603H-5103	51 2		51+1.0-0.6	61.8±0.2	66±0.3	10	40	630	3.03

Maylead Group was started since 2001. Our mother business was manufacturing coated sand for the casting industry. Then upon the customers' requirement, we started the manufacturing of hydraulic hoses for industry application since 2006.
With the company development, MAYLEAD invested more than 12 million us dollars to build the new factory in Nantong Haimen City. It is a beautiful coastal city, which is also within 100km from the international economy center Shanghai.
MAYLEAD focuses on the professional production and R&D of steel wire braided hose, steel wire spiral rubber hose, fiber braided hose and hose assembly. MAYLEAD has advanced production equipment, advanced manufacturing technology, and strict QC system. What's more, in order to upgrade the management, MAYLEAD has passed the "Environmental management system", "Quality Management System", "Occupational Health &Safety Management System "certified by CICC& IAF&CNAS. Also MAYLEAD has got more than 15 patents, therefore MAYLEAD is granted as a high new technology enterprise by the government.

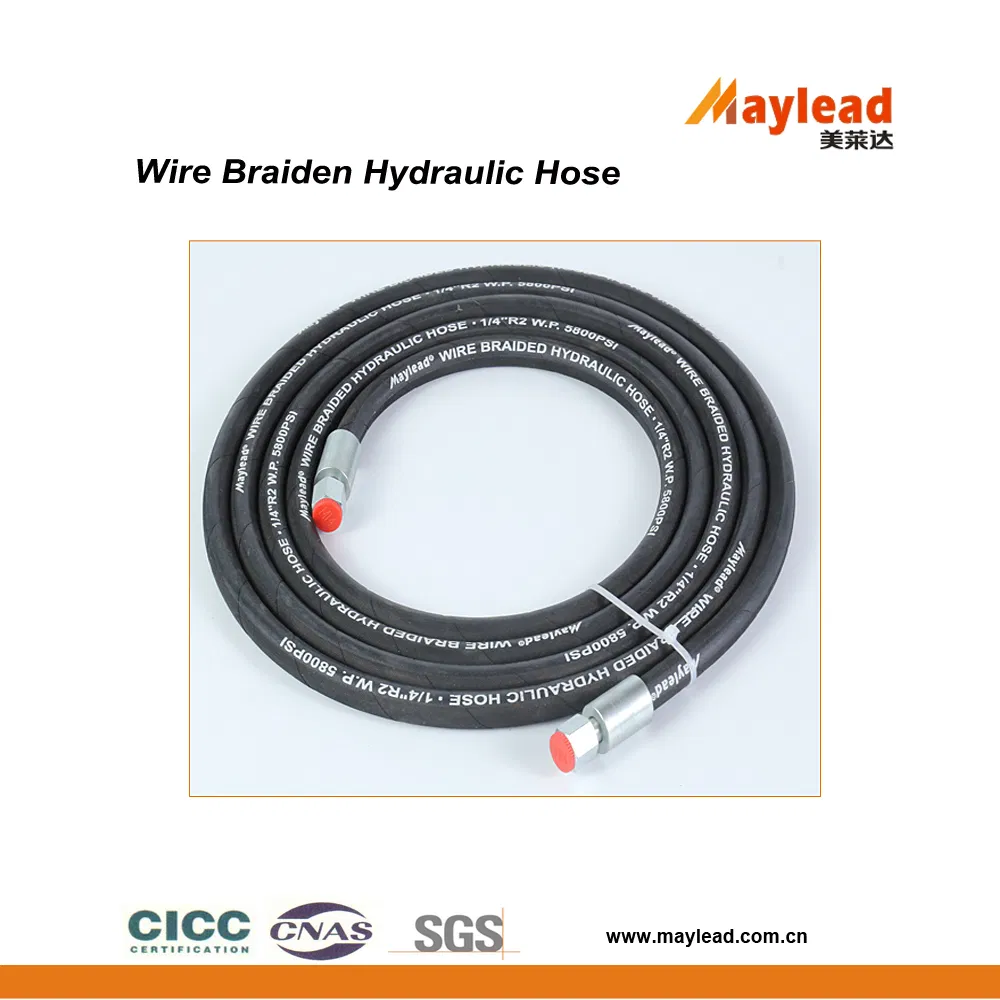

3801 High Pressure Steel Wire Braided Hydraulic Hose GB/T3683 En853-1sn

MAYLEAD insists to provide customers with the high quality goods, on time customer support. Our products have been sold widely domestically especially in top ranking industry companies, and foreign countries such as East Europe, Russia, Southeast Asia etc. We have gained satisfaction from our clients home and abroad.
MAYLEAD takes "high quality, innovation, integrity management, keep improving" as the enterprise purpose, we sincerely cooperate with all our clients worldwide and to create more brilliant future together with our clients!
3801 High Pressure Steel Wire Braided Hydraulic Hose GB/T3683 En853-1sn

Q&A
1. Q: How long after the order can ship?

A: We confirm the production time of 10 to 20 days after the order,
If you have urgent goods, we will check how to help you receive the goods more quickly

2. Q: What kind of freight do you offer?
A: By ship/by train/by plane

3. Q: How do you ensure the safety of your products during transportation?
A: We'll pack them one by one, using bubble wrap in combination with the cartons

4. Q: What is our advantage?
A: We provide customized services, Dimensions and filaments are fabricated to meet your requirements.
