Product Description
Factory Pex Pipes Price Piping Systems For Floor Underfloor Heating Pex-a Pipe

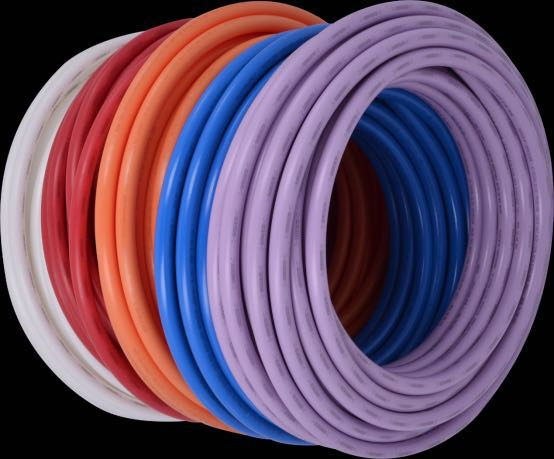

PEX-a (cross-linked polyethylene) pipes are made of high density polyethylene (HDPE) from LG chemical company. Our PE-Xa pipe has excellent chemical, corrosion, temperature and pressure resistance.Meanwhile it has achieved an average 83% of cross-linking degree during the manufacturing process, which is higher than the average degree in this sector.Ritable PE-Xa pipe has been exported to many countries and recognized by more and more user all over the world.
| Model NO. | PEX-a | Usage | Floor Heating |
| Packing | PP Bag | Package | 100m-400m |
| Size | 16mm-63mm | Thickness | 1.8mm-5.8mm |
| Std | ISO | Temperature | -20ºC-95ºC |
| Application | Supply Water, Floor Heating | OEM | We are factory,OEM is OK. |
| Connection | Press Fitting | Fitting Type | Elbow,Tee,Coupling |
| Fitting Material | Copper Plastic | Trademark | RITABLE |
| Origin | China | Working Life | 50 years under normal conditions |
Size
| DN/mm | Average limit deviation | S5 | S4 | ||
| Wall thickness (mm) | Limit deviation | Wall thickness (mm) | Limit deviation | ||
| 16 | +0.3 | 1.8 | +0.3 | 2.0 | +0.3 |
| 20 | +0.3 | 1.9 | +0.3 | 2.3 | +0.3 |
| 25 | +0.3 | 2.3 | +0.4 | 2.8 | +0.4 |
| 32 | +0.3 | 2.9 | +0.4 | 3.6 | +0.5 |
| 40 | +0.4 | 3.7 | +0.5 | 4.5 | +0.6 |
| 50 | +0.5 | 4.6 | +0.6 | 5.6 | +0.7 |
| 63 | +0.6 | 5.8 | +0.7 | 7.1 | +0.9 |
Product Advantage:
Product Application
1. Cold and hot water system for buildings.
2.Air-condition system and sewage treatment system.
3. Concentration heating system in the residential houses
4. Floor radiant heating system and snow melting system of airport and traffic network.
