Product Description

Heat resistant hose SAE 100R14 hose with steel wire cover

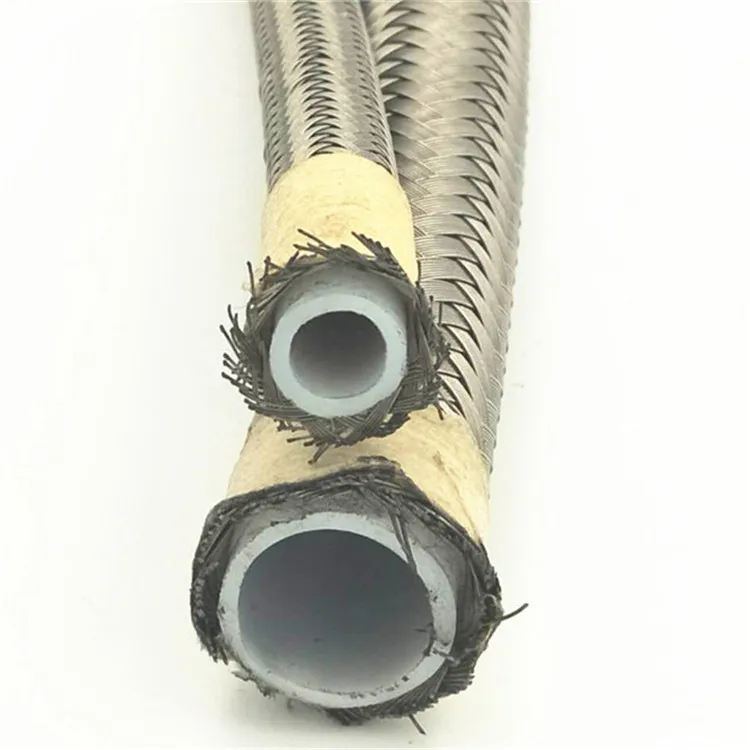

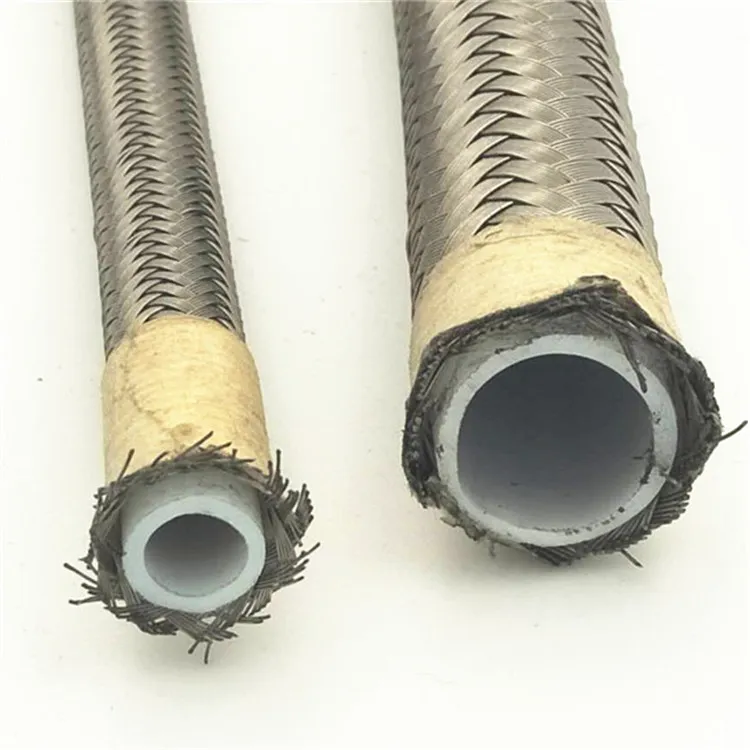

Stainless steel braided Teflon hose Convoluted ptfe hose:
Tube:Temperature chemical resistant PTFE material
Cover:Braided with stainless steel
Temperature range: -60 celsius to 260 celsius.

Stainless steel braided Teflon hose Convoluted ptfe hose:

Hose ID		Hose OD	Wall thickness	Working Pressure		Burst Pressure		Minimum Bend Radius
inch	mm	mm	mm	Mpa	Bar	Mpa	Bar	mm
1/4	4.65~5.16	7.32~8.43	0.89	4330	299	13000	897	71
5/16	5.97~6.81	8.26~9.42	0.76	4000	276	12000	828	76
3/8	7.54~8.38	10.36~11.63	0.76	3330	230	10000	690	127
1/2	9.93~10.64	12.78~14.10	0.89	2660	183	8000	552	133
5/8	12.57~13.34	12.75~16.76	0.76	2330	161	7000	483	177
3/4	15.24~16.51	18.62~20.14	0.76	2000	138	6000	414	203
1	21.46~22.99	24.64~26.95	0.89	1500	103	4500	310	241
1-1/4	27.80~29.40	31.90~33.50	1	600	41	2500	172	406

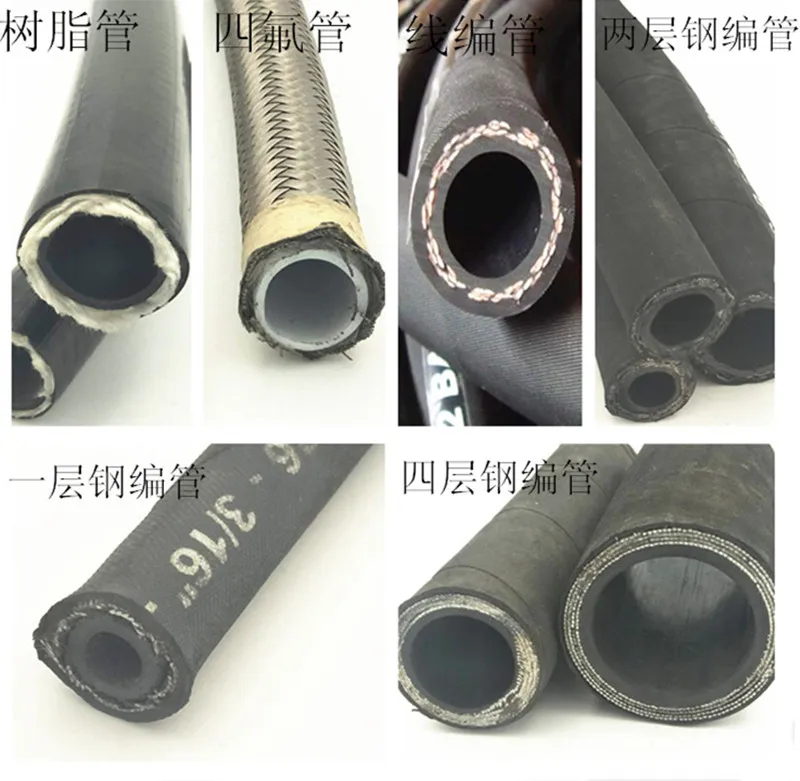

Supply other types hose:
1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5

2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15

3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6

4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8

5.Steam hose
Wire braided steam hose

6.PTFE Hose
SAE 100 R14
