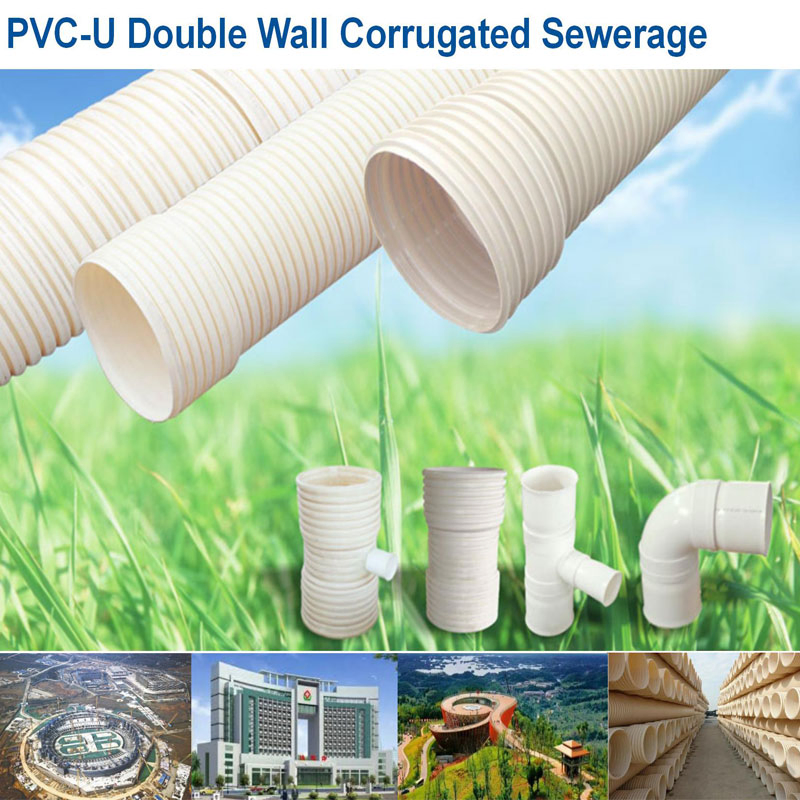

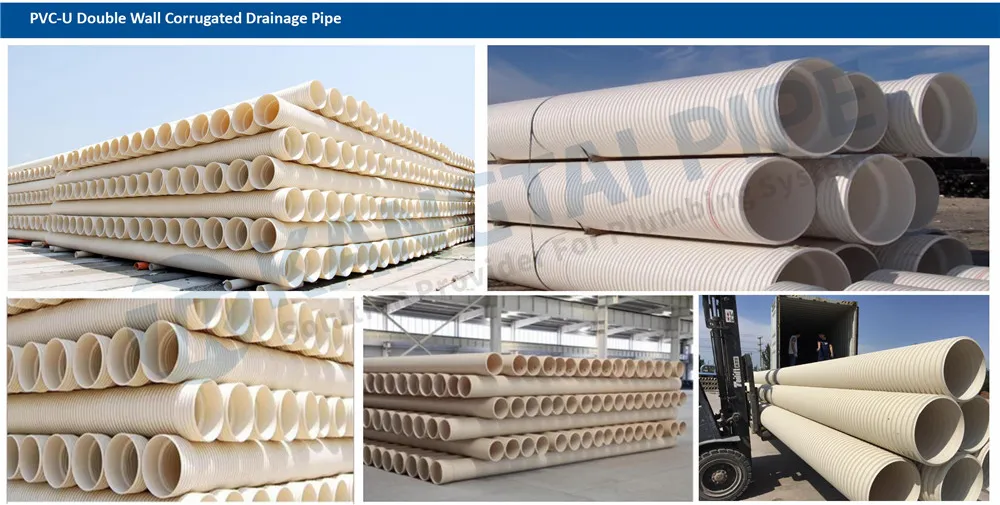

Double Wall Corrugated PVC Dwv Pipe Sn4 ID315 Black
Product Description Product NamePVC-U Double Wall Corrugate Pipe ClassificationDrainage Sewage & Sewerage Piping and Fitting SeriesSpecificationID110-ID800mm included belled endRaw-materialPVCRing StiffnessSN4, SN8Features· Excellent impact & chemical corrosion, age, impact resis......
Send Inquiry
Product Description
| Product Name | PVC-U Double Wall Corrugate Pipe |
| Classification | Drainage Sewage & Sewerage Piping and Fitting Series |
| Specification | ID110-ID800mm included belled end |
| Raw-material | PVC |
| Ring Stiffness | SN4, SN8 |
| Features | · Excellent impact & chemical corrosion, age, impact resistance. · TIR:≤10% · Large flow, smoothly, good sealing connection, · Lifespan: over 50 years |
| Standard | GB/T, ISO, EN |
| Color | White or customized. |
| Joint Method | Socket directly with sealing ring |
| Form Supplied | · 4m or 6m straight length ·Other forms are also available upon request |
| Application | · Underground municipal drainage & sewage discharge field · Chemical & mine industry · High voltage cable conduit. |
| Item | Specification(ID:mm) | |||||||||
| 110 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 710 | 800 | |
| Min Inner Diameter | 97 | 135 | 172 | 216 | 270 | 340 | 432 | 540 | 614 | 680 |
| Max Mean Outer Diameter | 110.4 | 160.5 | 200.6 | 250.8 | 280.9 | 401.2 | 501.5 | 631.9 | 712.1 | 802.4 |
| Min Mean Outer Diameter | 109.4 | 159.1 | 198.8 | 248.5 | 278.4 | 397.6 | 497 | 626.3 | 705.8 | 795.2 |
| Min Inner Diameter of Spigot End | 110.4 | 160.5 | 200.6 | 250.8 | 316 | 401.2 | 501.5 | 631.9 | 712.1 | 802.4 |
| Min Length of Spigot End | 32 | 42 | 50 | 55 | 62 | 70 | 80 | 93 | 101 | 110 |
| Min Wall Thickness | 1.0 | 1.2 | 1.4 | 1.7 | 1.9 | 2.3 | 2.8 | 3.3 | 3.8 | 4.1 |

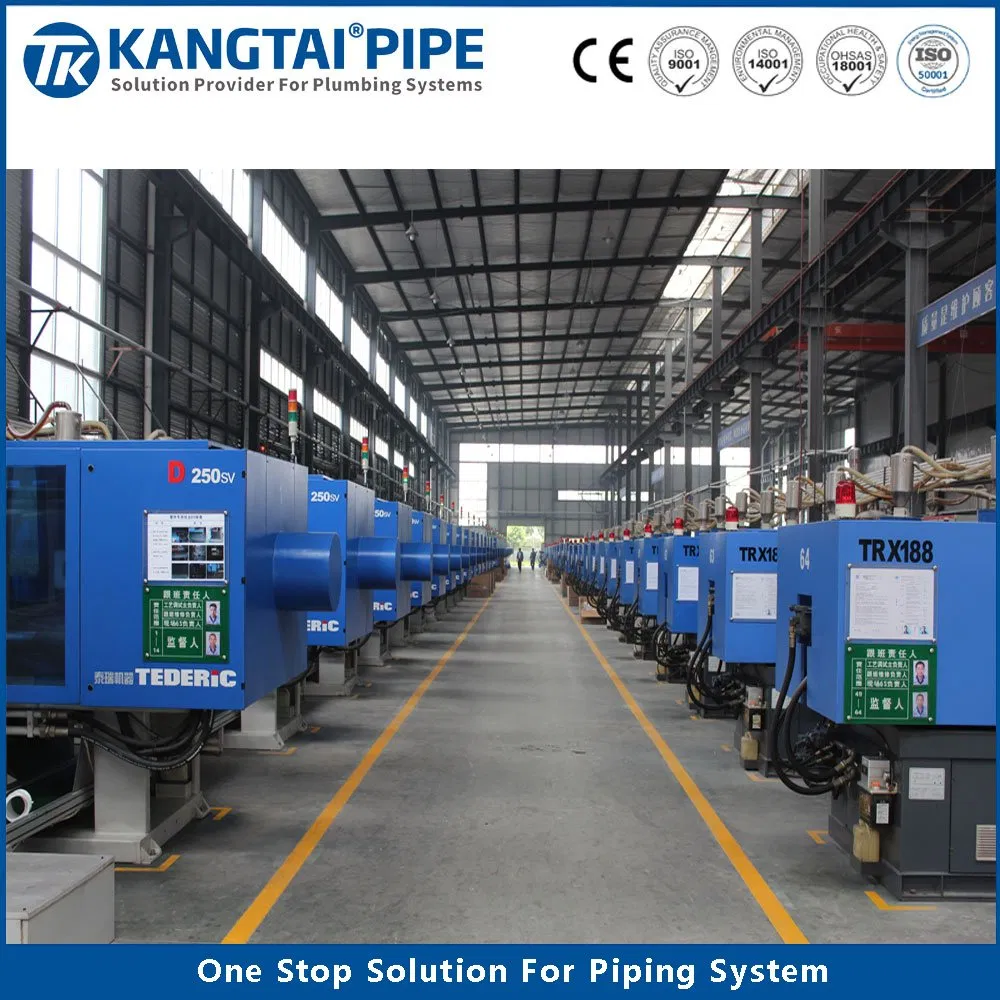

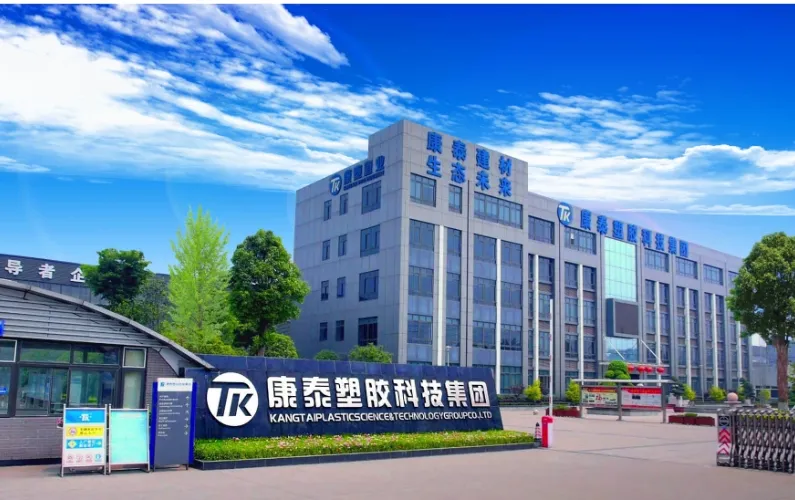

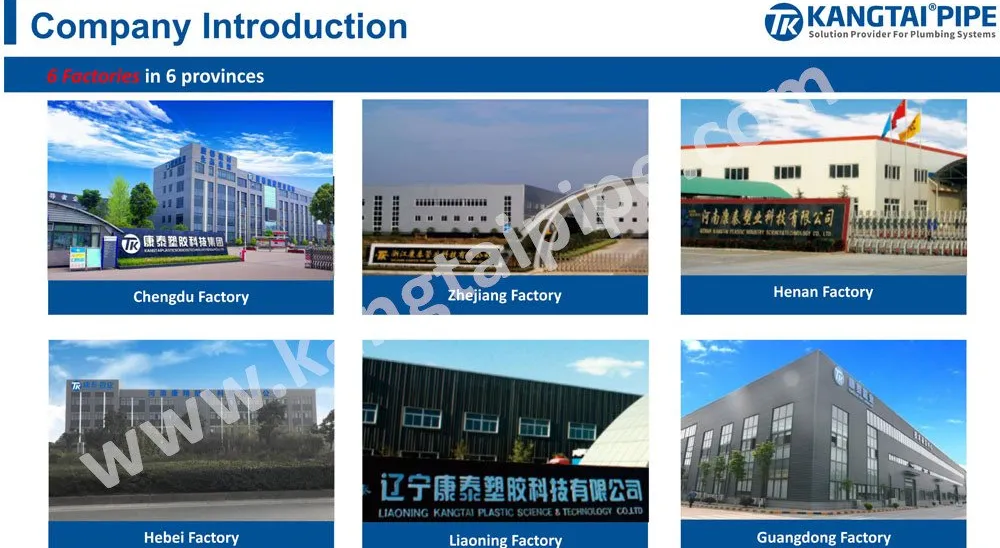

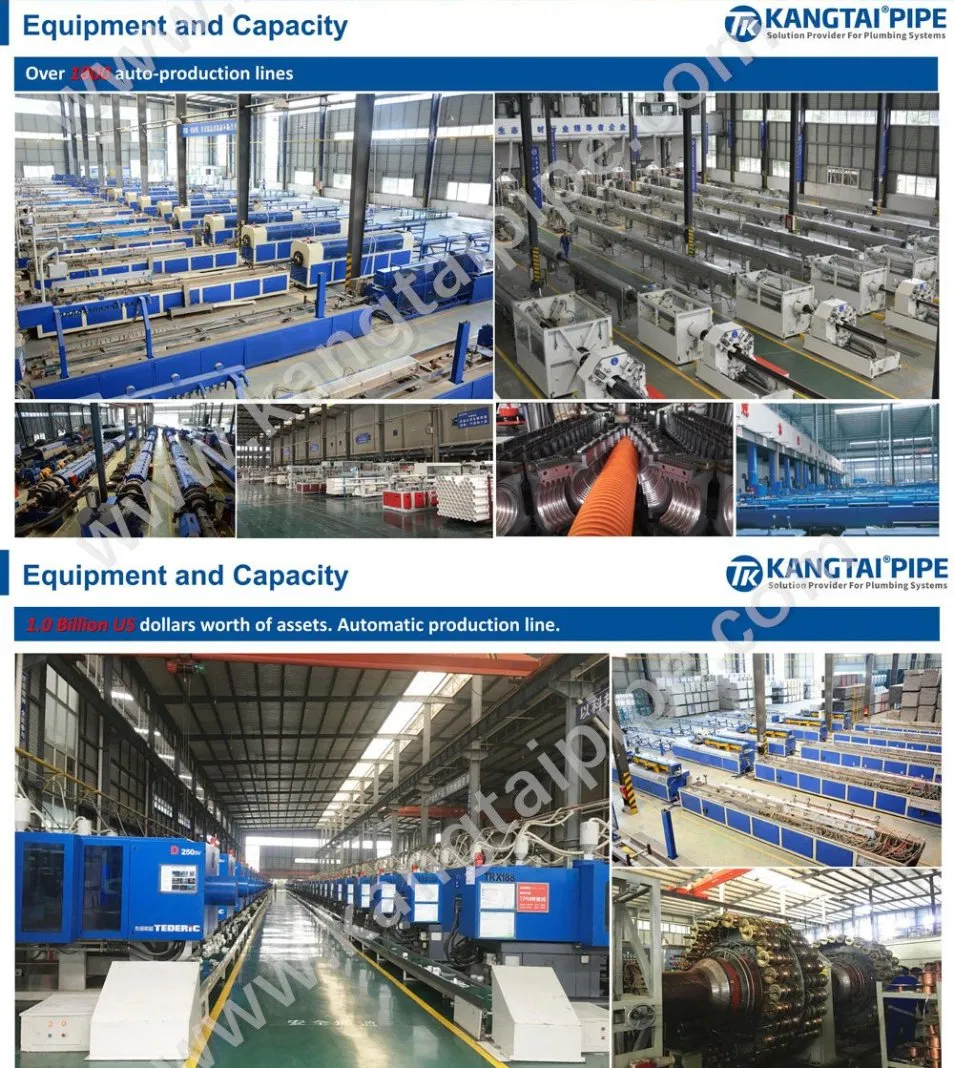

KANGTAI is founded in 1999, a modern manufacturer group that is dedicated to innovation, mass production, and sales. Established 6 members of manufacturing bases separately located in Chengdu, Zhejiang, Henan, Hebei, Liaoning, and Guangdong across China. The headquarters base is located in Chengdu with land-coverage over 200,000 square meters. KANGTAI registered capital is RMB 284.37 million yuan, Total assets are RMB 2 billion yuan. Annual production capacity above 800,000 Tons, over 10,000 specifications, over 1,000 pcs dedicated production sets of equipment, and 2,000 employees. KANGTAI has become one of the largest mass scales of chemical construction materials manufacturing bases in China with over 21 years of experience.
