ISO Standard Automotive Raw Edge Cogged V Belt- 3vx
ISO standard Automotive Raw Edge Cogged V Belt-3VXProduction description of OFT Cogged Raw Edge BeltsDetails of OFT rubber belts--Material: CR / HNBR--Construction: 1.Top Surface: High adhesion chloroprene rubber cushion compound2.Tension members: Low stretch polyester tension cord3.Base: Chloropren......
Send Inquiry
Product Description
ISO standard Automotive Raw Edge Cogged V Belt-3VX
Production description of OFT Cogged Raw Edge Belts
Details of OFT rubber belts
--Material: CR / HNBR
--Construction:
1.Top Surface: High adhesion chloroprene rubber cushion compound
2.Tension members: Low stretch polyester tension cord
3.Base: Chloroprene rubber compound with transversely oriented fibers
4.Cover: fabric
Characters of OFT cogged raw edge belts
*1: Extremely small pulley diameters
*2: High speeds
*3: Extraordinary power transmission requirements
*4: Anti-static
*5: High wear resistance
TDS of OFT cogged raw edge belts
--Property of cogged raw edge belts
Applications of OFT cogged raw edge belts
Timing belt is widely used in agricultural machines, projects, domestic appliances, machine tools, medical equipment, industrial equipment and so on.
Models and types of OFT cogged raw edge belts
OEM support
Description of OFT company
JIANGSU OFT TRANSMISSION BELTS CO.LTD., which is further expanded from the existing Ningbo Ophte Rubber Co., Ltd., is equipped with more sophisticated technology and accurate devices. The factory has been put into operation since Aug., 2012, which covers an area of 33,000 square meters. OFT is a modernized enterprise, integrating D&R, production and marketing.
Since its foundation in 2004, our company has taken technology as the core, committed itself to the development and application of new materials and advanced technology, and achieved significant results. The quality of its product has been in the leading level of the same industry in China.
Workshop of OFT
We have independently developed the HNBR coating timing belt, one-step vulcanized thickening coated PK belts with many choices in colors and CR wrapped belts with strengthened intensity.
Shipping details
OFT cogged raw edge belts mainly serve Aftermarkets, and more than 90% of products are exported to Eastern Europe, Western Europe, North America, Central and South America, Oceania, etc.
Free samples supplied by OFT
Production description of OFT Cogged Raw Edge Belts
Details of OFT rubber belts
--Material: CR / HNBR

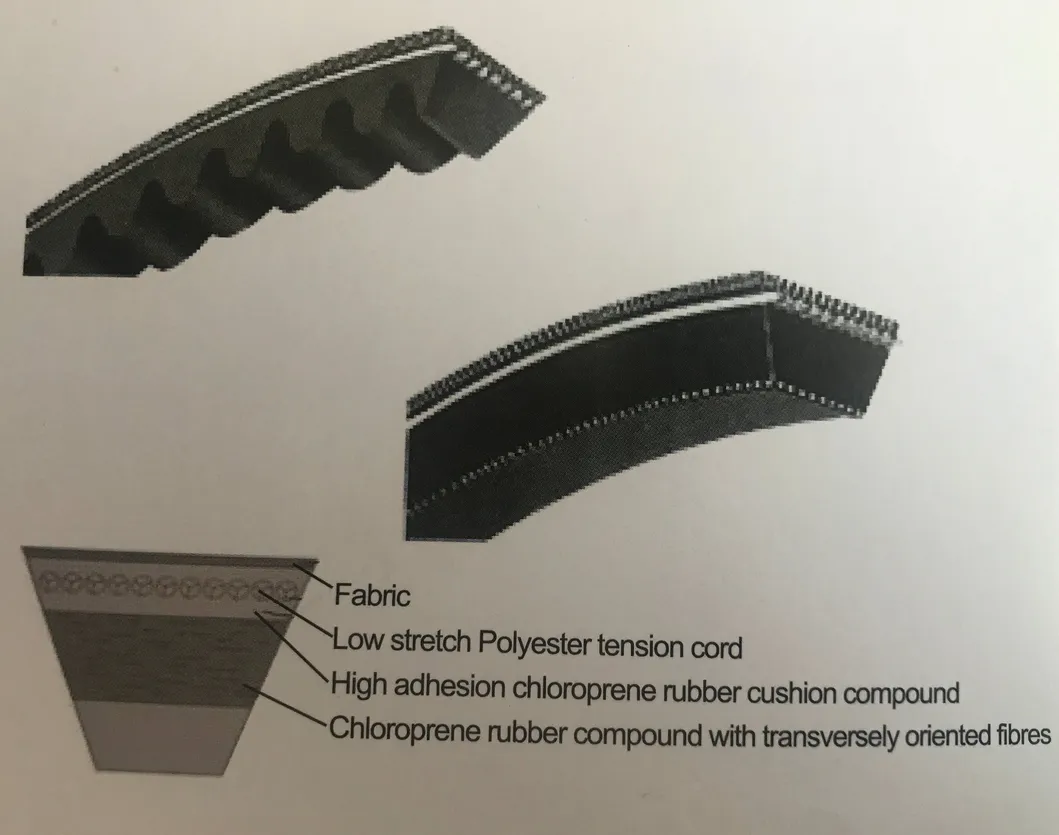

--Construction:
1.Top Surface: High adhesion chloroprene rubber cushion compound
2.Tension members: Low stretch polyester tension cord
3.Base: Chloroprene rubber compound with transversely oriented fibers
4.Cover: fabric
Characters of OFT cogged raw edge belts
*1: Extremely small pulley diameters
*2: High speeds
*3: Extraordinary power transmission requirements
*4: Anti-static
*5: High wear resistance
TDS of OFT cogged raw edge belts
--Property of cogged raw edge belts
| Test Item | Test Result |
| Tension strength (≥KN/25.4mm) | 0.59-10.8 (according to types) |
| Elongation (≤ % ) | 4.0 (all types) |
| Loading (KN/25.4mm) | 0.49-8.64 (according to types) |
Applications of OFT cogged raw edge belts
Timing belt is widely used in agricultural machines, projects, domestic appliances, machine tools, medical equipment, industrial equipment and so on.
Models and types of OFT cogged raw edge belts
| Type | Pb(mm) | Ht(mm) | Hs(mm) |
| ZX/X10 | 9.525 | 1.91 | 4.10 |
| AX/X13 | 9.525 | 2.29 | 4.50 |
| BX/X17 | 9.525 | 3.50 | 5.50 |
| CX/X22 | 8.000 | 3.04 | 5.20 |
| XPZ | 9.525 | 3.20 | 5.40 |
| XPA | 8.000 | 2.95 | 5.20 |
| XPB | 9.525 | 3.53 | 5.70 |
| XPC | 9.525 | 2.32 | 4.62 |
| 3VX | 9.525 | 2.80 | 2.80 |
| 5VX | 8.000 | 3.05 | 3.05 |
OEM support
Description of OFT company
JIANGSU OFT TRANSMISSION BELTS CO.LTD., which is further expanded from the existing Ningbo Ophte Rubber Co., Ltd., is equipped with more sophisticated technology and accurate devices. The factory has been put into operation since Aug., 2012, which covers an area of 33,000 square meters. OFT is a modernized enterprise, integrating D&R, production and marketing.
Since its foundation in 2004, our company has taken technology as the core, committed itself to the development and application of new materials and advanced technology, and achieved significant results. The quality of its product has been in the leading level of the same industry in China.

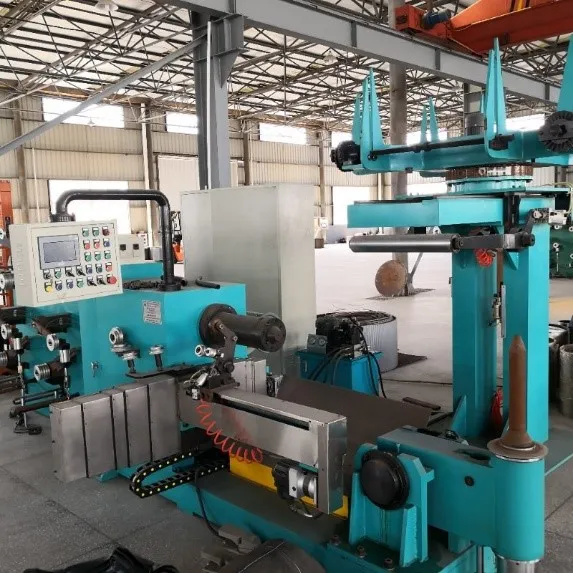

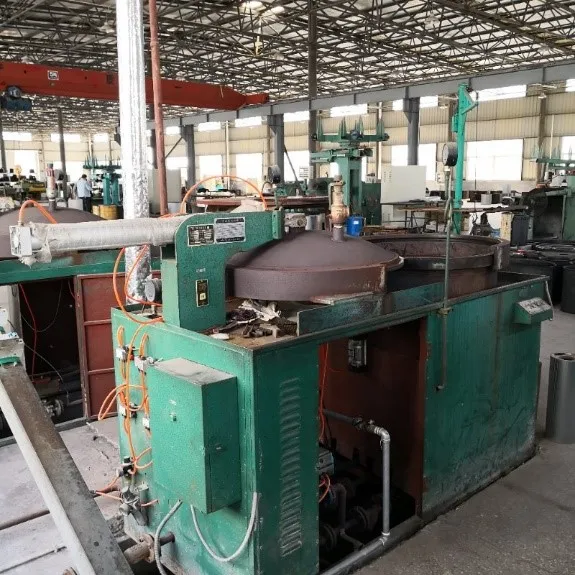

Workshop of OFT
We have independently developed the HNBR coating timing belt, one-step vulcanized thickening coated PK belts with many choices in colors and CR wrapped belts with strengthened intensity.
Shipping details
OFT cogged raw edge belts mainly serve Aftermarkets, and more than 90% of products are exported to Eastern Europe, Western Europe, North America, Central and South America, Oceania, etc.
Free samples supplied by OFT
