Product Description

Welding PVC Curtain with Reach Standard

1.Brief Introduction :

Welding Strip Curtains are designed to save energy, protect workers, and reduce noise in warehouse and factory applications. Specifically designed for doors that enclose areas where welding is being performed. Its tinted color helps reduce the incidental effects of bright, ultra violet light from welding arcs. Sparks bounce off the thick material, yet it is transparent enough to allow supervisors and others to view the welding area.

2. Colors

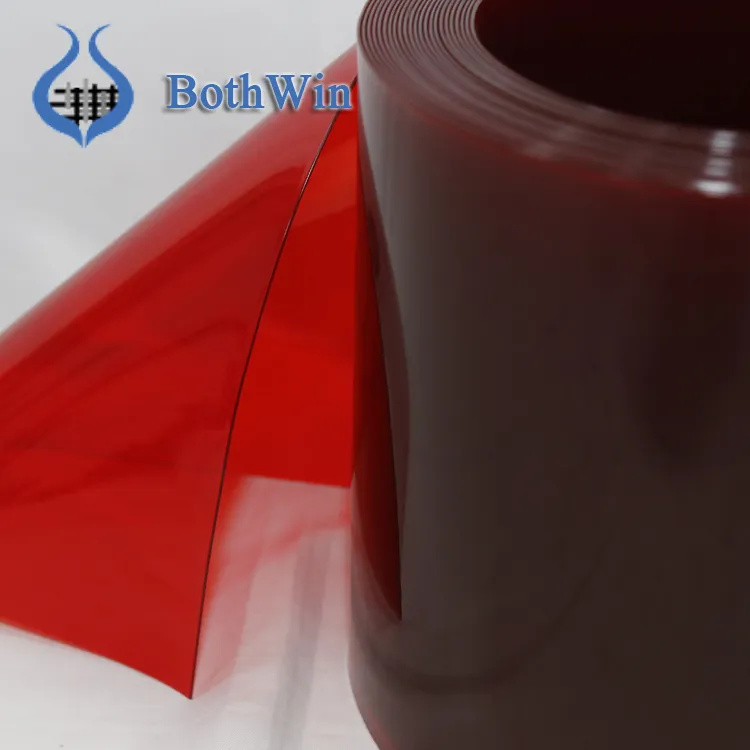

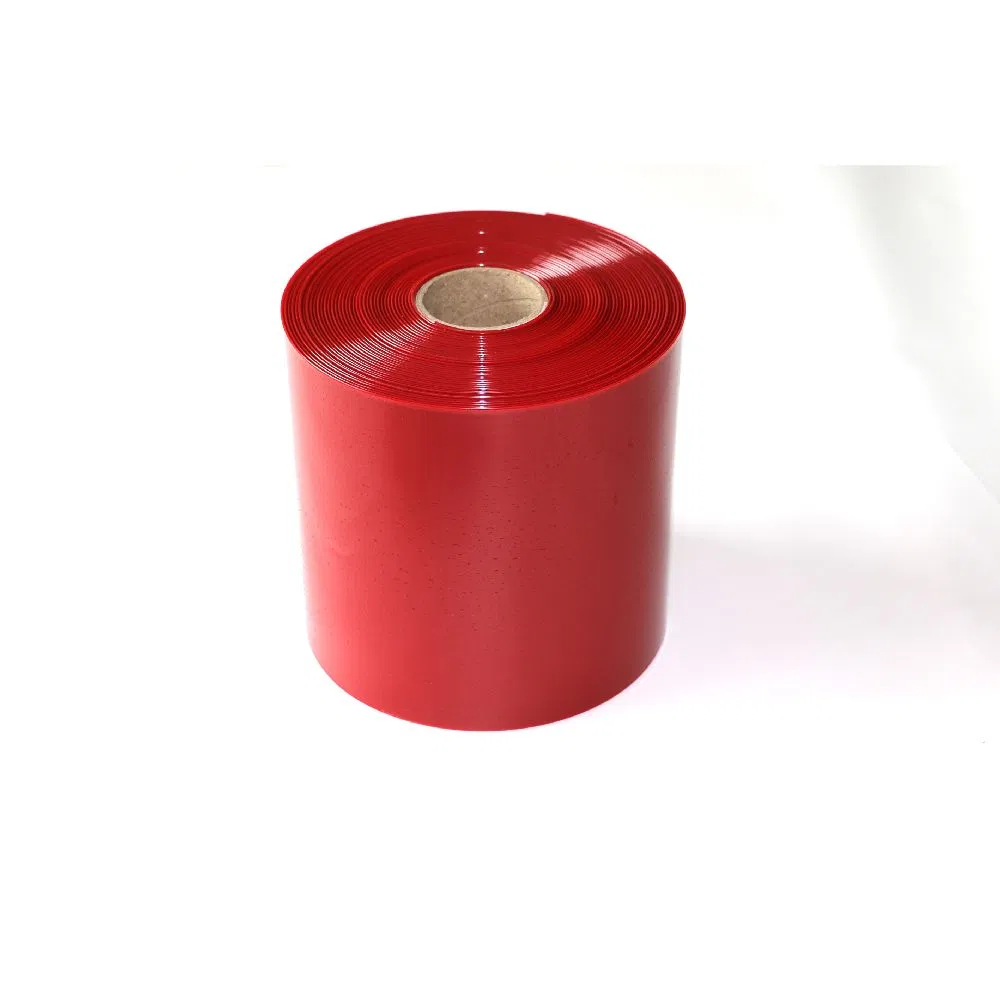

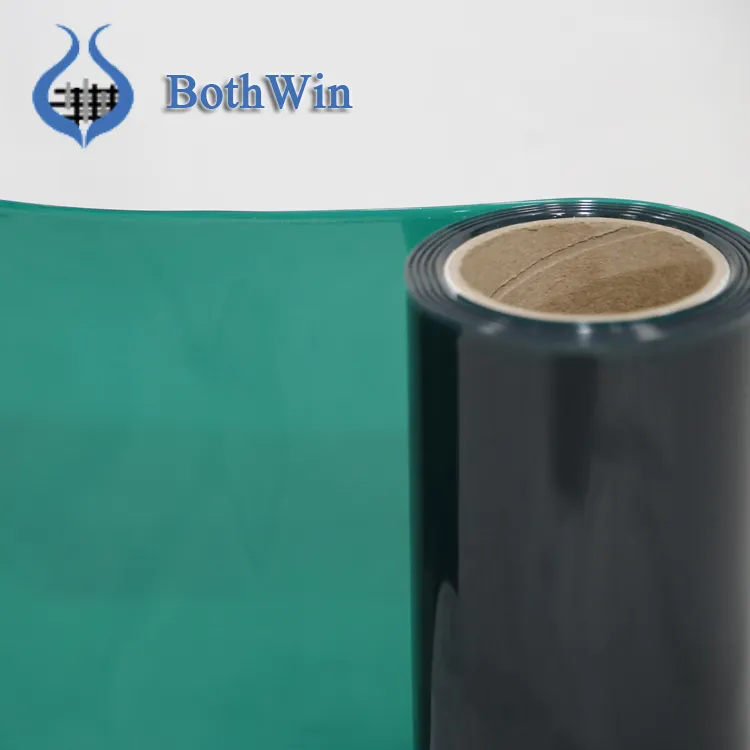

Dark Bronze, Dark Green & Ultra Violet Red

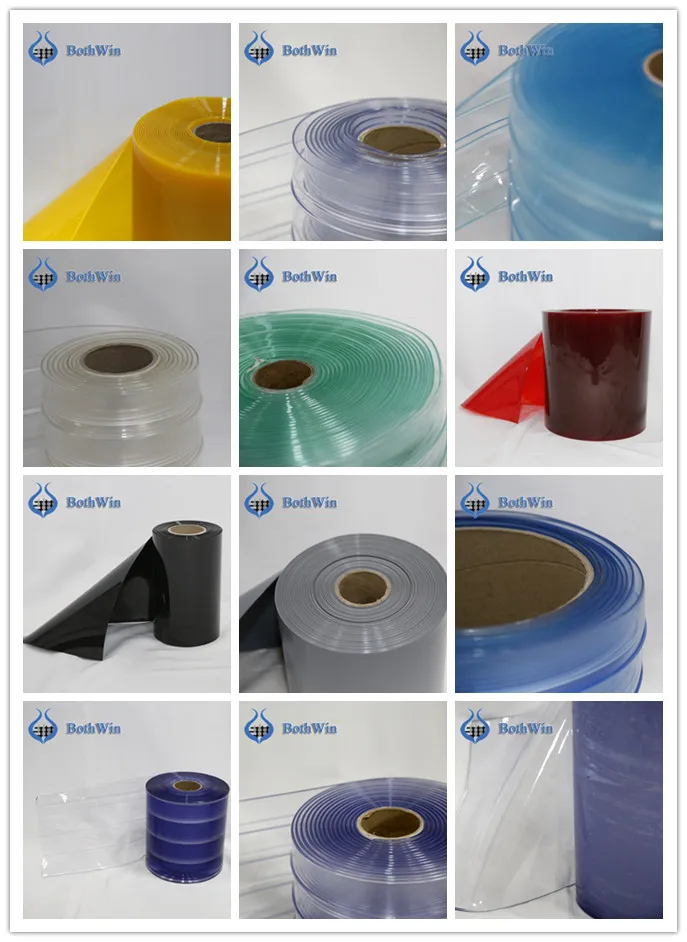

3. Main products :

Main products	Size	Polar size	Applications	Color
Standard clear door curtains	Thickness:1mm-10mm Width:0.1m to 1.8m Length:1 m to 50m	2mmx200mm, 3mmx300mm, 4mmx400mm, 3mmx200mm, 1mmx200mm, 2mmx300mm.	Personnel doors at commercial and manufacturing locations.	stand clear, blue, yellow, red, dark green,etc. we can make any color depending on your requirement.
Polar door curtains
Yellow anti-Inset door curtains
Opaque pvc strip curtain
Welding strip curtains
Anti-static door curtains
The anti-ultraviolet door curtain
Frosted pvc strip curtain
Pvc strip curtain
Pvc soft sheet	Thickness:0.3mm- 8mm Width:500mm-1800mm Length:10m-50mm

Technical data sheet
PVC strip curtain
Performance Test	Standard Clear Formula	Cold Formula	super polar curtain	Unit
Softness A Hardness	75+-5	65+-5	65+-5
Brittle Point	Approx -35	Approx -45	Approx -45	Degrees C
Falling Ball Test	"-20 No Break	"-40 No Break	"-50 No Break	Degrees C
Flexibility	"-20 No Break	"-40 No Break	"-50 No Break	Degrees C
Water Absorption	0.20%	0.20%	0.20%	%
Tensile Stress	340	420	420	%
Rupture Resistance	>5	>2	>2	N/mm
Reaction to Fire	Self-extinguishing	Self-extinguishing	Self-extinguishing	0
Flammability	Inflammable	Inflammable	Inflammable	0
Airborne Insulation	~35dB	~35 dB	~35 dB	0
Light Transmission	>80	>80	>80

4 Styles :

Smooth, Single Ribbed and Double Ribbed.

5 Standard size :

2mmX200mmX50m; 2mmX300mmX50m;
3mmX200mmX50m; 3mmX300mmX50m; 3mmX400mmX50m
4mmX300mmX50m; 4mmX400mmX50m

Welding PVC Curtain with Reach Standard

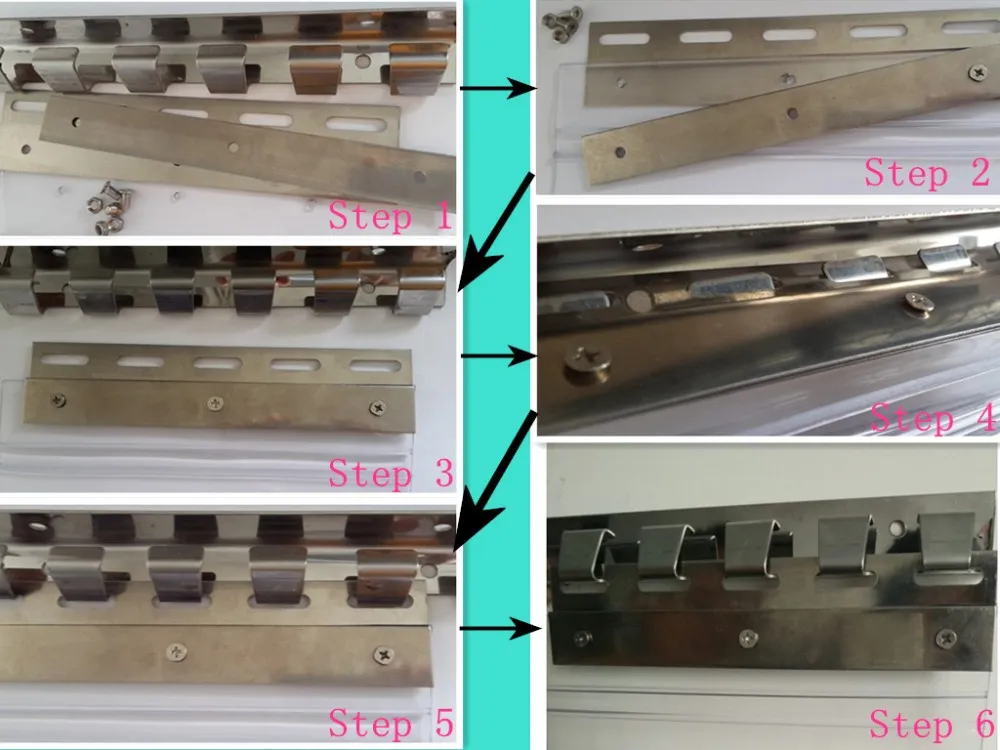

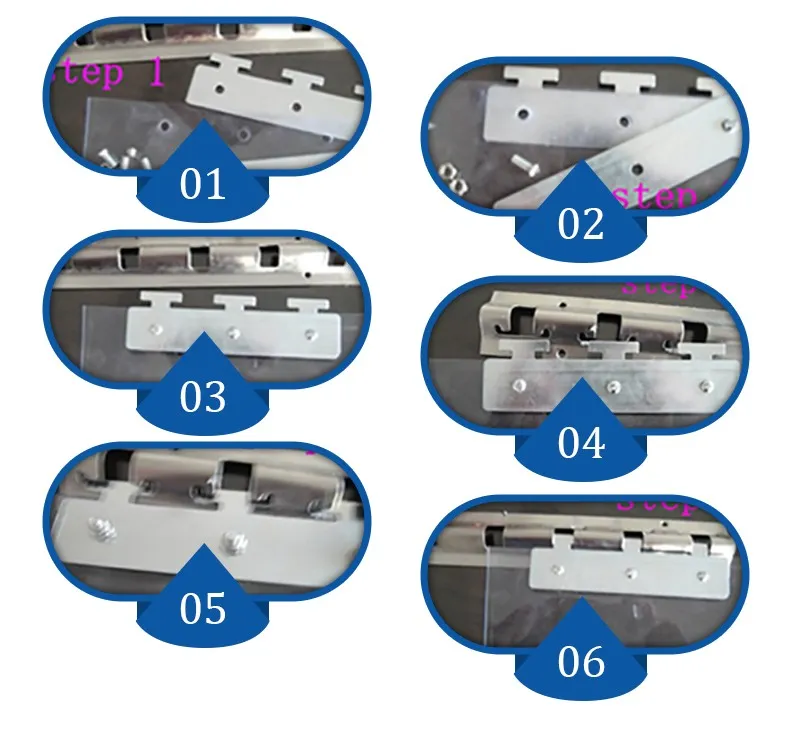

Hook-on system :

1. Rail Size: 1m(length)x1cm(thickness)
2. Clip Size: 150mm(w)x1mm(t)
   200mm(w)x1mm(t)
300mm(w)x1mm(t)

Material: Stainless Steel
Application: one set of hanger include 3 ways
  A. 1m rail, 8sets clips and 24 pcs screws, be applicable for 150mm and 200mm wide PVC strip
  B. 1m rail, 6sets clips and 18 pcs screws, be applicable for 200mm and 300mm wide PVC strip
  C. 1m rail, 4sets clips and 16 pcs screws, be applicable for 300mm and 400mm wide PVC strip

EUROPE

CHINA

Packing :

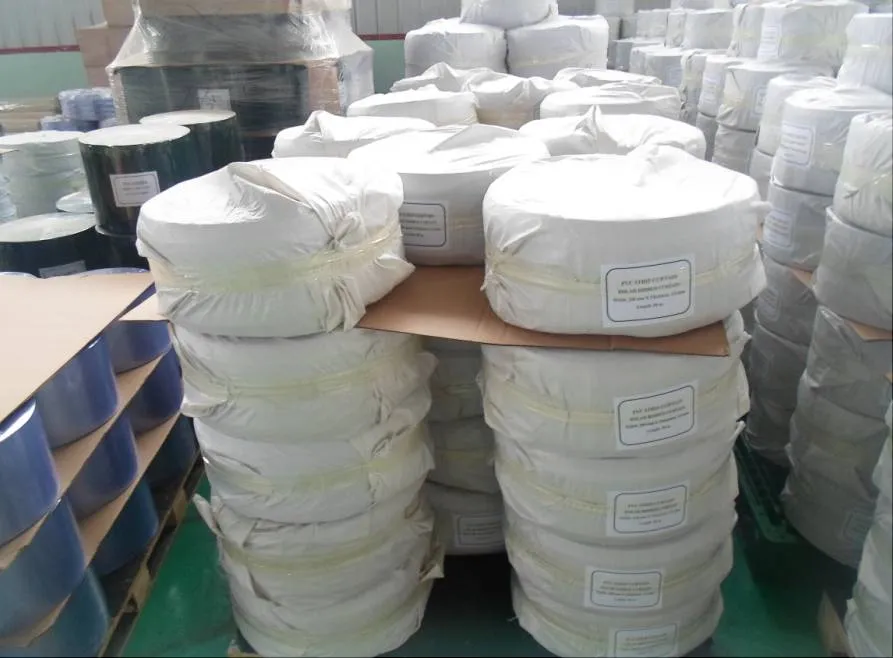

Usually we packed the goods with plastic bags after rolled together by 50m, and then packed to the pallets to meet transport facility. We also can design carton boxes and Non-fumigation boxes for special need in order to avoid damage through transport.
