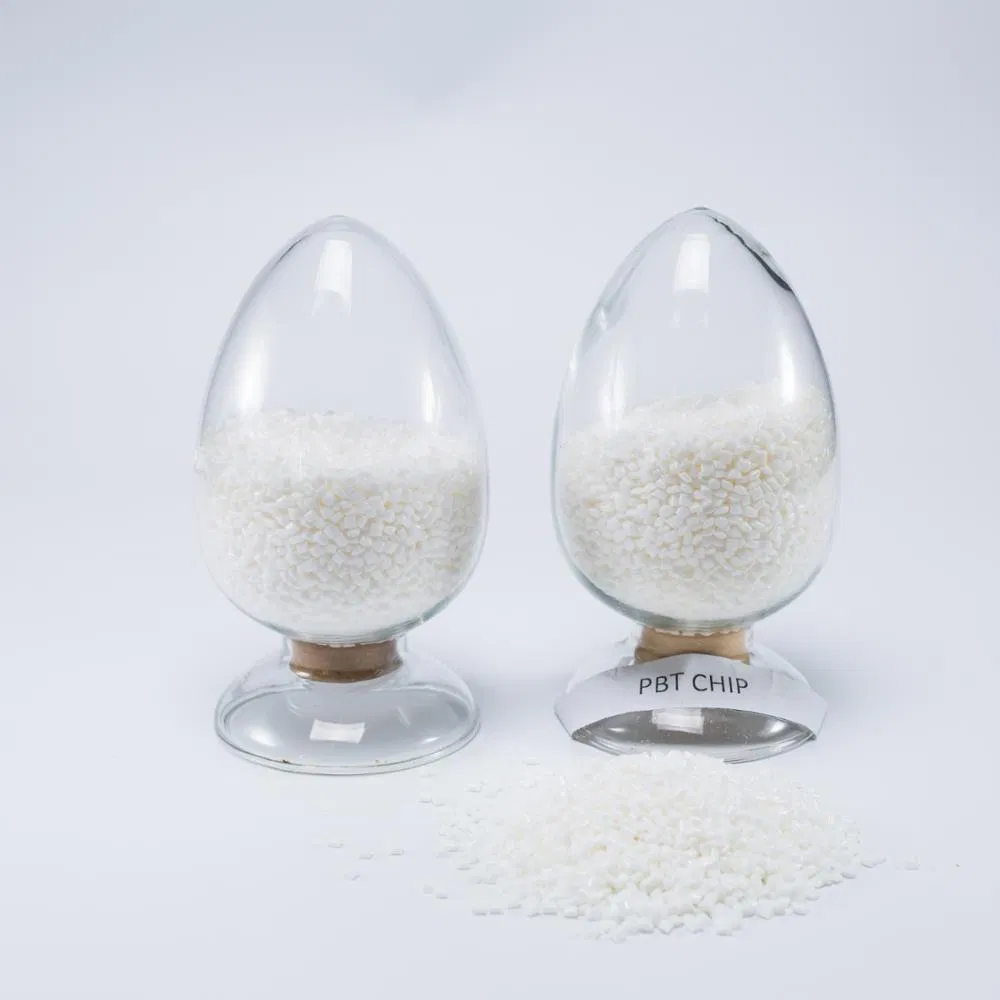

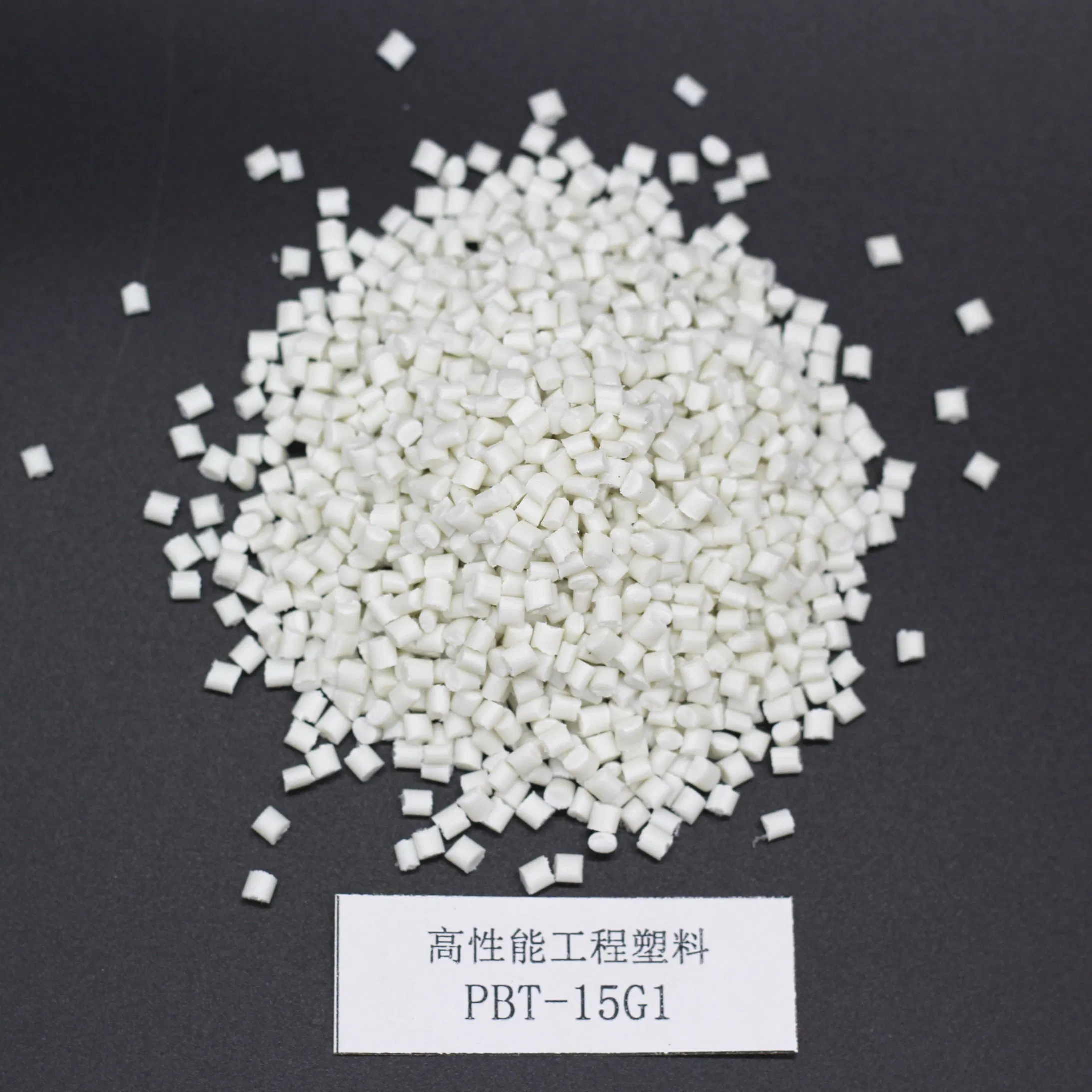

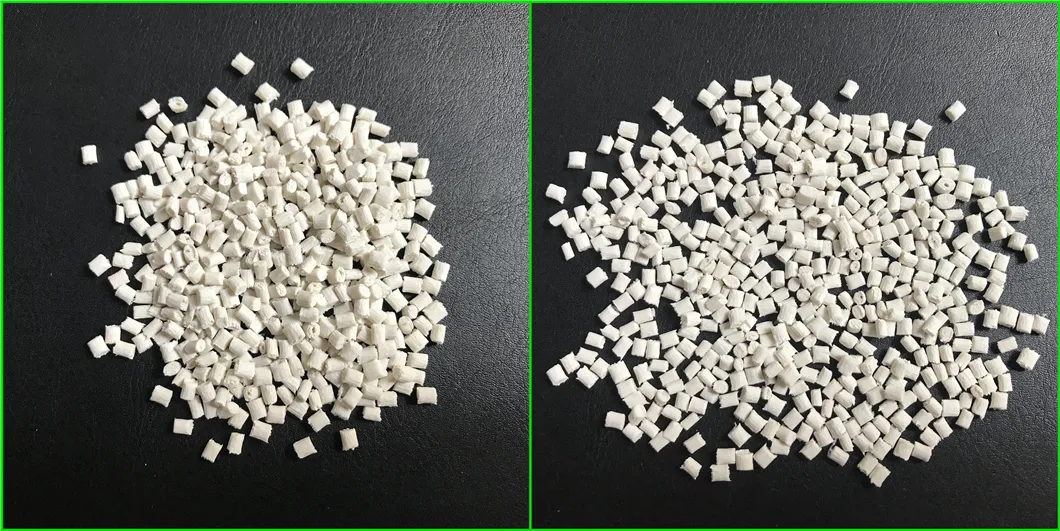

Polybutylene Terephthalate, Injection Mold 30% Glass Fiber Reinforced PBT GF30 Granules
Polybutylene Terephthalate, Injection Mold 30% Glass Fiber Reinforced PBT GF30 GranulesGRADEFEATURESAPPLICATIONGF Reinforced PBT10%-50% GF reinforced high strength, low warpage.Electric cooker, soybean milk, and juice maker and other home appliances, air conditions shell, car accessories, fan heater......
Send Inquiry
Product Description
GRADE | FEATURES | APPLICATION |

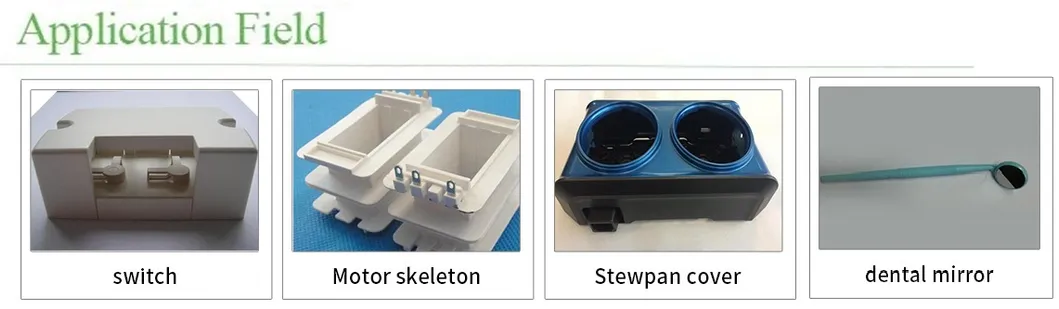

GF Reinforced PBT | 10%-50% GF reinforced high strength, low warpage. | Electric cooker, soybean milk, and juice maker and other home appliances, air conditions shell, car accessories, fan heater, instrument panel, thermal jug... New Energy vehicle charging pile and charging gun, automotive, MCB, appliance parts, low-temperature resistant nylon tie band, power tools, office chair base, hydrant handle, ski equipment components, breaker, connector... Battery cell jar case, heating appliances case, panel, plug, electronic shell, instrument frame, auto parts and etc... |
Flame Retardant PBT | Fire-resistant V0-5VA, high toughness, easy de-molding. | |
High-Temperature PBT | High temperature resistant 108-115 degrees centigrade. |
PBT Polyethylene Terephthalate (D0715)| Product Description | Applications | ||||||||
| ·30%PBT 30% glass fiber reinforced PBT | · Injection molding | ||||||||
| · Excellent heat stability | · Good mechanical properties balance | ||||||||
| Properties | Test Method | Test Condition | Unit | Typical Values | |||||
| Physical properties | |||||||||
| Specific Gravity | ISO 1183 | 23ºC | g/cm3 | 1.41 | |||||
| Ash | ISO 3451 | 800ºC,30min | % | 15 | |||||
| Mechanical properties | |||||||||
| Tensile Strength | ISO 527 | 50mm/min | MPa | 140 | |||||
| Elongation at Break | ISO 527 | 50mm/min | % | 2.5 | |||||
| Tensile Modulus | ISO 527 | 1mm/min | MPa | 215 | |||||
| Flexural Modulus | ISO 178 | 2mm/min | MPa | 3200 | |||||
| Charpy Notched Impact Strength | ISO 179-1eA | 23ºC | kJ/m2 | 11.4 | |||||
| Thermal properties | |||||||||
| Heat deflection temperature | ISO 75 | 1.80MPa | C | 210 | |||||
| Other properties | |||||||||
| Flammability | UL94 | - | HB | ||||||
| Note: The data above is a typical value for reference, not a guaranteed value. The data will vary with tool design such as gate type, gate location, gate number, injection molding process, and part thickness. The data will vary with different colors as well. Prior to use the material, please consult with TOPO Co., Ltd | |||||||||
Are you a trading company or manufacturer?
We are a manufacturer.
About Sample?
5 KG Free Sample can be offered per your request.
About Material Color?
We can make the material to your appointed color according to Pantone/RAL#.

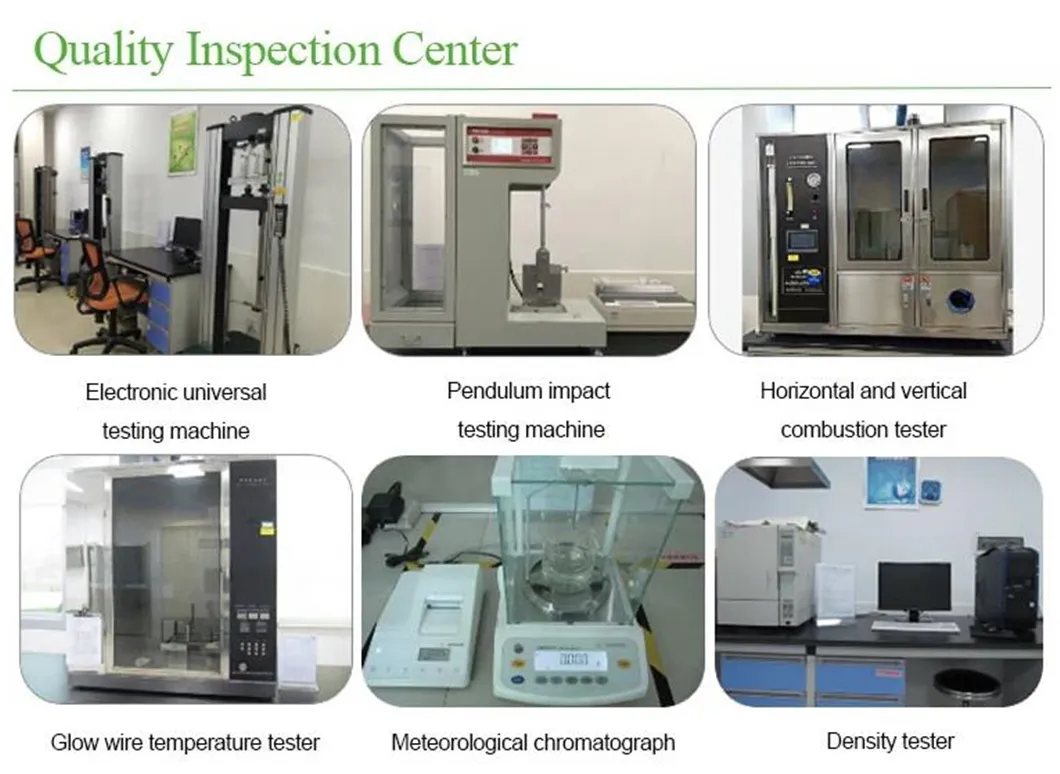

How does your factory control the quality?
Quality is the Priority, we always pay great importance to quality from beginning to end, we have professional QC for item quality from spare parts to finished goods.
How many days for mass production?
20 days after all artwork and 30% deposit are confirmed.
How can I get the samples? is the sample free?
7-10 days to send free samples by DHL, TNT, UPS
