Product Description

ABS

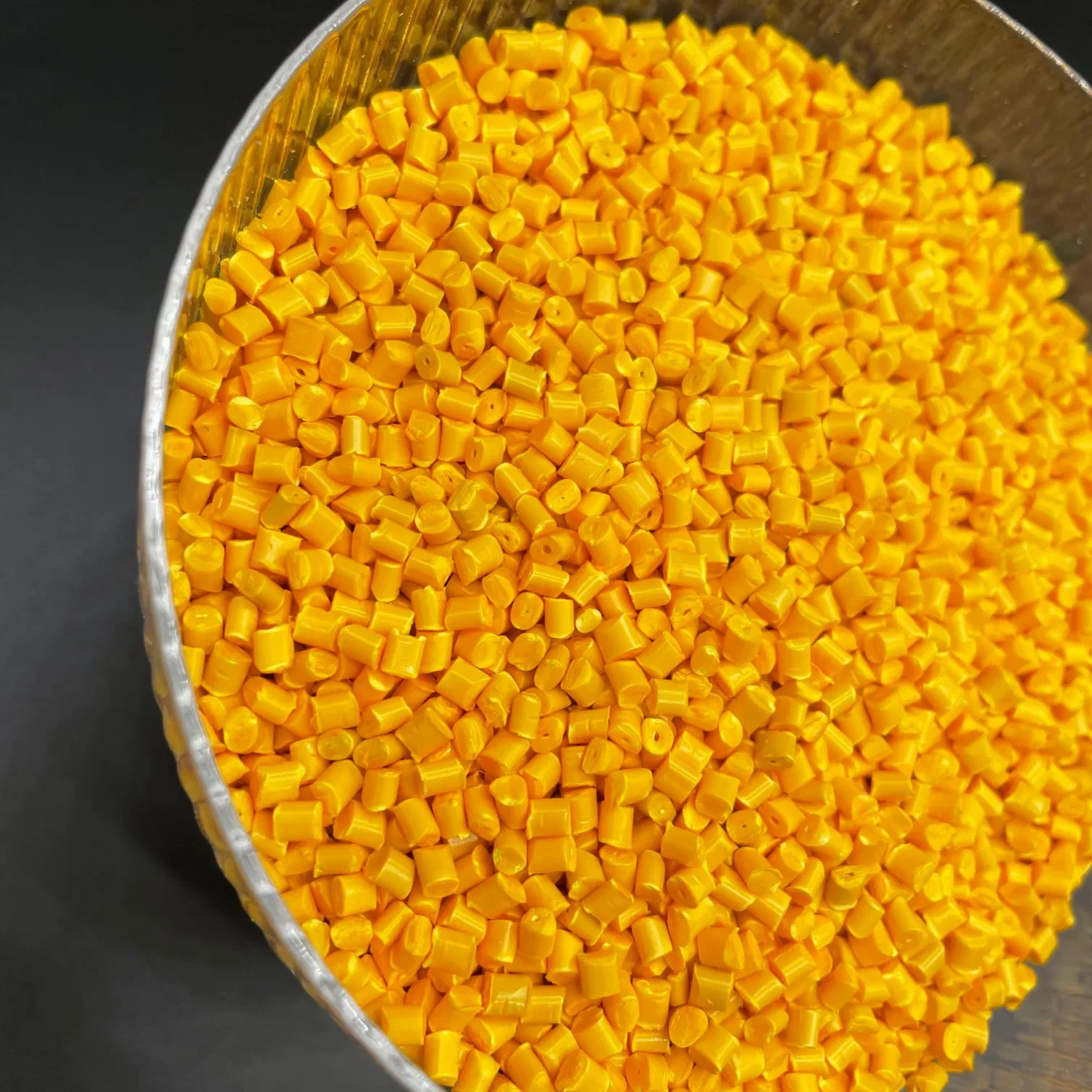

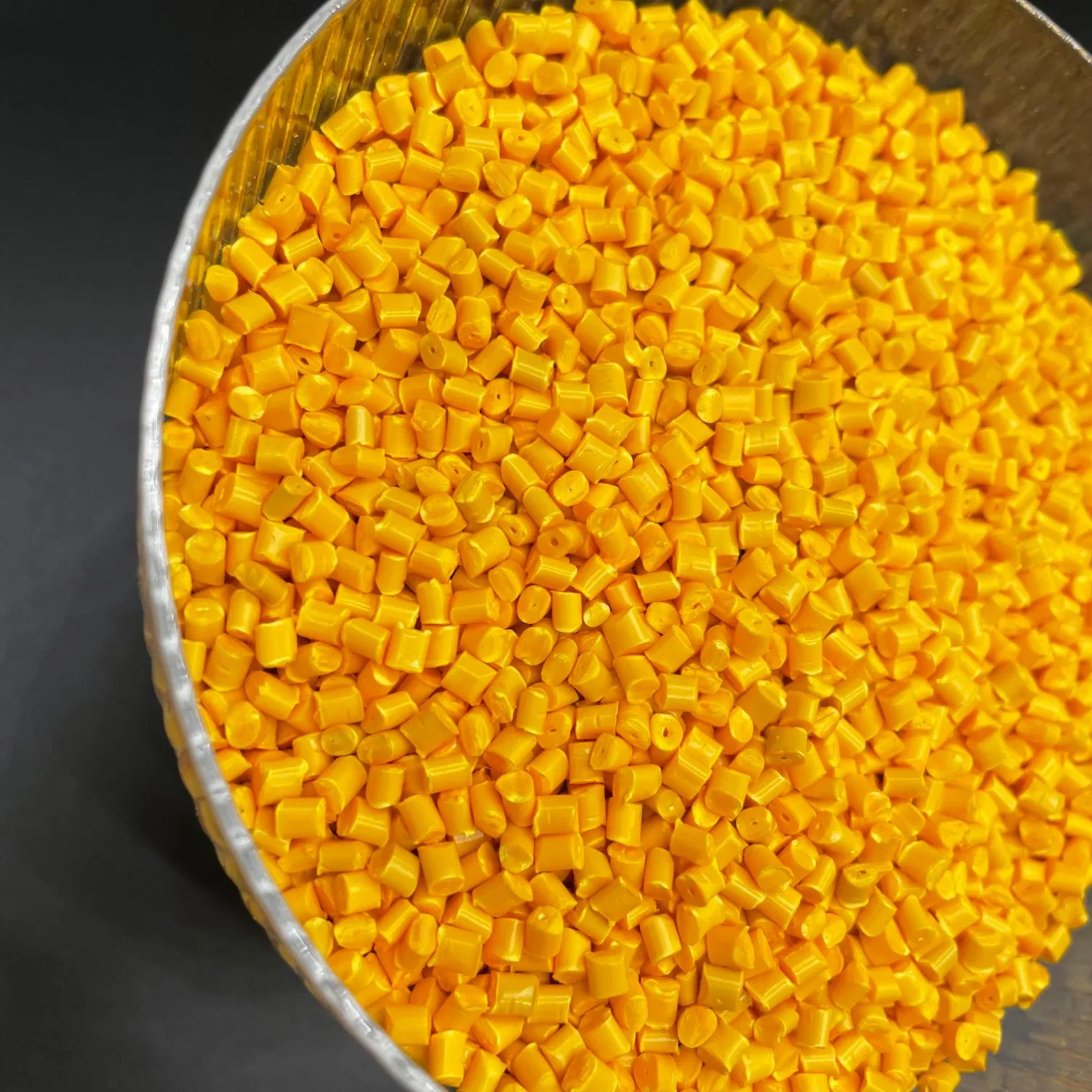

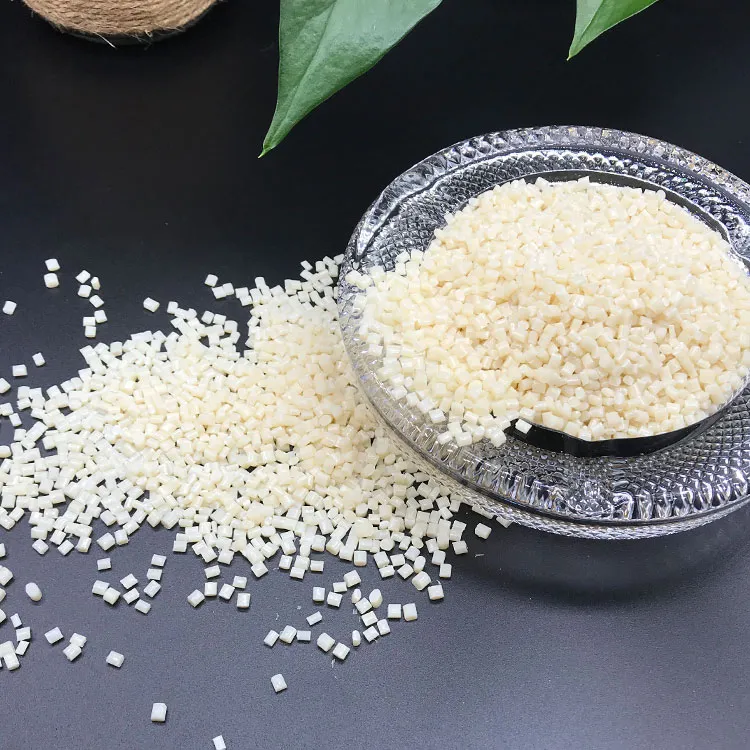

Plastic Flame Retardant UL94 V0 PC/ABS Raw Material / Plastic PC ABS Resin ABS UL94 V0 Plastic Granules ABS Resin

ABS resin is one of the five synthetic resin, its impact resistance, heat resistance, low temperature resistance, chemical resistance and excellent electrical properties.

But also has easy processing and products good size stability, surface gloss, easy painting, coloring.

Also can undertake surface spraying, electroplating, metal welding, hot pressing and adhesion and other secondary processing.

ABS A0104-02

ABS
Good mechanical properties

Injection molding
Automobile articles

Properties	Test Method	Test Condition	Units	Typical Values
Physical
Melt Flow Rate	ASTM D-1238	220ºC, 10Kg	g/10min	5
Specific Gravity	ASTM D-792	23ºC	g/cm3	1.03
Ash	-	800ºC,30min	%	-
Mechanical
Tensile Strength	ASTM D-638	50mm/min	MPa	46
Elongation at Break	ASTM D-638	50mm/min	%	14
Flexural Strength	ASTM D-790	2mm/min	MPa	62
Flexural Modulus	ASTM D-790	2mm/min	MPa	1800
Impact Strength, IZOD non-notched	ASTM D-256	23ºC	KJ/m2	-
Impact Strength, IZOD non-notched	ASTM D-256	-30ºC	KJ/m2	-
Impact Strength, IZOD notched	ASTM D-256	23ºC	KJ/m2	17
Impact Strength, IZOD notched	ASTM D-256	-30ºC	KJ/m2	-
Thermal
Heat Deflection Temp.	ASTM D-648	1.8Mpa	ºC	93
Heat Deflection Temp.	ASTM D-648	0.45Mpa	ºC	98
Others
Mold Shrinkage	ASTM D-955	23ºC	%	0.6-0.9
Flammability	UL94	1/16"		HB

Note: The data above is a typical value for reference, not a guaranteed value. The data will vary with tool design such as gate type , gate location, gate number, injection molding process, and part thickness. The data will vary with different colors as well. Prior to use the material, please consult with Suzhou TOPO New Material Co., Ltd.

ABS Widely used in machinery, automotive, electronic appliances, instrumentation, textiles and construction and other industrial fields, is a widely used thermoplastic engineering plastics.

Plastic Flame Retardant UL94 V0 PC/ABS Raw Material / Plastic PC ABS Resin ABS UL94 V0 Plastic Granules ABS Resin
Are you a trading company or manufacturer?

We are a manufacturer.

About Sample?

5 KG Free Sample can be offered per your request.

About Material Color?

We can make the material to your appointed color according to Pantone/RAL#.

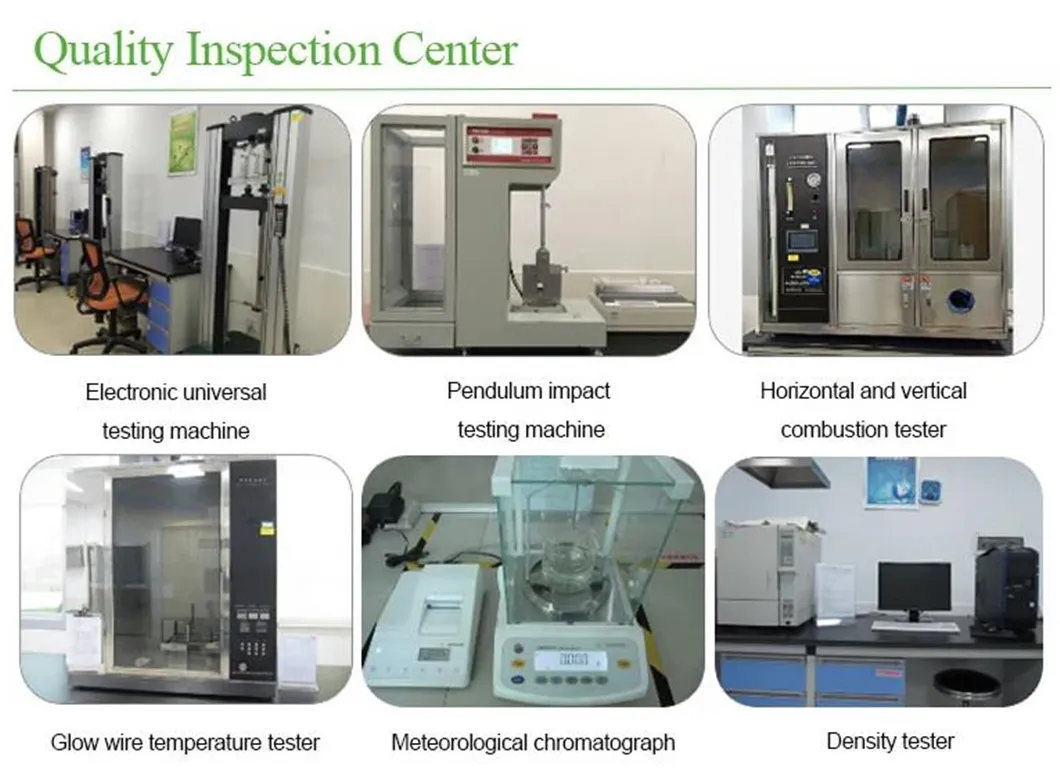

How does your factory control the quality?
Quality is the Priority, we always pay great importance to quality from beginning to end, we have professional QC for item quality from spare parts to finished goods.

How many days for mass production?

20 days after all artwork and 30% deposit are confirmed.

How can I get the samples? is the sample free?

7-10 days to send free samples by DHL, TNT, UPS
