25um/36um/50um/75um/100um/125um Transparent Pet Release Liner with Silicon Oil for Die Cutting Industry
Our company supplies a series of release materials including PET, PE and PP release films with main thicknesses of 25um, 36um, 50um, 75um and 100um, and with a production range of 1-200g/25mm of release force. Naturally, the thicknesses and release force can be customized according to customer's......
Send Inquiry
Product Description

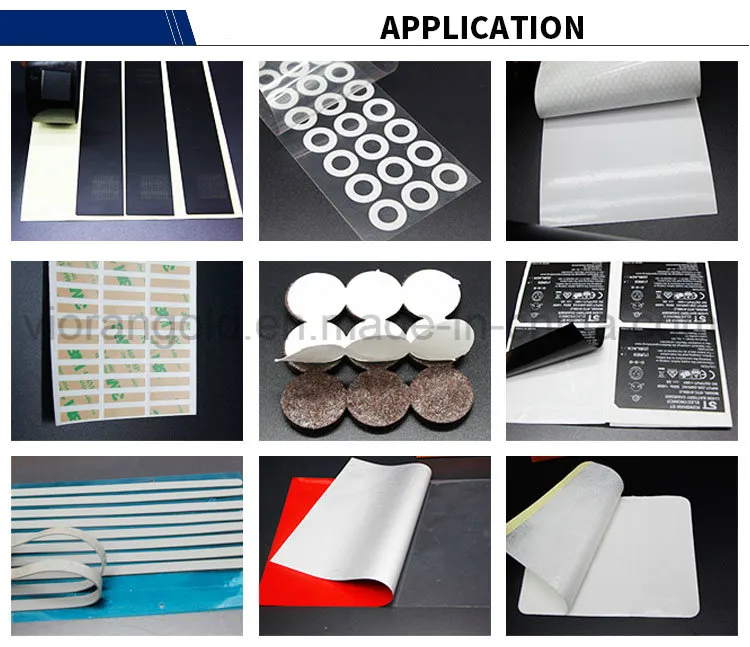

Our company supplies a series of release materials including PET, PE and PP release films with main thicknesses of 25um, 36um, 50um, 75um and 100um, and with a production range of 1-200g/25mm of release force. Naturally, the thicknesses and release force can be customized according to customer's demand. The release film are mainly used in tape backing, foam backing and die-cutting molding.
Product Number: RFT(025-125)C(003-100)

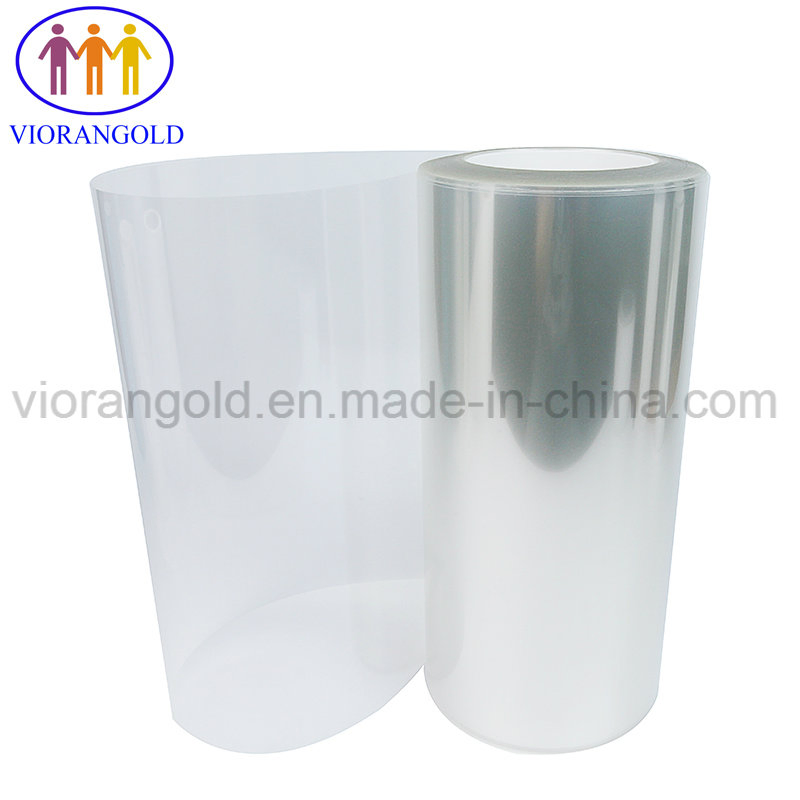

25-125um transparent Pet release film with 3-100g/inch release force
Our Company Information
Shenzhen Viorangold Technology Co. Ltd. was founded in 2008 and is located in Shenzhen city,Guangdong Province, one well-known modern city with developed economy, advanced technology and convenient transportation.
Since foundation, our company has been engaged in providing technical solutions of electric conduction, heat conduction, insulation and shielding in the processes of manufacturing or usage of mobile phone, computer, camera, vehicle equipment, various intelligent electronic products and home appliances for our customers, as well as providing protection solutions of anti-fouling, anti-scratch, anti-static, anti-corrosion for various electronic products and home appliances.

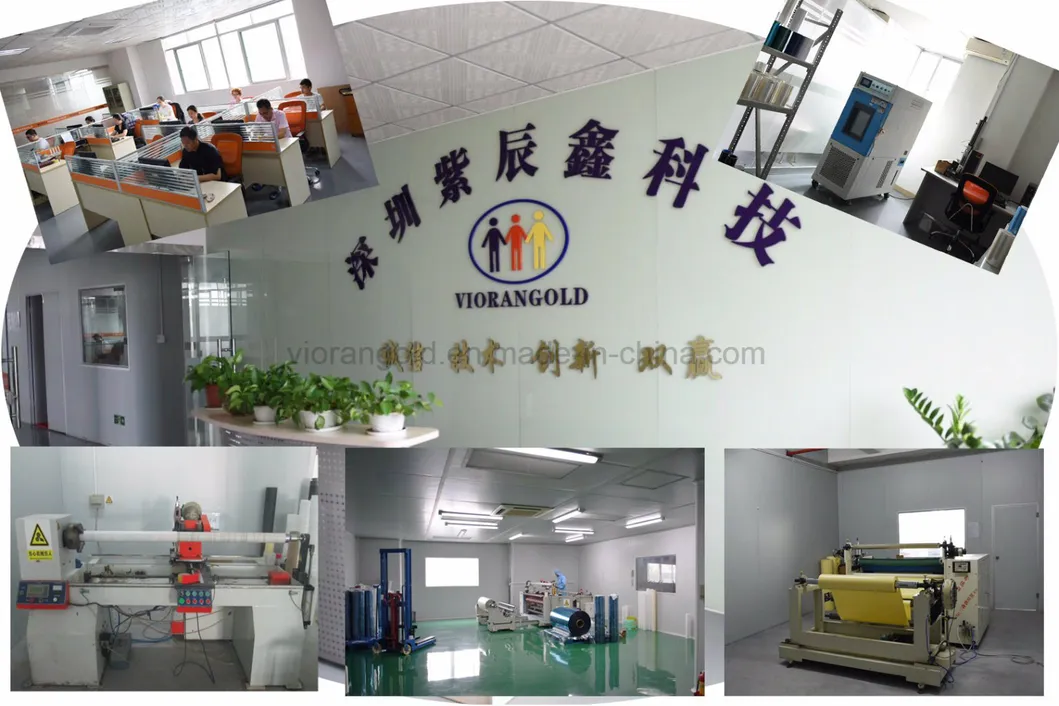

Since foundation, our company has developed rapidly, and attracted a group of outstanding professional managers and technical engineers; Our company has also introduced advanced manufacturing equipment and detecting instrument, possessing constant temperature and humidity cycle test equipment, iso-temperature warehouse and dust-free production workshop, and have already passed the ISO9001 and ISO14001 certifications; our company has been actively practising green and environmental friendly production concept and ensured that all raw materials and products can go through environmental test and requirements of RoHS.

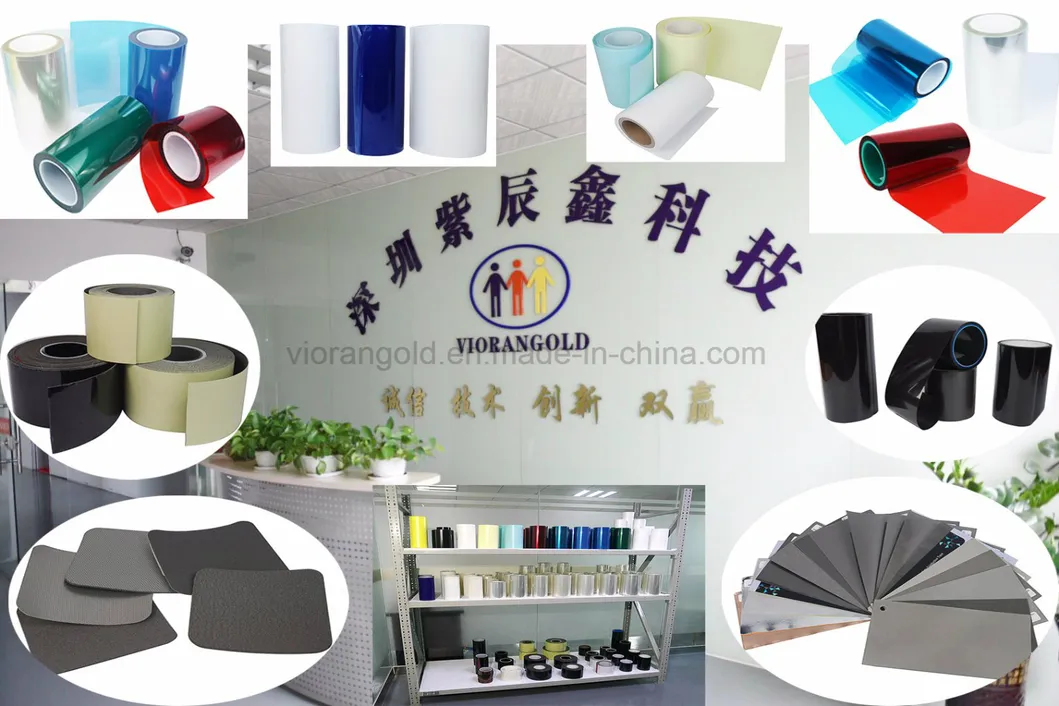

Our company offers three main products including protective film, release film, and conductive materials as follows:
(i)Protective film
Our company mainly supplies PET and PE protective films, We offer PET protective film of adhesive include silicone adhesive , with major thickness of 25um, 36um, 50um, 75um and 100um. Of cause, their thicknesses and peel strength can be customized according to customer's demand. The protective films are mainly used in the protection of the screen, cover, frame and other parts of various electronic products during their manufacturing or shipping process.
(ii)Release film
Our company supplies a series of release materials including PET, PE and PP release films with main thicknesses of 25um, 36um, 50um, 75um and 100um, and with a production range of 1-200g/25mm of release force. Naturally, the thicknesses and release force can be customized according to customer's demand. The release film are mainly used in tape backing, foam backing and die-cutting molding.
(iii)Conductive products
Our company supplies various conductive fabric and foam. The color, thickness, surface resistivity and adhesion of the conductive fabric can be customized according to customer's requirements, and the color, thickness, surface resistivity, shielding performance, adhesion and rebound rate of the conductive foam can also be customized according to customer's demand. Conductive fabric and foam are widely used in the interior fittings of die-cutting board and function applications of televisions, computers, PAD, vehicle equipment, mobile phones and other electronic products.
Our company pays great attention to the construction of enterprise culture. We uphold such service purpose that customer's satisfaction is just a start and endless service innovation is perpetual; and we implement such quality policy of profession, dedication and honesty; and we have fostered such company culture of virtue first, ability and virtue together, talents fully displayed, selfless dedication, strict management, enthusiasm to staff, responsibility to job, and self- honest and upright; and we pursue such a vision of win-win with customers together by wholeheartedly providing excellent products and service for every customer.
Overall, our company is dedicated in providing excellent goods, service and technical solutions for customers, and is determined to create value for customers; our company is going ahead as a pioneer of the industry, and will renew more advanced technology of the industry persistently. We are sincerely looking forward to cooperate with every customer from all over the world and win-win.
Our Certifications
Product Number: RFT(025-125)C(003-100)

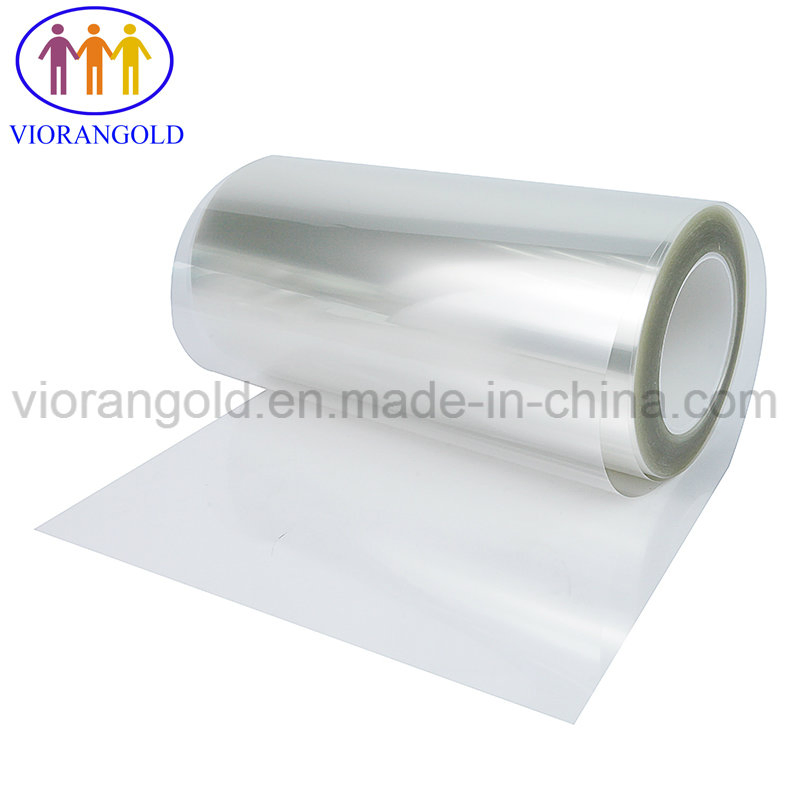

25-125um transparent Pet release film with 3-100g/inch release force
Properties | Typical Value | Remark |
Base Material | PET | Also supplies PE and PP |

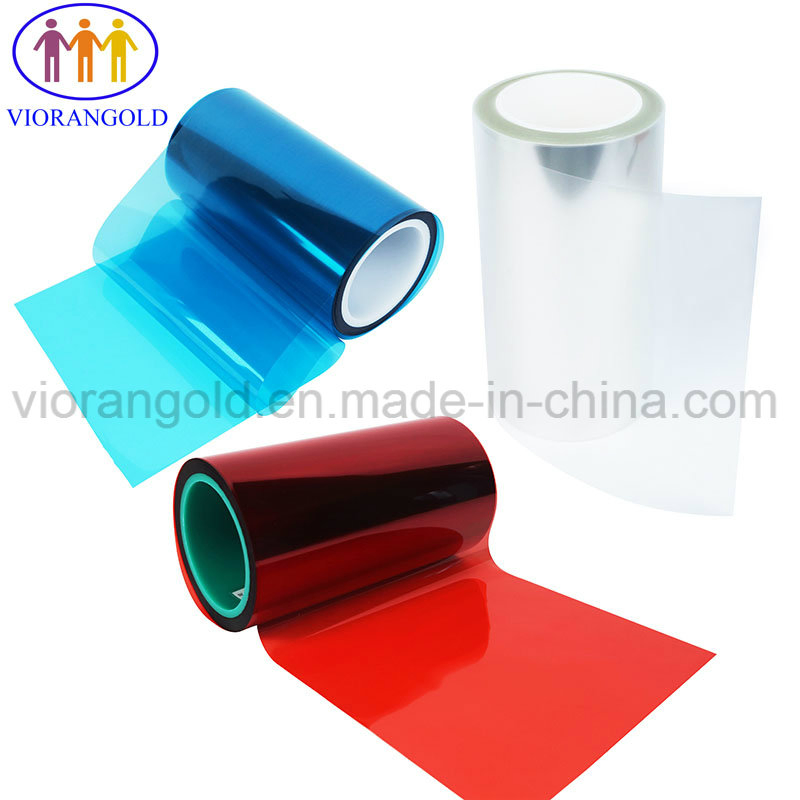

Color | transparent/blue/red/white | Others according customer's requirements |
Thickness(um) | 25um/36um/50um/75um/100um/125um | Others according customer's requirements |
Release Coating | single side with silicon oil | Our company also supply double side with silicon oil |
Release Force(g/inch,) | 1-100g/inch | 20Minute,With TESA 7475-PV2 Tape,300mm/min |
Effective Width(mm)/Roll | <1100mm | Others according customer's requirements |
Length (m)/Roll | <8000m | Others according customer's requirements |
Subsequent Adhesion Force | >80% | MI-21(int.method from FTM11(Tape TESA 7475-V02)) |
| MD Elongation at Break TD | 60%-150% 60%-150% | MI-24(int,method from ASTM D882) |
| MD Tensile strength at break TD | 19.0 Kg/mm2±20% 19.0 Kg/mm2±20% | MI-24 (int. method from ASTM D882) |
Our Company Information
Shenzhen Viorangold Technology Co. Ltd. was founded in 2008 and is located in Shenzhen city,Guangdong Province, one well-known modern city with developed economy, advanced technology and convenient transportation.
Since foundation, our company has been engaged in providing technical solutions of electric conduction, heat conduction, insulation and shielding in the processes of manufacturing or usage of mobile phone, computer, camera, vehicle equipment, various intelligent electronic products and home appliances for our customers, as well as providing protection solutions of anti-fouling, anti-scratch, anti-static, anti-corrosion for various electronic products and home appliances.
Since foundation, our company has developed rapidly, and attracted a group of outstanding professional managers and technical engineers; Our company has also introduced advanced manufacturing equipment and detecting instrument, possessing constant temperature and humidity cycle test equipment, iso-temperature warehouse and dust-free production workshop, and have already passed the ISO9001 and ISO14001 certifications; our company has been actively practising green and environmental friendly production concept and ensured that all raw materials and products can go through environmental test and requirements of RoHS.
Our company offers three main products including protective film, release film, and conductive materials as follows:
(i)Protective film
Our company mainly supplies PET and PE protective films, We offer PET protective film of adhesive include silicone adhesive , with major thickness of 25um, 36um, 50um, 75um and 100um. Of cause, their thicknesses and peel strength can be customized according to customer's demand. The protective films are mainly used in the protection of the screen, cover, frame and other parts of various electronic products during their manufacturing or shipping process.
(ii)Release film
Our company supplies a series of release materials including PET, PE and PP release films with main thicknesses of 25um, 36um, 50um, 75um and 100um, and with a production range of 1-200g/25mm of release force. Naturally, the thicknesses and release force can be customized according to customer's demand. The release film are mainly used in tape backing, foam backing and die-cutting molding.
(iii)Conductive products
Our company supplies various conductive fabric and foam. The color, thickness, surface resistivity and adhesion of the conductive fabric can be customized according to customer's requirements, and the color, thickness, surface resistivity, shielding performance, adhesion and rebound rate of the conductive foam can also be customized according to customer's demand. Conductive fabric and foam are widely used in the interior fittings of die-cutting board and function applications of televisions, computers, PAD, vehicle equipment, mobile phones and other electronic products.
Our company pays great attention to the construction of enterprise culture. We uphold such service purpose that customer's satisfaction is just a start and endless service innovation is perpetual; and we implement such quality policy of profession, dedication and honesty; and we have fostered such company culture of virtue first, ability and virtue together, talents fully displayed, selfless dedication, strict management, enthusiasm to staff, responsibility to job, and self- honest and upright; and we pursue such a vision of win-win with customers together by wholeheartedly providing excellent products and service for every customer.
Overall, our company is dedicated in providing excellent goods, service and technical solutions for customers, and is determined to create value for customers; our company is going ahead as a pioneer of the industry, and will renew more advanced technology of the industry persistently. We are sincerely looking forward to cooperate with every customer from all over the world and win-win.
Our Certifications
