Producing rubber profiles, tubes, seals, strips, hoses, and other continuous rubber products requires far more than simply pushing compound through a die. Manufacturers must control material temperature, pressure, feeding, extrusion speed, dimensional accuracy, curing conditions, and production stability at the same time. A properly configured Rubber Extruding Machine brings these processes together to create continuous products with repeatable dimensions and dependable quality.
For rubber processors, the biggest challenges are often hidden in production details: unstable extrusion pressure, inconsistent profile dimensions, premature material scorching, excessive waste, difficult die changes, and downtime caused by unsuitable equipment. Understanding how a rubber extruder works and how to select the right configuration can help manufacturers avoid these problems and build a more efficient production line.
1. Understanding a Rubber Extruding Machine

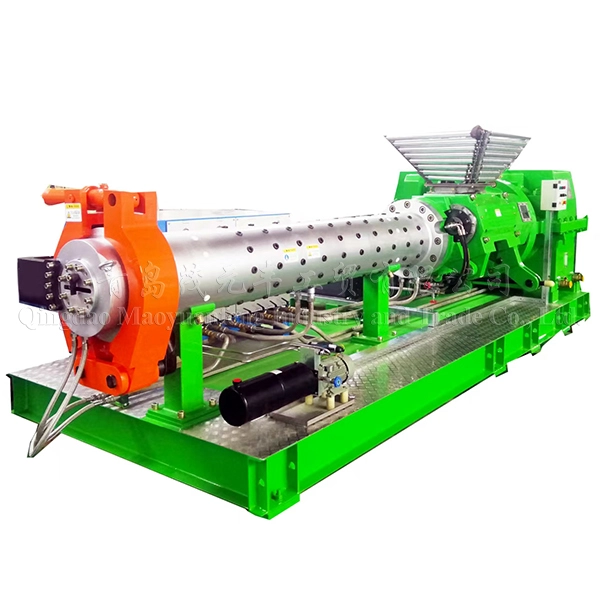

A Rubber Extruding Machine is industrial equipment used to continuously process rubber compounds and form them into products with a defined cross-sectional shape. The machine normally feeds rubber into a heated or temperature-controlled barrel, applies mechanical force through a screw or other extrusion mechanism, and pushes the material through a forming die.
The resulting product may be a simple round tube or strip, or a highly engineered profile with several different sections in one cross-sectional design. Depending on the material and application, the extrusion line may also include cooling, sizing, cutting, pulling, curing, and inspection equipment.
Rubber extrusion differs from many thermoplastic extrusion processes because rubber compounds are often processed before final vulcanization. The material must therefore be shaped without causing premature curing while still achieving enough dimensional stability for the downstream process.
This makes temperature management particularly important. Excessive heat can affect compound behavior, while insufficient temperature or poor mixing can increase extrusion pressure and produce rough surfaces or dimensional variation.
2. How the Rubber Extrusion Process Works
Although machine configurations vary, the extrusion process generally follows a sequence of material feeding, conveying, pressure building, shaping, and downstream treatment.
Material Feeding
Prepared rubber compound enters the feeding area. Consistent feeding is essential because fluctuations in material supply can create variations in extrusion pressure and output. Compound preparation should therefore be controlled before it reaches the machine.
Plasticizing and Conveying
The screw or extrusion mechanism conveys the rubber through the barrel while applying mechanical work. Depending on the machine design, controlled heating and cooling help maintain the material within the desired processing range.
Pressure Building
As rubber approaches the die, resistance increases. The extrusion system must generate enough pressure to push the compound through the die at a stable rate. Pressure fluctuations can lead directly to changes in profile dimensions and surface quality.
Die Forming
The die determines the basic cross-sectional shape of the extruded product. Die design must account for the characteristics of the rubber compound and the dimensional changes that can occur after the material exits the die.
Cooling, Sizing, and Curing
After leaving the die, the profile may pass through a cooling or sizing system before curing. Depending on the production line, curing may involve hot air, microwave systems, salt baths, steam, or other technologies. The appropriate method depends on the rubber compound and product requirements.
A successful extrusion line therefore requires synchronization between extrusion speed, pulling speed, curing conditions, and cooling. If one stage operates too quickly or slowly, the finished profile may stretch, shrink, deform, or develop inconsistent dimensions.
3. Key Components of a Rubber Extruding Machine
Understanding the main machine components helps purchasing teams and production engineers evaluate equipment more effectively.
| Component | Main Function | Why It Matters |
|---|---|---|
| Feeding system | Introduces rubber compound into the extrusion unit | Supports stable material supply and output consistency |
| Screw and barrel | Conveys and processes the rubber compound | Influences pressure, temperature, and throughput |
| Drive system | Provides rotational power to the screw | Determines operating stability and available torque |
| Temperature control | Manages processing temperature | Helps prevent overheating and unstable material behavior |
| Extrusion die | Forms the required profile shape | Directly affects product geometry and surface quality |
| Downstream equipment | Cools, pulls, cures, cuts, or collects the product | Maintains dimensional stability after extrusion |
| Control system | Monitors and adjusts operating parameters | Improves repeatability and simplifies operation |
Screw and Barrel Design
Screw geometry influences material conveying, mixing, pressure generation, and heat development. The appropriate configuration depends on the compound, desired output, and product characteristics.
Temperature Control System
Rubber compounds can be sensitive to temperature changes. A properly designed temperature-control system helps keep processing conditions stable and reduces the risk of premature vulcanization or excessive viscosity.
Control Panel
Modern equipment may use digital controls to monitor temperature, screw speed, motor load, pressure, and other parameters. Clear displays and alarm functions can make production management and troubleshooting more efficient.
4. Major Production Benefits of a Rubber Extruding Machine
Consistent Profile Dimensions
Continuous extrusion provides a repeatable method for manufacturing long rubber profiles. When material preparation, machine settings, die geometry, and downstream equipment are properly controlled, manufacturers can achieve stable cross-sectional dimensions across long production runs.
Higher Production Efficiency
Compared with intermittent forming processes, continuous extrusion can produce long lengths of rubber products with fewer interruptions. Automated feeding, curing, pulling, and cutting can further reduce manual handling.
Reduced Material Waste
Stable extrusion conditions can reduce scrap caused by dimensional defects, surface problems, and inconsistent output. Better process control also makes it easier to identify deviations early instead of discovering large quantities of defective products at final inspection.
Flexible Product Design
By changing the extrusion die and adjusting process parameters, manufacturers can produce different profiles from the same basic production platform. This flexibility is useful for businesses serving multiple industries with different sealing and insulation requirements.
Better Production Monitoring
Equipment with modern control systems can provide useful operating information. Monitoring temperature, speed, motor load, pressure, and production conditions helps operators identify abnormal trends before they become major quality problems.
5. Common Rubber Extrusion Applications
Rubber extrusion is used in industries where continuous profiles, seals, tubes, strips, and protective components are required.
Automotive Components
Rubber extrusion is widely used to produce door seals, window seals, weatherstripping, hoses, vibration-control profiles, and other automotive components. These products often require consistent dimensions and reliable resistance to environmental conditions.
Construction and Building Seals
Buildings use rubber profiles for doors, windows, curtain walls, expansion joints, and glazing systems. Consistent profile geometry is particularly important when the product must fit precisely into a structural channel.
Industrial Sealing Products
Machinery manufacturers use extruded rubber seals and gaskets to prevent leakage, protect moving parts, and isolate equipment from dust or moisture.
Electrical and Cable Protection
Rubber profiles can provide insulation, cushioning, and protection around electrical components and cable systems. Material selection should match the required electrical, thermal, and environmental properties.
Medical and Specialty Products
Certain medical and specialized rubber products require controlled processing and carefully specified materials. In these applications, production cleanliness, material traceability, dimensional control, and applicable regulatory requirements become particularly important.
| Industry | Typical Extruded Products | Important Requirements |
|---|---|---|
| Automotive | Seals, weatherstripping, hoses | Dimensional consistency, durability, environmental resistance |
| Construction | Window seals, door profiles, expansion seals | Accurate geometry and weather resistance |
| Industrial machinery | Gaskets, sealing strips, protective profiles | Material compatibility and reliable sealing |
| Electrical | Protective profiles and insulation components | Electrical and thermal properties |
| Specialty products | Custom tubes and engineered profiles | Controlled processing and application-specific specifications |
6. How to Select the Right Rubber Extruding Machine
Selecting equipment based only on motor power or advertised production capacity can lead to disappointing results. The machine should be matched to the rubber compound, profile geometry, production volume, and downstream process.
Identify the Rubber Compound
Natural rubber, EPDM, silicone, nitrile rubber, neoprene, and other compounds have different processing characteristics. The compound's viscosity, temperature sensitivity, curing behavior, and filler content can influence the required extrusion configuration.
Define the Product Profile
Provide the supplier with drawings or detailed dimensions of the target product. Profile complexity affects die design, material flow, required pressure, and downstream sizing.
Calculate Required Output
Determine the required production speed in relation to the product's cross-sectional area and density. Production targets should also account for startup waste, quality inspection, curing capacity, and expected downtime.
Consider Screw Diameter and Drive Power
Screw diameter and motor power influence material throughput and processing capability. A larger machine is not automatically better; an oversized system may increase investment and operating costs without improving production efficiency for smaller profiles.
Check Temperature and Cooling Requirements
Verify that the machine provides the temperature-control capabilities required by the selected compound. Stable cooling can be just as important as heating because extrusion generates mechanical heat as the material is processed.
Evaluate the Complete Production Line
The extruder should be compatible with downstream equipment such as curing systems, cooling tanks, pulling units, cutting machines, and take-up systems. The slowest stage can become the bottleneck of the entire line.
- Rubber compound and grade
- Product drawing or cross-sectional dimensions
- Required production speed
- Expected daily or monthly output
- Required curing method
- Power supply information
- Automation and control requirements
- Available factory space and environmental conditions
7. How to Improve Rubber Extrusion Quality
Maintain Consistent Material Preparation
Variations in compound temperature, moisture, mixing quality, or batch composition can affect extrusion behavior. Consistent upstream material preparation is therefore essential for stable machine performance.
Control Processing Temperature
Operators should monitor barrel and die temperatures rather than relying only on preset values. Actual material temperature can differ from the displayed setpoint. If the compound begins to cure prematurely, production may become unstable and the die may require cleaning.
Keep Extrusion Speed Stable
Sudden changes in screw speed can change pressure and output. Production recipes should be documented so that operators can reproduce successful settings for recurring products.
Maintain Correct Pulling Speed
Extrusion and downstream pulling must work together. If the pulling speed is too high, the profile may become stretched or undersized. If it is too low, excess material can accumulate and distort the product.
Inspect Dies Regularly
Wear, contamination, or damage to the die can alter material flow. Regular inspection and cleaning help maintain consistent profile geometry and surface appearance.
Use Process Records
Recording successful operating parameters creates a valuable reference for future production. Useful records may include compound batch, temperature settings, screw speed, line speed, curing conditions, product dimensions, and observed defects.
8. Common Production Problems and Solutions
Extrusion defects can originate from the material, machine, die, downstream equipment, or a combination of factors. Troubleshooting should therefore consider the entire production process.
| Problem | Possible Causes | Recommended Checks |
|---|---|---|
| Uneven profile dimensions | Unstable feeding, pressure variation, die problem, inconsistent pulling | Check material supply, pressure, die condition, and line speed |
| Rough surface | Unsuitable temperature, material inconsistency, die contamination | Review temperature, compound condition, and die cleanliness |
| Premature curing | Excessive heat or excessive residence time | Check material temperature and processing conditions |
| Low output | Feeding limitations, incorrect screw speed, high material resistance | Review feed consistency, screw speed, pressure, and compound condition |
| Profile deformation | Improper cooling, pulling speed, insufficient dimensional support | Inspect downstream cooling, sizing, and pulling conditions |
| Frequent machine trips | Excessive load, electrical issue, overheating, mechanical obstruction | Check alarms, motor load, cooling, electrical supply, and mechanical components |
Operators should avoid changing multiple parameters simultaneously. Making one controlled adjustment at a time makes it easier to determine which parameter is responsible for the observed change.
9. Maintenance and Operating Practices
Regular maintenance protects both machine reliability and product consistency. Even a high-quality Rubber Extruding Machine can experience performance problems when cooling systems, bearings, electrical components, or extrusion tooling are neglected.
Daily Checks
- Inspect unusual noise, vibration, or temperature changes.
- Check material feeding and output stability.
- Review machine alarms and operating records.
- Inspect visible leaks and abnormal contamination.
- Confirm that cooling and ventilation systems are functioning.
Periodic Checks
- Inspect screw and barrel wear according to the manufacturer's maintenance schedule.
- Check drive components and lubrication requirements.
- Inspect electrical terminals and control components.
- Clean and inspect extrusion dies.
- Verify temperature sensors and control functions.
- Inspect downstream pulling, cooling, and curing equipment.
Maintenance intervals should be based on the manufacturer's instructions and actual operating conditions. High-temperature production, abrasive compounds, continuous operation, and frequent product changes can increase wear and maintenance requirements.
10. Frequently Asked Questions
1. What is a Rubber Extruding Machine used for?
It is used to continuously process rubber compounds and form them into products with specific cross-sectional shapes. Common products include rubber tubes, seals, strips, hoses, gaskets, weatherstripping, and custom profiles.
2. What rubber materials can be processed by an extruder?
Depending on the machine configuration, rubber extrusion systems may process materials such as natural rubber, EPDM, nitrile rubber, neoprene, silicone, and other specialized compounds. Compatibility should always be confirmed based on the actual compound formulation and machine design.
3. How does screw diameter affect extrusion performance?
Screw diameter influences potential throughput, material handling capacity, and machine size. The appropriate diameter depends on the required output, rubber compound, profile dimensions, and production conditions rather than output alone.
4. Why is temperature control important in rubber extrusion?
Temperature affects rubber viscosity, flow behavior, pressure, and curing characteristics. Excessive heat can increase the risk of premature curing, while unsuitable temperatures can make processing unstable.
5. Can one Rubber Extruding Machine produce different rubber profiles?
In many cases, yes. Different profiles can be produced by using suitable extrusion dies and adjusting process parameters. However, the machine must be compatible with the material and dimensional requirements of each product.
6. How can extrusion waste be reduced?
Waste can often be reduced through consistent compound preparation, stable temperature control, accurate die design, controlled startup procedures, proper line synchronization, and continuous monitoring of product dimensions.
7. What information is needed to select an extrusion machine?
Important information includes the rubber compound, product profile, dimensions, target output, production speed, curing method, operating environment, power supply, automation requirements, and downstream equipment.
8. How often should a rubber extruder be maintained?
Maintenance frequency depends on the machine model, operating hours, material characteristics, production environment, and manufacturer's recommendations. Daily inspections combined with scheduled preventive maintenance are generally appropriate for continuous industrial operation.
9. What causes rubber profiles to change dimensions during production?
Possible causes include changes in material temperature, compound consistency, extrusion pressure, screw speed, die condition, cooling, curing, or pulling speed. A systematic inspection of the complete line is usually more effective than changing one setting without checking the surrounding process.
10. Why should the downstream equipment be considered when buying an extruder?
The extruder and downstream equipment operate as one production system. If cooling, curing, pulling, or cutting capacity cannot match the extruder's output, the line may experience bottlenecks, deformation, or unnecessary production losses.
11. Final Considerations for Choosing Rubber Extrusion Equipment
A Rubber Extruding Machine is a core component of continuous rubber profile manufacturing, but its performance depends on the entire production system. Material characteristics, screw and barrel configuration, temperature management, die design, extrusion speed, curing conditions, cooling, and pulling must all work together.
For manufacturers, the best equipment is not necessarily the machine with the highest advertised output. The more important question is whether the equipment can provide stable production under the actual compound, profile, and operating conditions required by the factory.
A careful selection process begins with a clear understanding of the product and production target. By providing accurate material information, profile drawings, output requirements, and downstream process details, buyers can work more effectively with equipment manufacturers to develop a suitable extrusion solution.
With appropriate equipment, process control, and maintenance, rubber extrusion can become a stable and efficient manufacturing method capable of producing consistent profiles for demanding industrial applications.
