How to Choose the Right Width of PVC Electrical Insulation Tape

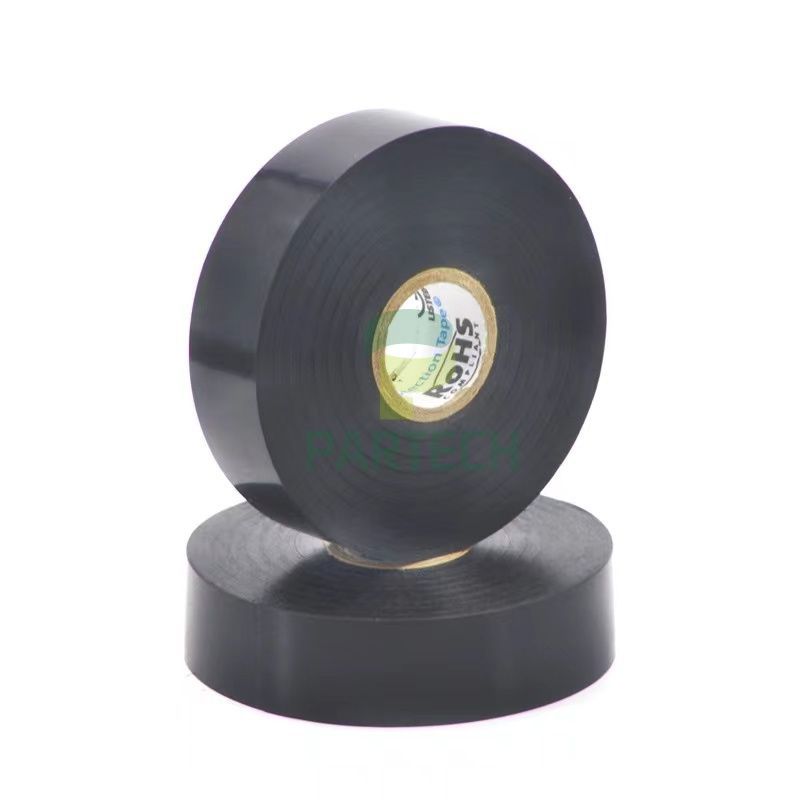

PVC (Polyvinyl Chloride) electrical insulation tape is widely used in various electrical applications, such as insulating wires, securing cables, and protecting electrical circuits. The right choice of tape width is crucial for ensuring effective insulation and protection. The following essay explores the factors to consider when selecting the appropriate width for PVC electrical insulation tape.

1. Understanding the Purpose of PVC Electrical Insulation Tape

PVC electrical insulation tape is designed to prevent electrical leakage, protect against short circuits, and provide mechanical protection for wiring. It is commonly used in both residential and industrial environments for insulating electrical cables and joints. The width of the tape plays a significant role in how well it can serve these functions, as it needs to cover the appropriate area while remaining secure and durable.

2. Factors Influencing Tape Width Selection

Several factors influence the decision regarding the appropriate width of PVC electrical insulation tape. These factors include the application type, wire size, and safety considerations.

a. Wire Size and Insulation Requirements

The most critical factor when choosing the tape width is the size of the wire or cable you need to insulate. Larger cables typically require wider tapes to ensure full coverage, while smaller cables may only need narrower tape. If the tape is too narrow for the cable, it may not offer sufficient insulation or protection, leaving the wire exposed and susceptible to short circuits or environmental damage.

For standard wires used in household electrical systems, a common tape width is ¾ inch (19mm). However, for thicker cables, such as those used in industrial settings, tape widths of 1 inch (25mm) or wider may be necessary. On the other hand, narrower tape (½ inch or 12mm) can be used for smaller wires or for precise insulation where only a small section needs to be covered.

b. Voltage Rating and Safety

The voltage rating of the wire or circuit is another important factor in choosing the tape width. Electrical insulation tape is classified according to its dielectric strength, which indicates the maximum voltage it can safely insulate against. Higher voltage applications require thicker and wider tape to ensure that it provides sufficient protection. In these cases, opting for a wider tape helps to cover a larger surface area, enhancing the tape's insulating properties.

For low-voltage applications (up to 600V), standard PVC tape is often adequate. However, for high-voltage applications (over 600V), thicker and wider tapes may be required, sometimes with multiple layers of tape being applied for additional safety.

c. Environmental Conditions

Consideration of environmental factors, such as exposure to extreme temperatures, moisture, or chemicals, also impacts the choice of tape width. If the tape will be exposed to harsh conditions, a wider tape may be necessary to provide an extra layer of protection and to prevent the tape from lifting or becoming damaged.

For instance, tapes designed for outdoor use often have stronger adhesives and thicker backing to prevent degradation due to UV exposure, temperature extremes, or chemical corrosion. These tapes are typically wider to ensure long-term effectiveness.

d. Compliance with Industry Standards

In certain applications, the selection of tape width may be governed by specific industry standards or local regulations. For example, electrical installations in commercial buildings or in compliance with safety codes may require certain tape widths to meet electrical insulation specifications. Therefore, it is essential to refer to the relevant safety guidelines and standards when selecting tape for your application.

3. Advantages of Choosing the Right Width

Selecting the right width of PVC electrical insulation tape offers several advantages, including:

Effective Insulation: A properly sized tape will cover the entire area of exposed wire or cable, providing secure insulation and preventing short circuits or electric shocks.

Improved Durability: The right tape width ensures that the insulation remains intact over time, even in challenging environments.

Safety Compliance: Adhering to industry standards and choosing the appropriate tape width ensures that the insulation meets required safety regulations.

Cost-Efficiency: Choosing a tape that is correctly sized for the application can prevent unnecessary waste, reducing the amount of tape required for each job and lowering overall costs.

4. Conclusion

Choosing the right width of PVC electrical insulation tape is essential to ensure the safety, durability, and efficiency of electrical installations. By considering factors such as wire size, voltage rating, environmental conditions, and industry standards, you can make an informed decision that will protect your electrical systems and maintain safety standards. Always choose a tape width that adequately covers the area to be insulated, ensuring a secure, long-lasting electrical connection.
