How Oil Drilling Hoses work

Oil drilling hoses, also known as rotary hoses, kelly hoses, or mud hoses, are critical components in oil and gas drilling operations. They are designed to transport drilling fluids (commonly called "mud") between the surface equipment and the drill string (the pipe that goes into the wellbore). Here's a breakdown of how they work and what they do:

Basic Function

Oil drilling hoses:

Carry high-pressure drilling fluid (mud) from the mud pump to the drill string.

Withstand extreme pressure, vibration, and movement from the drilling rig.

Are flexible, allowing movement of the drill string and swivel (rotating mechanism).

Where They Are Used

The primary types of oil drilling hoses are:

Rotary Drilling Hoses: Connect the mud pump to the swivel or top drive, allowing drilling fluid to flow into the drill pipe.

Choke & Kill Hoses: Used to control well pressure by injecting fluids during blowout prevention operations.

How It Works (Step-by-Step)

Mud Circulation Begins: Drilling mud is pumped from the mud pit using a high-pressure mud pump.

Mud Travels Through Hose: The pressurized mud enters the rotary hose, which connects to the swivel (or top drive in modern rigs).

Enters the Drill String: The mud then goes down the drill pipe, cooling and lubricating the drill bit.

Lifts Cuttings: The mud carries rock cuttings back up the annulus (space between the drill pipe and the borehole wall) to the surface.

Returns to Surface: The cuttings-laden mud returns to the shale shaker for cleaning, then is reused.

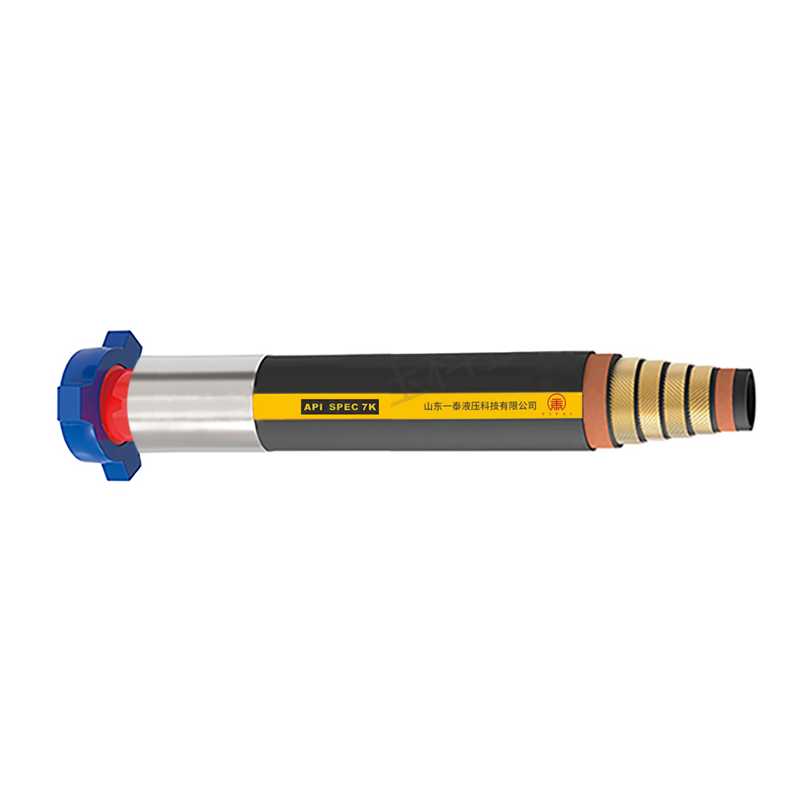

Design Features

Multiple Layers: Made of synthetic rubber, textile or steel reinforcements, and an abrasion-resistant outer cover.

Pressure-Rated: Typically rated for up to 7,500 psi or more.

Vibration Resistant: Absorbs rig vibrations and accommodates vertical movement.

High Temperature Resistant: Handles heat generated during deep drilling.

Key Benefits

Maintains wellbore stability.

Helps control formation pressure.

Provides continuous flow of fluids for efficient drilling.

Withstands harsh conditions including heat, chemicals, and mechanical stress.

Common Names

Kelly Hose

Mud Hose

Rotary Vibrator Hose

Drilling Jumper Hose
