How Can Skeleton IML Improve Packaging Design and Production Efficiency?

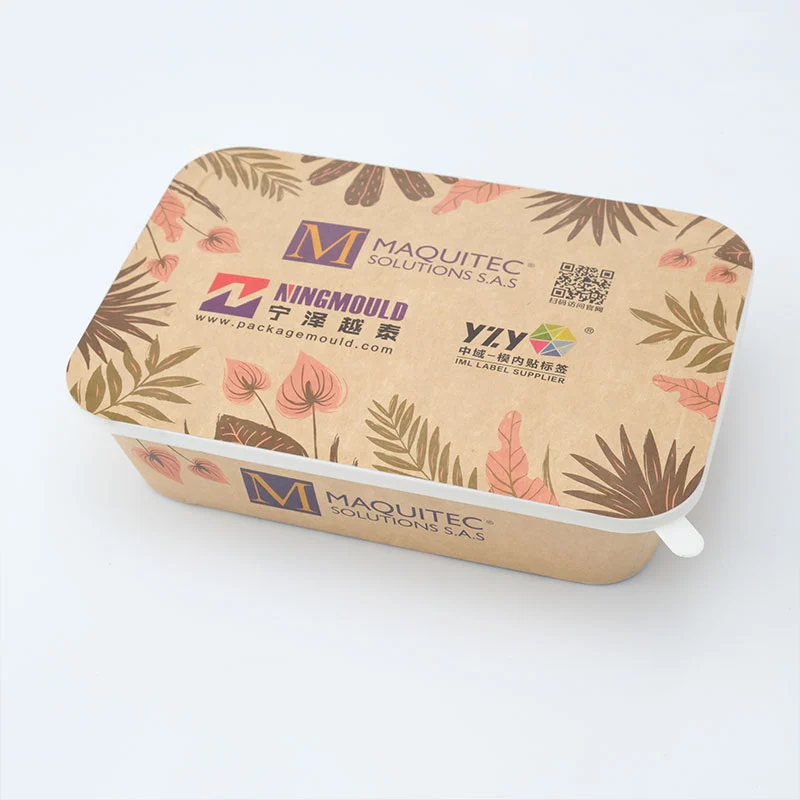

What Is Skeleton IML?

Packaging is more than a protective shell. It communicates product information, supports brand recognition, and influences how consumers perceive quality. As brands look for more distinctive plastic packaging, specialized label designs are becoming an important part of product development.

Skeleton IML refers to a skeleton-like or framework-oriented concept within in-mold labeling. Depending on the supplier's terminology and the design specification, it may describe a label with selectively arranged graphic areas, an open or skeletal layout, or a label configuration adapted to particular product geometry. Buyers should provide a drawing or reference image to establish exactly what the term means for their project.

Traditional in-mold labeling, commonly called IML, integrates a printed label into a molded plastic product during manufacturing. Rather than applying a separate adhesive label after the container has been produced, the label is positioned in the mold before the plastic part is formed. With a compatible material system and a properly controlled process, the label becomes an integrated part of the finished surface.

For Skeleton IML projects, the important distinction is the specific design and coverage requirement, not simply the use of the IML process. A skeletal graphic layout does not automatically mean that the physical label itself contains holes or that the molded product has an open framework. These details must be defined in the technical specification.

How Does the IML Process Work?

Understanding the standard IML workflow helps buyers identify the factors that influence label positioning, appearance, and production consistency.

For Skeleton IML, the precise workflow may require additional engineering discussion if the design involves narrow label sections, complex contours, or unconventional coverage. A mold trial can help determine whether the proposed geometry can be manufactured reliably.

Key Design Principles for Skeleton IML

Define the Actual Label Geometry

The first step is to distinguish the visual concept from the physical label structure. If the design uses a framework-like graphic, the label may still be a continuous film. If the label itself contains cutouts or separate sections, the manufacturing requirements may be considerably different.

Provide engineering drawings, dimensions, product photographs, or a three-dimensional model wherever possible. Clearly identify the intended label boundaries and the areas that must remain uncovered.

Consider Narrow Sections and Small Features

Thin label bridges, tight corners, small islands, and intricate cutouts may increase handling and positioning difficulty. The minimum practical feature size depends on the film, cutting process, placement system, mold geometry, and production conditions.

Rather than assuming a universal minimum width, ask the manufacturer to review the proposed design and identify areas that may require modification.

Maintain Artwork Registration

Fine lines, borders, logos, and high-contrast graphics can make even small positional deviations noticeable. Designers should define the relationship between the printed artwork and the physical label edge, then agree on acceptable registration tolerances before mass production.

Plan for Curved Surfaces

Labels used on curved or irregular products must match the intended surface and molding conditions. The design should account for the container profile, draft angles, edge transitions, and any areas where label placement may be difficult.

Balance Visual Detail with Production Stability

A visually complex design is useful only if it can be reproduced consistently. Simplifying fragile details, adjusting the label boundary, or modifying artwork contrast may improve manufacturability without sacrificing the overall design concept.

Main Benefits of Skeleton IML for Packaging Manufacturers

More Distinctive Product Presentation

Framework-inspired graphics and carefully defined label coverage can create a distinctive visual identity. By controlling the balance between printed and unprinted areas, brands can emphasize product information, logos, patterns, or selected design elements.

Integrated Surface Decoration

Conventional IML integrates the printed label into the molded product during forming. This can reduce reliance on a separate post-molding labeling operation and create a finished appearance that differs from an externally applied sticker.

Opportunities for Automated Production

Suitable IML applications can be integrated into automated molding workflows. When label handling, placement, material compatibility, and cycle settings are properly controlled, manufacturers may benefit from streamlined production. Actual productivity depends on equipment, product design, cycle time, and the stability of the manufacturing process.

Consistent Brand Graphics

Printed IML can reproduce detailed product imagery, logos, instructions, and other brand elements. A well-controlled printing process helps maintain the intended appearance across production batches.

Potential for Reduced Secondary Operations

Because labeling takes place during molding, a suitable IML application may eliminate a separate labeling step. This can simplify handling and production planning, although savings depend on tooling, label preparation, equipment, reject rates, and order volume.

Support for Customized Packaging

Different label layouts, colors, finishes, and graphic treatments can help brands differentiate products. The best design is one that combines the intended visual effect with reliable manufacturing and reasonable production costs.

Potential Applications and Use Cases for Skeleton IML

IML is used across multiple plastic packaging categories. Whether a particular Skeleton IML design is appropriate depends on the product geometry, the required label coverage, and the intended molding method.

Food Containers and Household Packaging

Plastic tubs, cups, bowls, trays, and storage containers can use IML to display product branding, illustrations, instructions, and decorative patterns. For food-contact applications, buyers should verify the suitability of the complete material system and the relevant compliance documentation for the intended market.

Personal Care and Daily Chemical Products

Containers for household cleaners, personal care products, and other daily-use goods may benefit from durable-looking integrated graphics and clearly presented product information. Resistance requirements should be evaluated against the actual contents, handling conditions, and applicable testing methods.

Industrial and Specialty Containers

Industrial packaging can require clear identification, legible instructions, and graphics that remain presentable during normal handling. Label material, substrate compatibility, surface exposure, and intended service conditions should be assessed before selecting a design.

Promotional and Premium Packaging

Brands seeking a distinctive presentation may investigate special colors, textures, metallic effects, or carefully controlled graphic layouts. The feasibility of a Skeleton IML concept should be confirmed through design review and, where necessary, a molding trial.

Important: These are potential application categories for IML technology, not a guarantee that every Skeleton IML construction is suitable for every container or molding method.

Material Compatibility and Mold Design Considerations

Material compatibility is one of the most important factors in successful IML production. Even a well-designed label can fail if its film, ink system, or surface characteristics do not suit the molding process.

Match the Label Film to the Plastic Substrate

Polypropylene is commonly used in IML applications, but not every product uses the same resin formulation. Buyers should provide the exact substrate information, including any recycled content, additives, or blends that may affect processing. The supplier and molder should jointly confirm compatibility.

Review Temperature and Processing Conditions

The label must tolerate the conditions experienced during molding. Material specifications should be reviewed against the actual process, rather than relying on general descriptions of heat resistance.

Check Label Thickness and Flexibility

Label thickness and stiffness can influence handling, positioning, and conformity to the mold surface. For intricate Skeleton IML designs, these factors may become especially important around narrow sections and complex contours.

Consider Mold Surface and Label Retention

The mold surface, cavity geometry, air evacuation, and label retention method all influence positioning. The best solution depends on the equipment and label design, so it should be validated by the manufacturing team.

Compare Common Decoration Methods

These methods serve different packaging requirements. The most appropriate choice depends on product shape, artwork, production volume, performance expectations, and total manufacturing cost.

Common Skeleton IML Production Challenges and Solutions

Label Misalignment

Possible causes: Inaccurate placement, inconsistent label dimensions, inadequate retention, or unsuitable handling settings.

Recommended response: Review label cutting accuracy, positioning references, mold conditions, and the placement system. Define a measurable alignment tolerance and confirm it through a representative trial.

Wrinkles or Surface Distortion

Possible causes: Incompatible material properties, unsuitable label geometry, uneven contact with the mold, or incorrect process conditions.

Recommended response: Examine the defect location, label stiffness, substrate compatibility, and molding parameters. Adjustments should be based on trial evidence rather than changing several process variables at once.

Color Variation

Possible causes: Printing variation, differences in substrate appearance, lighting conditions, or inconsistent inspection methods.

Recommended response: Approve a reference color sample, define the inspection lighting and measurement method, and establish acceptable tolerances before mass production.

Edge Defects on Intricate Designs

Possible causes: Difficult cutting geometry, narrow structural features, handling damage, or poor alignment between the label and mold.

Recommended response: Review the physical label drawing and cutting method. Where necessary, simplify fragile details or revise the design after consulting the supplier and molder.

Inconsistent Results Between Batches

Possible causes: Changes in raw materials, printing conditions, tooling, production settings, or inspection practices.

Recommended response: Maintain approved samples, document specifications, record production changes, and use an agreed inspection plan for repeat orders.

Quality Control and Inspection for Skeleton IML

Quality inspection should begin before mass production and continue through printing, label converting, molding, and finished-product assessment. The exact inspection plan depends on the customer's specifications and the product's intended use.

• Artwork verification: Confirm the approved file, dimensions, colors, orientation, and printed content.
• Label dimension checks: Inspect critical dimensions, cut edges, contours, and feature locations.
• Material verification: Confirm the specified film, thickness, and relevant technical documentation.
• Placement inspection: Check label position, alignment, coverage, and consistency with the reference sample.
• Appearance inspection: Look for wrinkles, bubbles, scratches, print defects, unwanted marks, and visible edge problems.
• Functional testing: Perform relevant tests according to the application, such as handling, exposure, or container performance checks.
• Batch consistency: Record inspection results and investigate repeated defects before releasing production.

For food packaging, chemical containers, or products sold in regulated markets, additional testing and documentation may be necessary. Requirements should be established according to the material system, product application, and destination market.

How to Choose a Reliable Skeleton IML Supplier

Supplier selection affects technical feasibility, print consistency, delivery planning, and the cost of managing production defects. A suitable partner should understand both the label itself and the conditions under which it will be used.

Review Relevant IML Experience

Ask about the supplier's experience with similar label structures, product shapes, printing requirements, and intended molding processes. Examples of comparable work can help establish whether the proposed design is practical.

Assess Printing and Converting Capabilities

Review the available printing methods, color capabilities, cutting accuracy, inspection procedures, and support for customized label dimensions. Confirm that the supplier can accommodate the project's actual specifications.

Check Technical Communication

A reliable supplier should be willing to review drawings, identify possible risks, clarify material requirements, and explain what must be tested before production. Clear technical communication is particularly important when the term Skeleton IML is being used for a project-specific design.

Clarify Sampling, MOQ, and Lead Time

Ask whether prototypes, printed samples, or molded trial samples are available. Confirm the minimum order quantity, tooling or development charges where applicable, production lead time, packing requirements, and delivery terms in writing.

Evaluate Documentation and Quality Systems

Request relevant material specifications, quality inspection records, and certificates applicable to the project. Verify what each document covers rather than assuming that a general factory certification automatically applies to every material or finished product.

Zhejiang Zhongyu Science and Technology Co., Ltd. is a manufacturer of in-mold labels, aluminum foil sealing film, and shrink labels. The company describes capabilities spanning raw material purchasing, prepress, printing, finishing, packaging, and transportation, as well as a range of production equipment and product applications.

For a Skeleton IML project, buyers can share their drawings, container details, artwork, and intended application with the company to discuss technical feasibility. The specific structure, available materials, trial requirements, and production terms should be confirmed directly before placing an order.

A Practical Purchasing Checklist Before Ordering Skeleton IML

Use this checklist to prepare a clear request for quotation and reduce avoidable misunderstandings during development.

• Define what Skeleton IML means for the proposed label design.
• Provide container drawings, dimensions, photographs, or a three-dimensional model.
• Identify the molding method and the actual plastic resin or substrate.
• Specify label material, thickness, printing requirements, and intended finish.
• Mark label boundaries, uncovered areas, narrow sections, and critical features.
• Provide artwork files and confirm color references and registration tolerances.
• Request a technical review and discuss any manufacturing risks.
• Confirm sample availability and whether a molded trial is necessary.
• Agree on quality criteria, inspection procedures, and the approval sample.
• Clarify order quantity, MOQ, tooling charges, packaging, lead time, and shipping terms.
• Obtain written confirmation of the approved specifications before mass production.

A detailed purchasing brief makes quotations easier to compare and helps the supplier identify potential issues before production begins. It also creates a useful reference for repeat orders and future packaging revisions.
